3.8.6 PM-9 Wiring Diagram

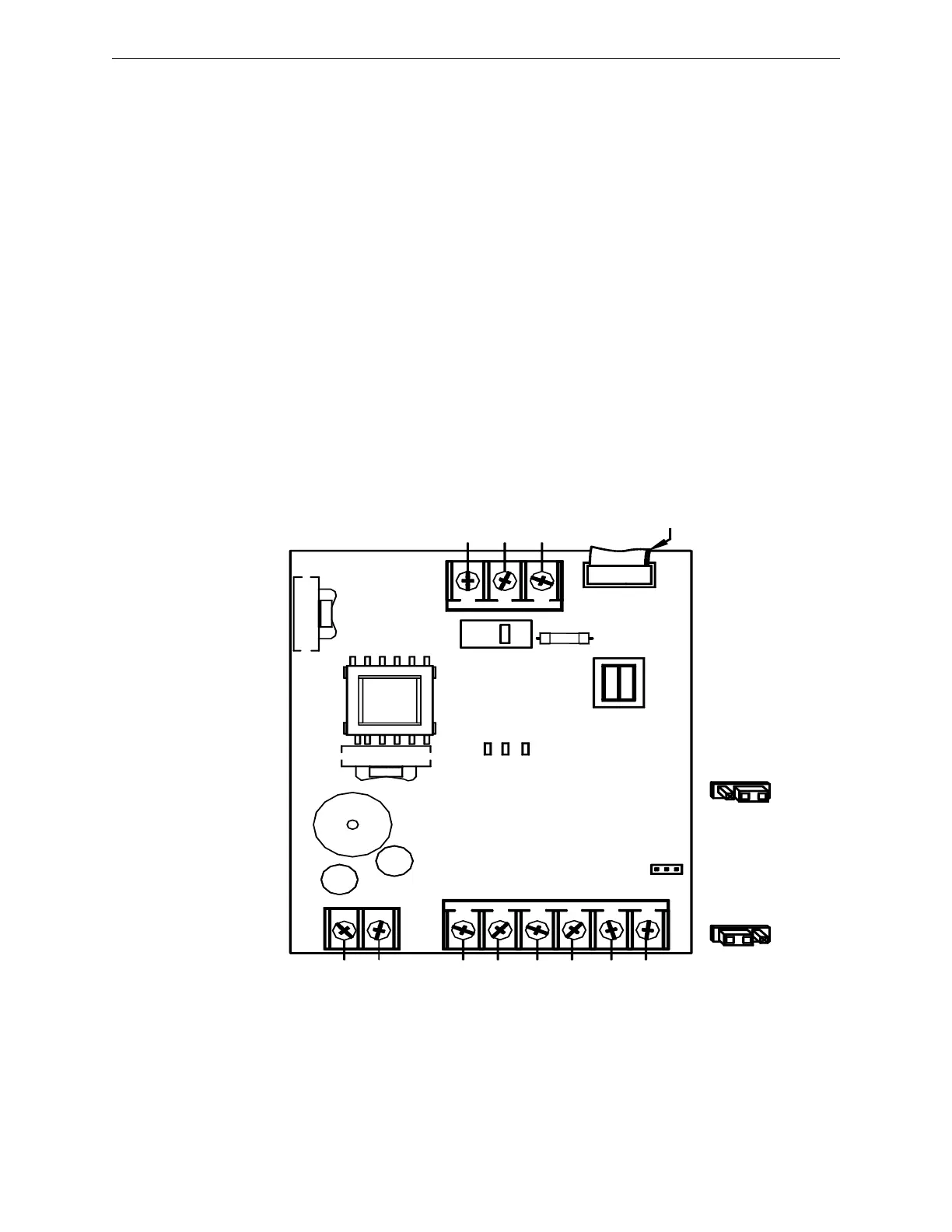

Figure 3.8.6.1 illustrates the wiring diagram for the PM-9 sub-assembly.
Figure 3.8.6.1 PM-9 Wiring Diagram
JMP1
TB 3
BATT+
BATT-
TB4
24VO UTG N D 24VOU T G N D 24VO U TG ND
L2
J1
1
2
9
10
TB 1
HO T/BLKGN D/G RNNEU T/W H T
C12

L1
D6
T1
Q1
55 AH BATTERIES
MAXIMUM
(NON-PWR LIMITED)
BACKUP BATTERY (+) POS BACKUP BATTERY (-) NEG
EXTERNAL POWER OUTPUT 24VDC (+) EXTERNAL POWER OUTPUT GND (-) EXTERNAL POWER OUTPUT 24VDC (+) EXTERNAL POWER OUTPUT GND (-) EXTERNAL POWER OUTPUT 24VDC (+) EXTERNAL POWER OUTPUT GND (-) 24VDC @ 9 AMPS FROM ANY EXT. PWR OUTPUT 9 AMPS TOTAL FROM PM-9 (NON-PWR-LIMITED)






120VAC NEUTRAL (WHITE)
NOTE 4: DISABLE THE GROUND FAULT DETECTION CIRCUIT WHEN THE PM-9 IS CONNECTED BY A RIBBON CABLE TO AN ILI- MB-E3, ILI95-MB-E3 OR AN ANX.
GROUND (GREEN) 120VAC HOT (BLACK)
TO ILI-MB-E3/ILI95-MB-E3/ ANX J1 CONNECTOR OR INI-VG J4 CONNECTOR
PIN1
   
D2 D4
D3
GREEN LED
BATTERY FAULT YELLOW LED
GROUND FAULT YELLOW LED
AC POWER
+
+
6
7
1
12
NOTE 3: CONNECTION MUST BE TO A DEDICATED BRANCH CIRCUIT
AND MECHANICALLY PROTECTED.
ALL MEANS OF DISCONNECTING THIS CIRCUIT MUST BE CLEARLY MARKED “FIRE ALARM CONTROL” AND BE ACCESSIBLE TO AUTHORIZED PERSONNEL ONLY (NON-PWR LIMITED).
   
NOTE1: EITHER CB1 OR F1 ARE OPTIONAL FORMS OF AC POWER PROTECTION.
See Note 1:
CB1
CB
