Cabinets Installation
2.5.1.1 Cabinet A1, Backbox Installation
1. Prepare the mounting site by pre-drilling four (4), #10 screws using the dimensions shown in
the figure below. Use four (4), #10 screws.
2. To mount the backbox, secure with two (2), #10 screws in the two-hole mounting pattern as
shown in Locations 1 and 2 of the figure below.
3. Set the backbox over the top, two-hole mounting pattern, and hang the backbox over the two
screw heads.
4. Insert and secure two (2), #10 screws in the two-hole mounting pattern as shown in Locations
3 and 4 of the figure below.

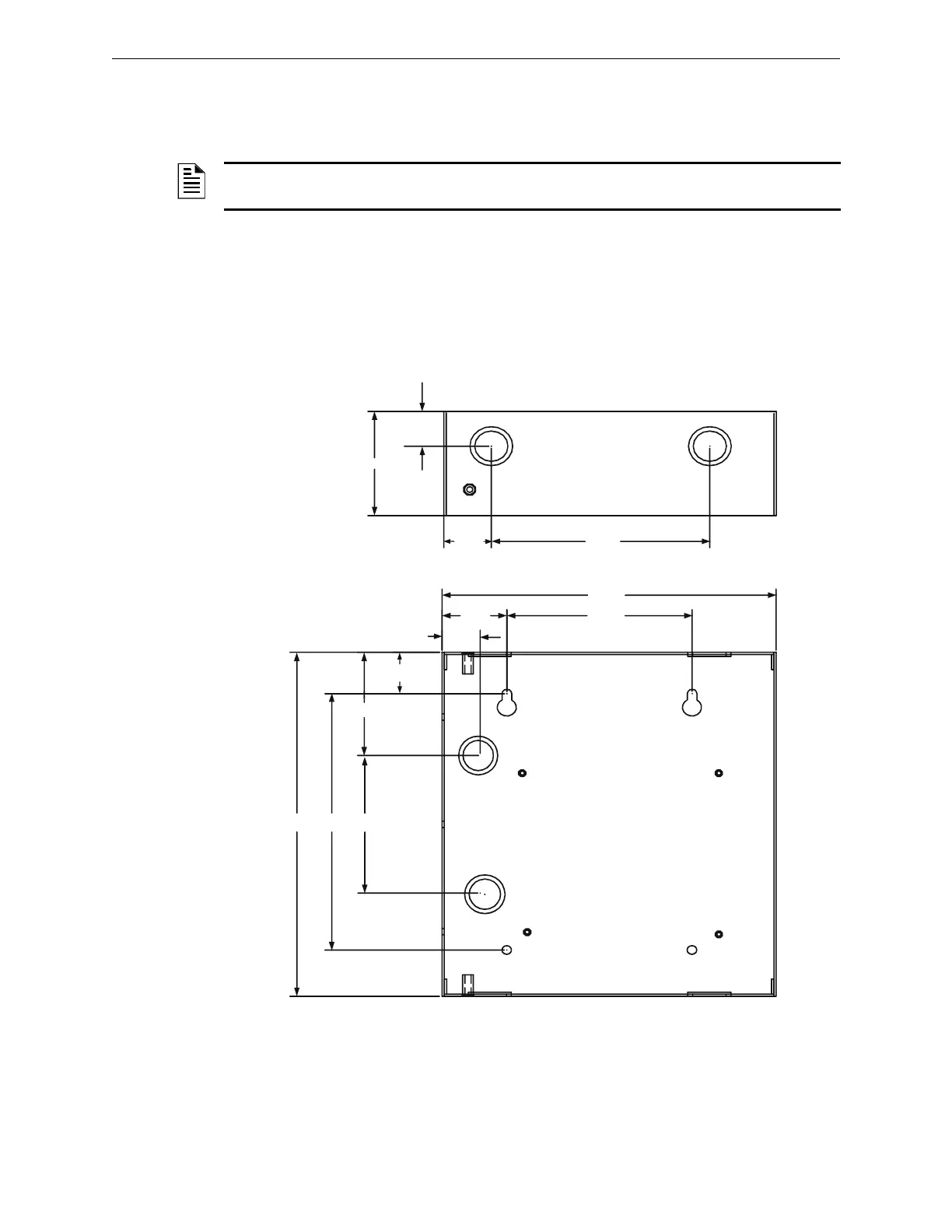

Figure 2.5.1.1.1 Cabinet A1, Backbox Installation
NOTE: If the fasteners are anchored to wallboard, use #10 wall anchors. Mountings to concrete
walls should be backed by plywood to insulate the equipment from possible condensation.
.875"
3.00"
1.25"
5.75"
BACKBOX TOP
8.75"
4.85"1.70"
1.00"
1.20"
3.00"
4.00"7.46"10.00"
BACKBOX
1 2
3 4
