2.5.5.2 Cabinet A or AA, 3-Bay, Inner Door Installation
1. Mount the two (2), ASM-16 sub-assemblies on the inner door and secure with eight (8), #6-32
nuts in each of the two (2), four-hole mounting patterns as shown in Locations 1 and 3 of the
figure below.
2. Mount the sub-assembly on the inner door and secure with four (4), #6-32 nuts in the four-hole
mounting pattern as shown in Location 2 of the figure below.
3. Secure the opposite end of the bonding wire to the welded #6 stud on the inner side of the inner
door using the #6 nut as shown in Location 4 of the figure below.
4. After the panel is wired, use the thumbscrews to secure the inner door to the backbox as shown
in Location 5 of the figure below.

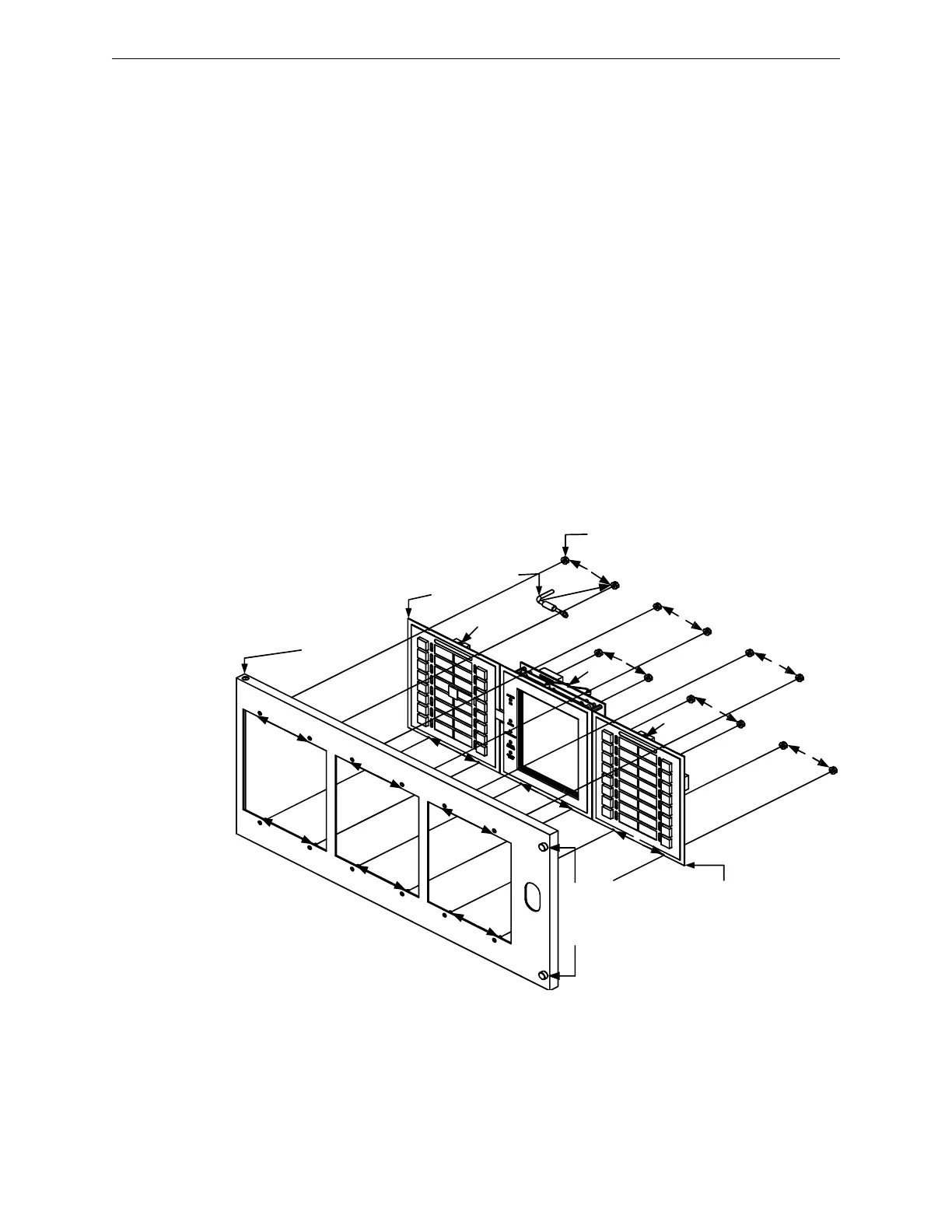

Figure 2.5.5.2.1 Cabinet A or AA, 3-Bay Inner Door Installation
NUT, HEX,
(#6-32")
12 PLACES
BONDING
WIRE
CABINET A, 3-BAY,
INNER DOOR
ASM-16
ASM-16
NGA
2
1
1
2
3
3
1
2
3
1
2
3
1
3
1
2
2
3
THUMBSCREWS
TO SECURE THE
INNER DOOR TO
THE BACKBOX
5
5
4
4
