E3 Series Installation/Operation Manual — P/N 9000-0574:I 11/04/10 51
Cabinets Installation
2.5.6.6 Cabinet B, Inner Door Installation
1. Mount the LCD-E3 keypad on the inner door and secure with eight (8), #6-32 nuts in the eight-
hole mounting pattern as shown in Location 1 of the figure below.
2. Mount the ASM-16 on the inner door and secure with four (4), #6-32 nuts in the four-hole
mounting pattern as shown in Location 2 of the figure below.
3. Secure the opposite end of the bonding wire to the welded #6 stud on the inner side of the inner
door using the #6 nut as shown in Location 3 of the figure below.
4. After the panel is wired, use the thumbscrews to secure the inner door to the backbox as shown
in Location 4 of the figure below.

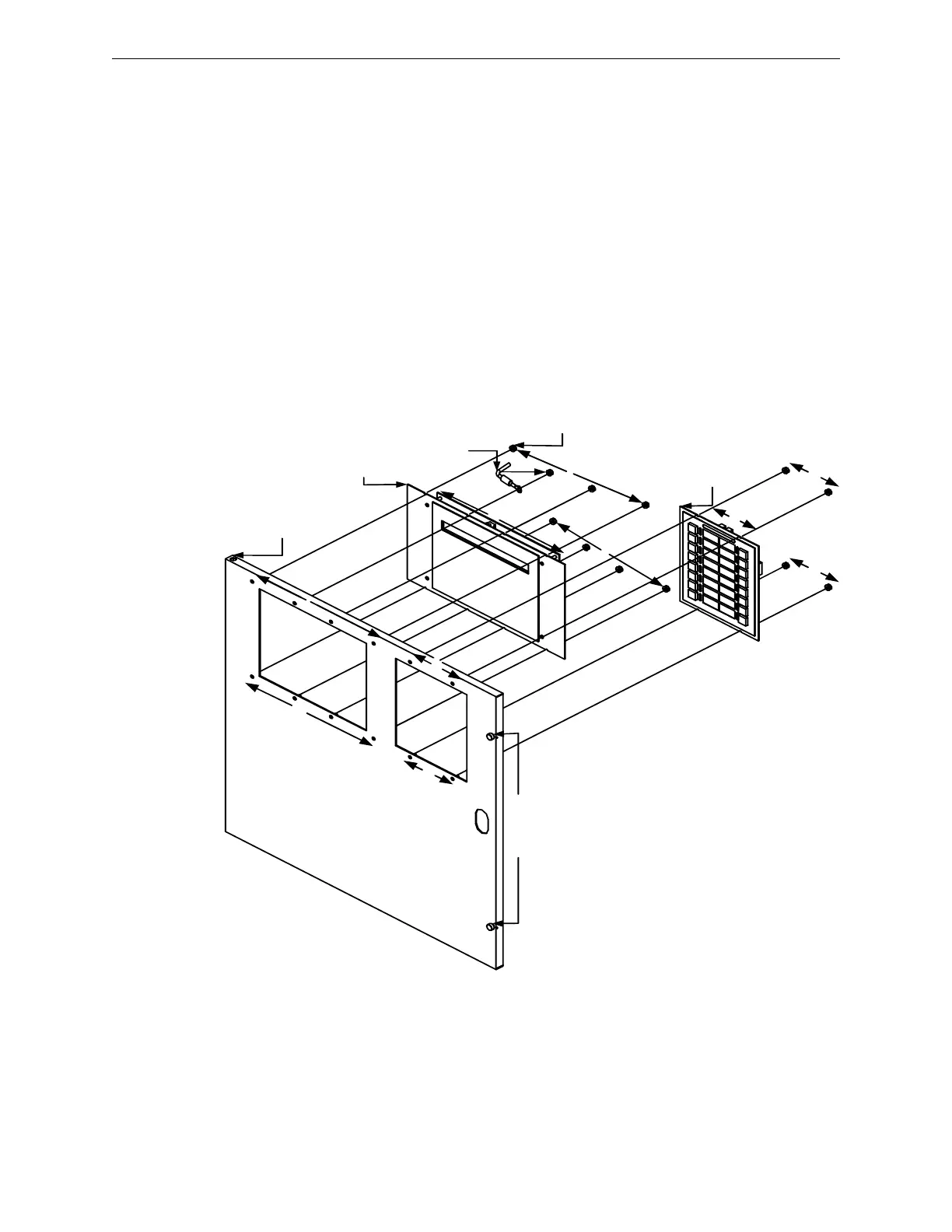

Figure 2.5.6.6.1 Cabinet B, Inner Door Installation
LCD-E3
KEYPAD
ASM-16
CABINET B,
INNER DOOR
2
2
1
2
1
2
NUT, HEX
(#6-32)
12 PLACES
1
1
1
2
BONDING
WIRE
3
3
THUMBSCREWS
TO SECURE THE
INNER DOOR TO
THE BACKBOX
4
4
