Installation Cabinets
2.5.10.7 Cabinet D, 13-Bay Inner Door to the Backbox Installation
1. Place the nylon spacer (.625 x .312) over the backbox, bottom hinge pin as shown in Location
1 of the figure below.
2. Mount the 13-bay inner door to the backbox by sliding the inner door top hinge pin onto the
backbox top hinge pin hole as shown in Location 2 of the figure below.
3. Align the inner door bottom hinge pin hole with the backbox bottom hinge pin.
4. Slide the inner door over the inner door bottom hinge pin hole on top of the nylon spacer, and
secure using the #8 x .5” screw as shown in Location 2 of the figure below.
NOTE: The 13-bay or 14-bay inner door is optional.
5. After the inner door is secured in place, attach one end of the bonding wire to the top hinge pin
using the #8 x .5” screw as shown in Location 3 of the figure below.
NOTE: For information on the installation of the opposite end of the bonding wire, see Section
2.5.10.8, Step 7 and Location 7 of Figure 2.5.10.8.1.

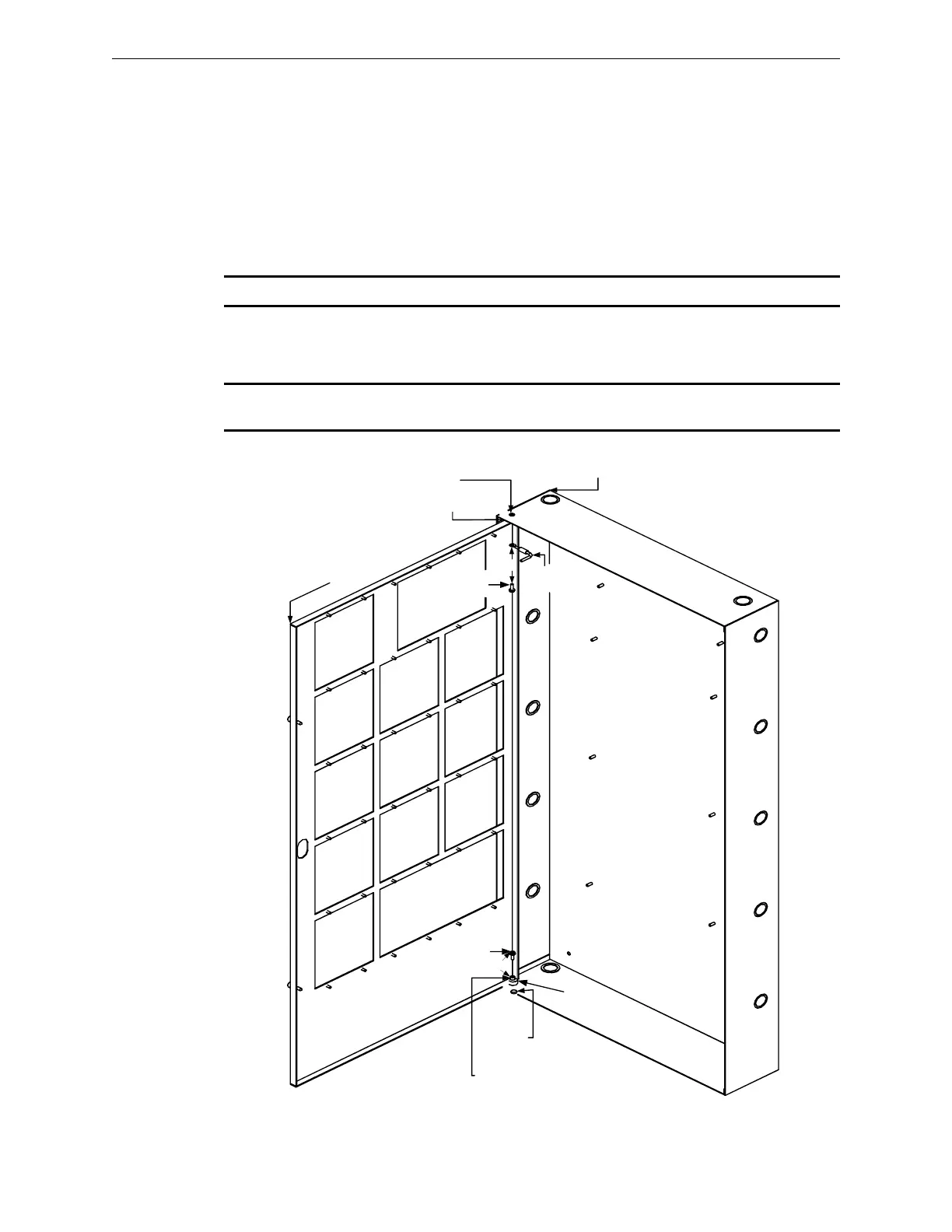

Figure 2.5.10.7.1 Cabinet D, 13-Bay Inner Door to the Backbox Installation
CABINET D,
BACKBOX
BACKBOX TOP
HINGE PIN
INNER DOOR TOP
HINGE PIN HOLE
CABINET D, 13-BAY
INNER DOOR
N
Y
L
O
N
S
P
A
C
E
R
.
6
2
5
x
.
3
1
2
BACKBOX
BOTTOM
HINGE PIN
INNER DOOR
BOTTOM
HINGE PIN HOLE
BONDING
WIRE
SCREW,
#8 x .5"
SCREW,
#8 x .5"
1
3
2
2
3
2
