E3 Series Installation/Operation Manual — P/N 9000-0574:I 11/04/10 97
ILI-MB-E3 and ILI95-MB-E3 Connections E3 Series System Connections
3.1.4 Notification Appliance Circuits

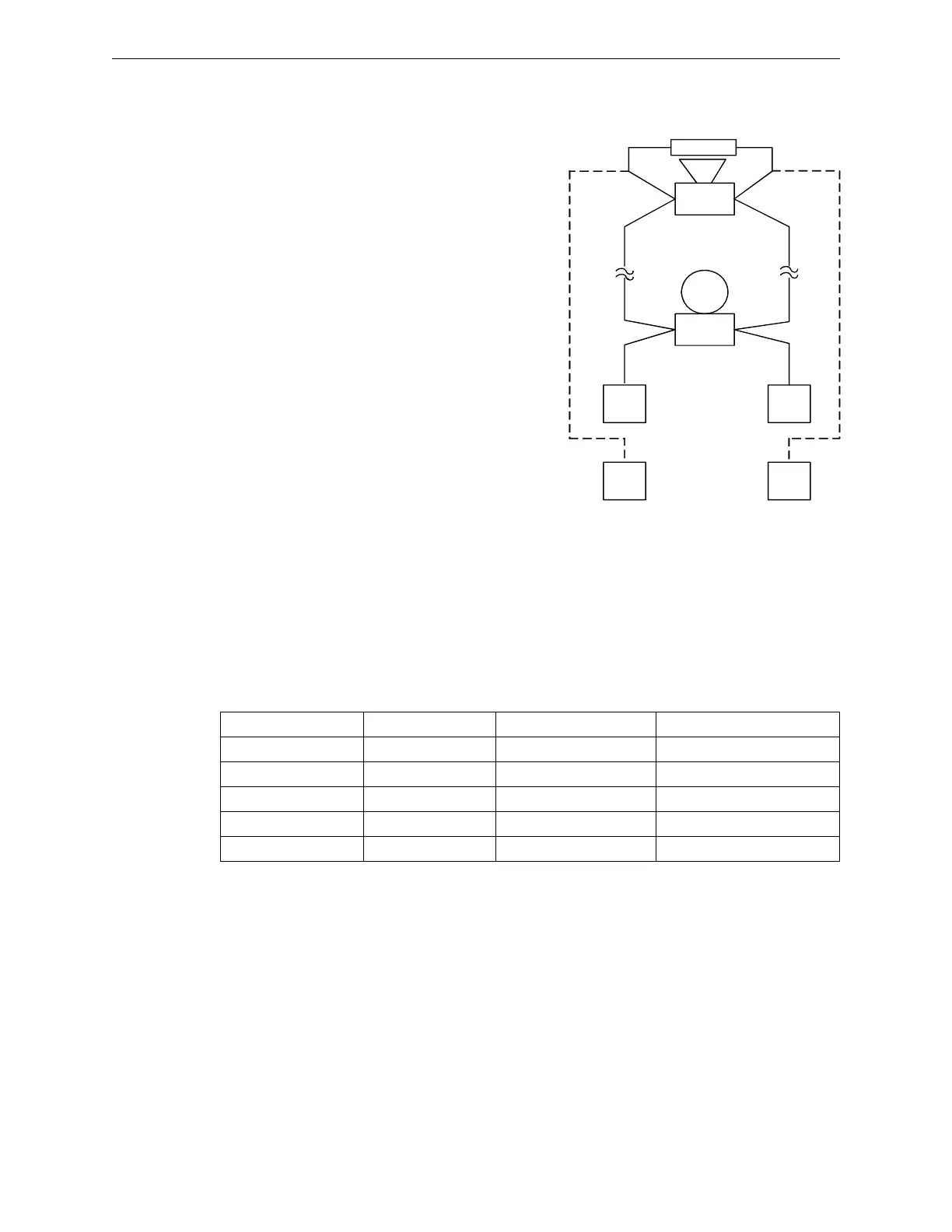

Figure 3.1.4.1 Notification Appliance
Circuits
3.1.5 ILI-MB-E3 and ILI95-MB-E3 Outputs
The ILI-MB-E3 or ILI95-MB-E3 provides output for a Local Energy City Master Box, reversing
polarity output for leased line connection, or Releasing Service.
3.1.6 ILI-MB-E3 and ILI95-MB-E3 Specifications
The following lists the electrical specifications for the ILI-MB-E3 and ILI95-MB-E3.
The ILI-MB-E3 or ILI95-MB-E3 provides two (2), 24
VDC Class A, Style Z or Class B, Style Y notification
appliance circuits. See Figure 3.1.4.1 for wiring
information. See the Compatibility Addendum,
P/N: 9000-0427, for a list of approved compatible
devices.
Wiring Instructions:
NAC 1 – Style Y TB2-1 (+), TB2-2 ( - )
NAC 2 – Style Y TB2-5 (+), TB2-6 ( - )
NAC 1 – Style Z TB2-1 out, TB2-3 return
NAC 2 – Style Z TB2-5 out, TB2-7 return
TB2-6 out, TB2-8 return
(Polarity markings indicate the polarity of the circuit in
alarm condition). Use UL Listed End of Line Resistor
EOL-N (33K), P/N 4700-0484 for Class B, Style Y
wiring.
Circuit Ratings:
24 VDC (Nom.) FWR
Max. alarm load: - 2.0 amp/circuit
Ground fault test impedance: Zero ohms
Supervised - Power-limited
18 AWG minimum
MDL3 Series Synchronization Modules must be
connected. Special application: See Compatibility
Addendum, P/N 9000-0427 for a list of Gamewell-FCI
approved, UL Listed notification appliances.
Ratings Master Box (NPL) Polarity Reversal (PL) Releasing Service
Nominal Voltage 24 VDC 24 VDC 24 VDC
Supervisory Current: .0018 amp .012 amp .0005 amp
Alarm Current: .510 amp (max.) .012 amp .700 amp
Line Resistance 35 Ohms (max.) 2 Ohms (max.)
Trip Coil Resistance 14.5 Ohms (max.)
Table 3.1.5.1 ILI-MB-E3 and ILI95-MB-E3 Outputs
Specifications ILI-MB-E3 ILI95-MB-E3
Operating Voltage: 24 VDC (from PM-9/PM-9G
power supply)
24 VDC (from PM-9/PM-9G
power supply)
Operating Current: 0.081 amp 0.050 amp
Alarm Current: 0.150 amp 0.091 amp
Operating Temperature: 32° to 120° F (0° to 49° C) 32° to 120° F (0° to 49° C)
Relative Humidity: 0 to 93% non-condensing at 90° F
(32° C)
0 to 93% non-condensing at 90° F
(32° C)
Supervised
Power-limited
EOL
ILI-MB-E3/
ILI95-MB-E3
B (-)
A (-)
A (+)
B (+)
- +
- +
DOTTED LINES INDICATE CLASS A,
STYLE Z WIRING. REMOVE EOL
FOR CLASS A, STYLE Z
OPERATION
