Intelligent Loop Interface XP95-Main Board Connections E3 Series System Connections
3.3.2 ILI95-MB-E3 Wiring Diagram

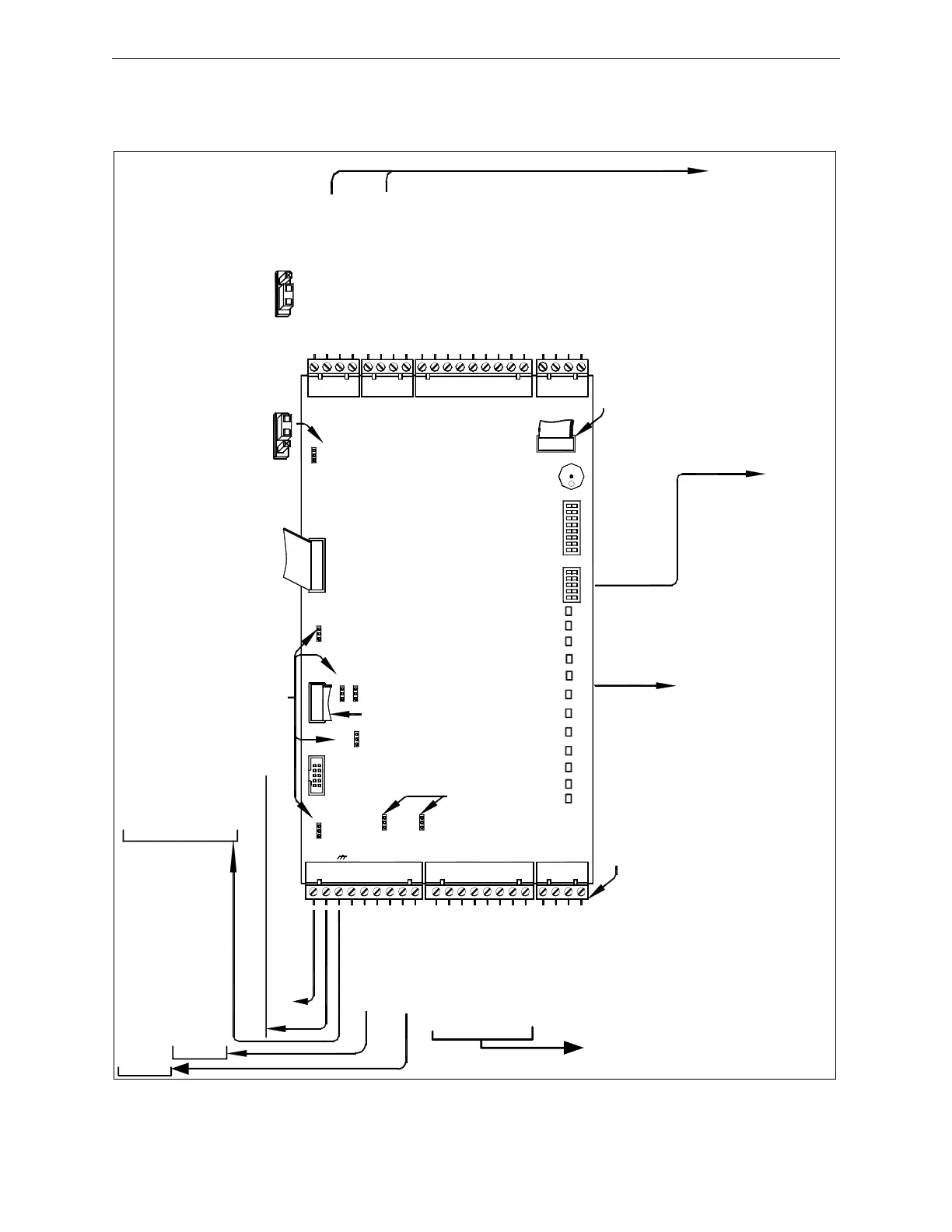

Figure 3.3.2.1 illustrates the field wiring connections for the ILI95-MB-E3.
Figure 3.3.2.1 ILI95-MB-E3 Wiring Diagram
1 2 3
4
NOTE: IF ONLY ONE SLC IS
USED STYLE 6 (CLASS "A")
THE UNUSED SLC TERMINALS
MUST BE JUMPERED STYLE 6
TO PREVENT LOOP FAULT
DOWNLOAD CABLE
P/N: 75267
PM-9/PM-9GTO
CONNECTOR J1
TB6-4 RXD TO PIN 3 OF DB9
TB6-3 SUPV TO PIN 9 OF DB9
TB6-2 TXD TO PIN 2 OF DB9
TB6-1 GND TO PIN 5 OF DB9
SET FOR MUNICIPAL CKT/RELEASE OR
REVERSE POLARITY OUTPUT
MB = MUNICIPAL CKT/RELEASE
(MIDDLE & LEFT PINS OF W7 & W8)
PR = REVERSE POLARITY
(MIDDLE & RIGHT PINS OF W7 & W8)
USE CABLE P/N: 75645 (20") TO
CONNECT TO J5 SOCKET OF NEXT
ILI95-MB-E3 PCB, ILI95-S-E3 OR ANX
PCB IN SAME CABINET (UP TO 8
ILI95-E3 SERIES PCBS OR ANX MOUNTED
IN SAME CABINET CAN BE CONNECTED)
LED1 = REC (NETWORK RECONFIGURATION)
LED2 = MRC (NETWORK RECONFIGURATION ORIGINATING FROM THIS NODE)
LED3 = DUP (NODE'S NETWORK ADRESS IS DUPLICATED AT ANOTHER NODE)
LED4 = TX (NODE IS TRANSMITTING DATA TO THE NETWORK)
LED5 = RX (NODE IS RECEIVING DATA FROM THE NETWORK)
LED6 = RST (NODE IS RESETTING)
LED7 = DG (GENERAL NETWORK FAULT)
LED8 = ALRM (ALARM CONDITION)
LED9 = SUPV (SUPERVISORY OFF-NORMAL)
LED10 = TRBL (TROUBLE CONDITION)
LED12 = GND FLT (GROUND FAULT)
ALL RELAYS RATED
AT 2.0 AMPS @ 30 VDC
RESISTIVE
NOTE: TROUBLE DRY
RELAYS CONTACTS
TRANSFER UPON ALARM,
SUPERVISORY, TROUBLE
OR SYSTEM POWER LOSS
TB3
W5
ON
TB4
TB7
TB5
TB6
LEAVE W1, W2, W3,
W4 & W5 OPEN
TO RPT-E3
ARCNET
CONNECTOR
J10
TO: LCD-E3 TB1-4, ASM-16 TB1-1,
ANU-48 TB1-1, LCD-7100 TB1-2, DACT-E3 TB1-1
TO: LCD-E3 TB1-3, ASM-16 TB1-2,
ANU-48 TB1-2, LCD-7100 TB1-1, DACT-E3 TB1-2
2.0 AMPS MAX. OUT OF EACH
EXT PWR OUTPUT. NOTE:
DO NOT EXCEED 2.5 AMPS TOTAL
BOTH OUTPUTS COMBINED
PM-9/PM-9G, GND (-)
NOTE: POWER CONNECTION
FROM PM-9/PM-9G IS
NON-POWER LIMITED
GROUND FAULT
DETECTION ENABLED
(MIDDLE TO RIGHT PIN)
GROUND FAULT
DETECTION DISABLED
(MIDDLE TO LEFT PIN)
+
12
J1
9
10
ARCNET ADDRESS
SW1
1
235 468 7
TB1
TB2
485A 485B RB+ GND AB+ GND MU+ MU-
MB PR
W7
MB
PR
W8
J2
1
2
10
9
J4
2
1
16
15
RS232 PORT: 15 VDC MAXIMUM
0.05 AMP MAXIMUM
UP TO 115.2 K BAUD (DEFAULT)
8 DATA BITS, 1 STOP BIT,
NO PARITY
USE SWITCH SW1 TO
SET ILI95-MB-E3 PCB
NETWORK ADDRESS (1 - 64)
SET TO 0 (ZERO) FOR
STANDALONE MODE
SW2
1 2 3 4 5
ENA
GFLT
DIS
W9
AUX TERM
OFF
ON
USE
FACTORY
W1
BSEL
W3
BSEL
W2
ARCNET
TERM
OFF
W4
ON
J5
10
9
2
1
PM-9/PM-9G, +24VDC (+)
OPT. MOD. (+)
OPT. MOD. (-)
87651 2 3 4
432
1
5 6 7
8 9
MUNICIPAL CKT (-)
MUNICIPAL CKT (+)
NON-RESET PWR OUT
SYSTEM GROUND
SYSTEM GROUND
RESETTABLE PWR OUT
UNSUPERVISED & NON POWER- LIMITED
WHEN SET FOR MUNICIPAL CKT.
UNSUPERVISED WHEN SET FOR
REVERSE POLARITY
4 3 2 11234 4 3 2 1 9 8 7 6 5 1234
SLC1 CLASS "B", STYLE 4 (+)
SLC1 CLASS "B", STYLE 4 (-)
SLC1 CLASS "A", STYLE 6 (-)
SLC1 CLASS "A", STYLE 6 (+)
SLC2 CLASS "A", STYLE 6 (+)
SLC2 CLASS "A", STYLE 6 (-)
SLC2 CLASS "B", STYLE 4 (-)
SLC2 CLASS "B", STYLE 4 (+)
TROUBLE COMMON
TROUBLE NORMALLY OPEN
TROUBLE NORMALLY CLOSED
SUPV NORMALLY CLOSED
SUPV NORMALLY OPEN
SUPV COMMON
ALARM COMMON
ALARM NORMALLY OPEN
ALARM NORMALLY CLOSED
LED
9
LED
8
LED
7
LED
6
LED
5
LED
4
LED
3
LED
2
LED
1
LED11 = PWR (DC POWER GOOD)
NOTE: NAC1 AND NAC2 ARE RATED AS SPECIAL APPLICATION.
NOTE:
NAC1 & NAC2
TYPICAL STYLE Y
CLASS "B" NAC,
USE 33KOHM,
1/2 W EOL RESISTOR
- OR -
TYPICAL STYLE Z
CLASS "A" NAC,
NO EOL RESISTOR
REQUIRED
NAC RATINGS (EACH):
24VDC (NOMINAL) FWR
MAX. ALARM LOAD:
2.0 AMPS PER CKT
SUPERVISED &
POWER-LIMITED
18 AWG WIRE MIN.
SLC WIRE SELECTION:
UNSHIELDED, TWISTED-PAIR
18 AWG MIN. 40 OHMS MAX. WIRE
RESISTANCE PER LOOP
PER LOOP
SW2 POS 3 ON = NAC1 & 2 DISABLED (OFF = NAC1 & 2 ENABLED)
SW2 POS 1 ON = SL1 DISABLED (OFF = SLC1 ENABLED)
SW2 POS 2 ON = SL2 DISABLED (OFF = SLC2 ENABLED)
SW2 POS 4 ON = BUZZER DISABLED (OFF = BUZZER ENABLED)
SW2 POS 5 ON = RS232 115.2K BAUD (OFF = DEFINED BY CAMWorks)
CONNECT TO EARTH GROUND PER ARTICLE 780
OF THE NATIONAL ELECTRICAL CODE. FAILURE
TO CONNECT TO A METALLIC GROUND WATER
PIPE OR GROUND DRIVEN ROD WILL RESULT IN
LOSS OF LIGHTNING PROTECTION, REDUCED
PROTECTION AGAINST TRANSIENTS AND COULD
ADVERSELY AFFECT PROPER SYSTEM OPERATION.
PANEL NEUTRAL OR CONDUIT GROUND IS NOT
ACCEPTABLE. USE 14 AWG WIRE MINIMUM.
DISABLE GROUND FAULT DETECTION CIRCUIT:
1. ON THE PM-9/PM-9G WHEN LOCATED IN THE SAME
CABINET WITH A SINGLE ILI95-MB-E3 PCB.
