Intelligent Loop Interface - Slave Board (ILI-S-E3) Connections E3 Series System Connections
3.4.4 ILI-S-E3 Wiring Diagram

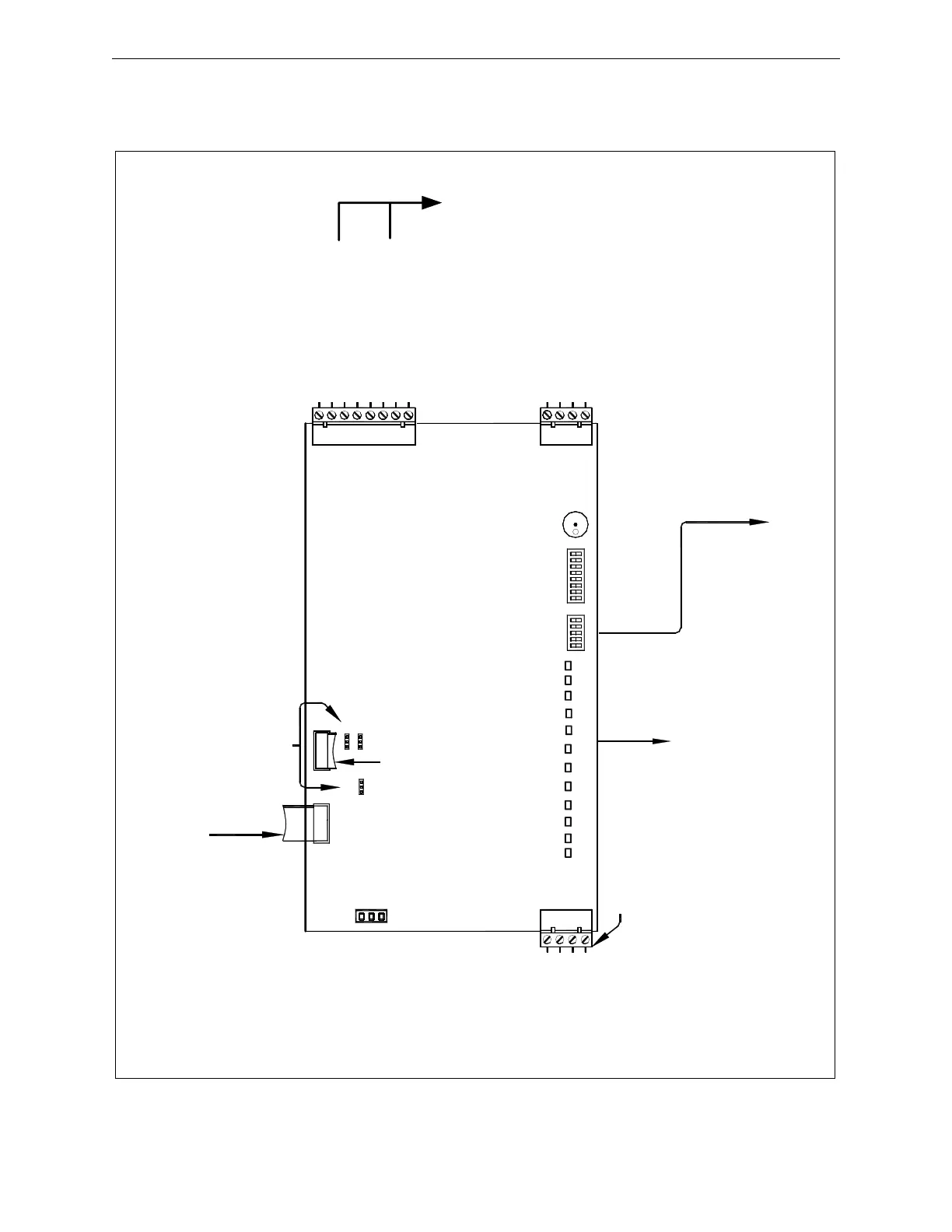

Figure 3.4.4.1 illustrates the field wiring connections for the ILI-S-E3 sub-assembly.
Figure 3.4.4.1 ILI-S-E3 Wiring Diagram
+
ARCNET ADDRESS
SW1
1235 468 7
TB1
J2
1
2
10
9
RS232 PORT: 15 VDC MAXIMUM
0.05 AMP MAXIMUM
UP TO 115.2 K BAUD (DEFAULT)
8 DATA BITS, 1 STOP BIT, NO PARITY
USE SWITCH SW1 TO
SET ILI-S-E3 PCB
NETWORK ADDRESS (1 - 64)
SW2
1 2 3 4
5
USE
FACTORY
W1
BSEL
W3
BSEL
W2
J5
10
9
2
1
1 2 3 4
ON
TB4
TB6
PM-9/PM-9G, GND (-)
NOTE: POWER CONNECTION
FROM PM-9/PM-9G IS
NON POWER-LIMITED
NOTE: IF ONLY ONE SLC IS
USED STYLE 6 (CLASS "A")
THE UNUSED SLC TERMINALS
MUST BE JUMPERED STYLE 6
TO PREVENT LOOP FAULT
DOWNLOAD CABLE
P/N: 75267
TB6-4 RXD TO PIN 3 OF DB9
TB6-3 SUPV TO PIN 9 OF DB9
TB6-2 TXD TO PIN 2 OF DB9
TB6-1 GND TO PIN 5 OF DB9
SW2 POS 1 ON = SL1 DISABLED (OFF = SLC1 ENABLED)
SW2 POS 2 ON = SL2 DISABLED (OFF = SLC2 ENABLED)
SW2 POS 3 ON = UNUSED
SW2 POS 4 ON = BUZZER DISABLED (OFF = BUZZER ENABLED)
SW2 POS 5 ON = RS232 115.2K BAUD (OFF = DEFINED BY CamWorks)
GND
LED1 = REC (NETWORK RECONFIGURATION)
LED2 = MRC (NETWORK RECONFIGURATION ORIGINATING FROM THIS NODE)
LED3 = DUP (NODE'S NETWORK ADRESS IS DUPLICATED AT ANOTHER NODE)
LED4 = TX (NODE IS TRANSMITTING DATA TO THE NETWORK)
LED5 = RX (NODE IS RECEIVING DATA FROM THE NETWORK)
LED6 = RST (NODE IS RESETTING)
LED7 = DG (GENERAL NETWORK FAULT)
LED8 = ALRM (ALARM CONDITION)
LED9 = SUPV (SUPERVISORY OFF-NORMAL)
LED10 = TRBL (TROUBLE CONDITION)
LED12 = GND FLT (GROUND FAULT)
+24VDC
GND
+24VDC
OPT. MOD. (+)
OPT. MOD. (-)
4 3 2 15678 4 3 2 1
SLC1 CLASS "B", STYLE 4 (+)
SLC1 CLASS "B", STYLE 4 (-)
SLC1 CLASS "A", STYLE 6 (-)
SLC1 CLASS "A", STYLE 6 (+)
SLC2 CLASS "A", STYLE 6 (+)
SLC2 CLASS "A", STYLE 6 (-)
SLC2 CLASS "B", STYLE 4 (-)
SLC2 CLASS "B", STYLE 4 (+)
LED
9
LED
8
LED
7
LED
6
LED
5
LED
4
LED
3
LED
2
LED
1
REC
GND
FLT
USE CABLE P/N: 75802 (20") TO
CONNECT TO J2 SOCKET OF THE
PREVIOUS ILI-MB-E3 PCB, ILI95-S-E3
PCB OR ANX IN THE SAME CABINET.
(UP TO 8 ILI-E3 SERIES PCBS OR
ANXS CAN BE MOUNTED IN THE
SAME CABINET.
USE CABLE P/N: 75645 (20") TO
CONNECT TO J5 SOCKET OF THE
NEXT ILI-MB-E3 PCB, ILI-S-E3 PCB
OR ANX IN THE SAME CABINET.
(UP TO 8 ILI-E3 SERIES PCBS OR
ANXS CAN BE MOUNTED IN THE
SAME CABINET.
LED11 = PWR (DC POWER GOOD)
SLC WIRE SELECTION:
UNSHIELDED, TWISTED-PAIR
18 AWG MIN. 40 OHMS MAX. WIRE
RESISTANCE PER LOOP
0.5 µF MAX. CAPACITANCE PER LOOP
LEAVE W1,
W2, W3 OPEN
FACTORY USE
OFF
ON
W4
ARCNET
TERMINAL
