Installation Cabinets
2.5.7.5 B-Slim-E3 Sub-Assembly Plate to Backbox Installation
Mount the B-Slim-E3 sub-assembly plate on the studs in the backbox and secure with four (4),
(#8-32) screws as shown in Locations 1 thru 4 of the figure below.

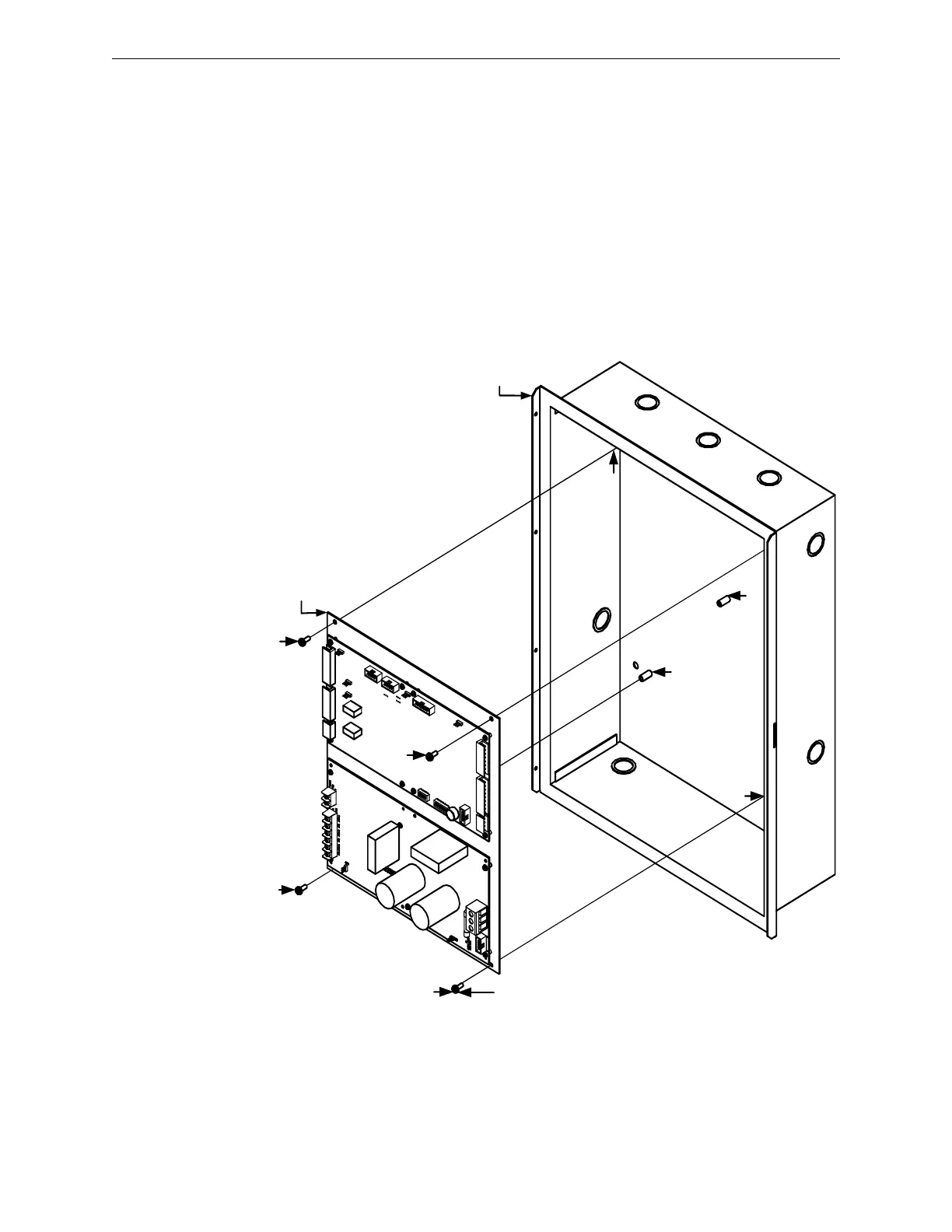

Figure 2.5.7.5.1 B-Slim-E3 Sub-Assembly Plate to Backbox Installation
B-SLIM CABINET
BACKBOX






















P
M
-
9
/
P
M
-
9
G
1
2
3
4
1
2
3
4
SCREW, #8-32
4 PLACES
