Honeywell Gamewell-FCI E3 Series - 2: Intelligent Loop Interface XP95-Slave Board Sub-Assembly

E3 Series Installation/Operation Manual — P/N 9000-0574:I 11/04/10 111
Intelligent Loop Interface XP95-Slave Board Connections E3 Series System Connections
3.5.2 Intelligent Loop Interface XP95-Slave Board Sub-Assembly
Figure 3.5.2.1 and Figure 3.5.2.2 illustrate the Intelligent Loop Interface XP95 - Slave Board
(ILI95-S-E3) sub-assembly.

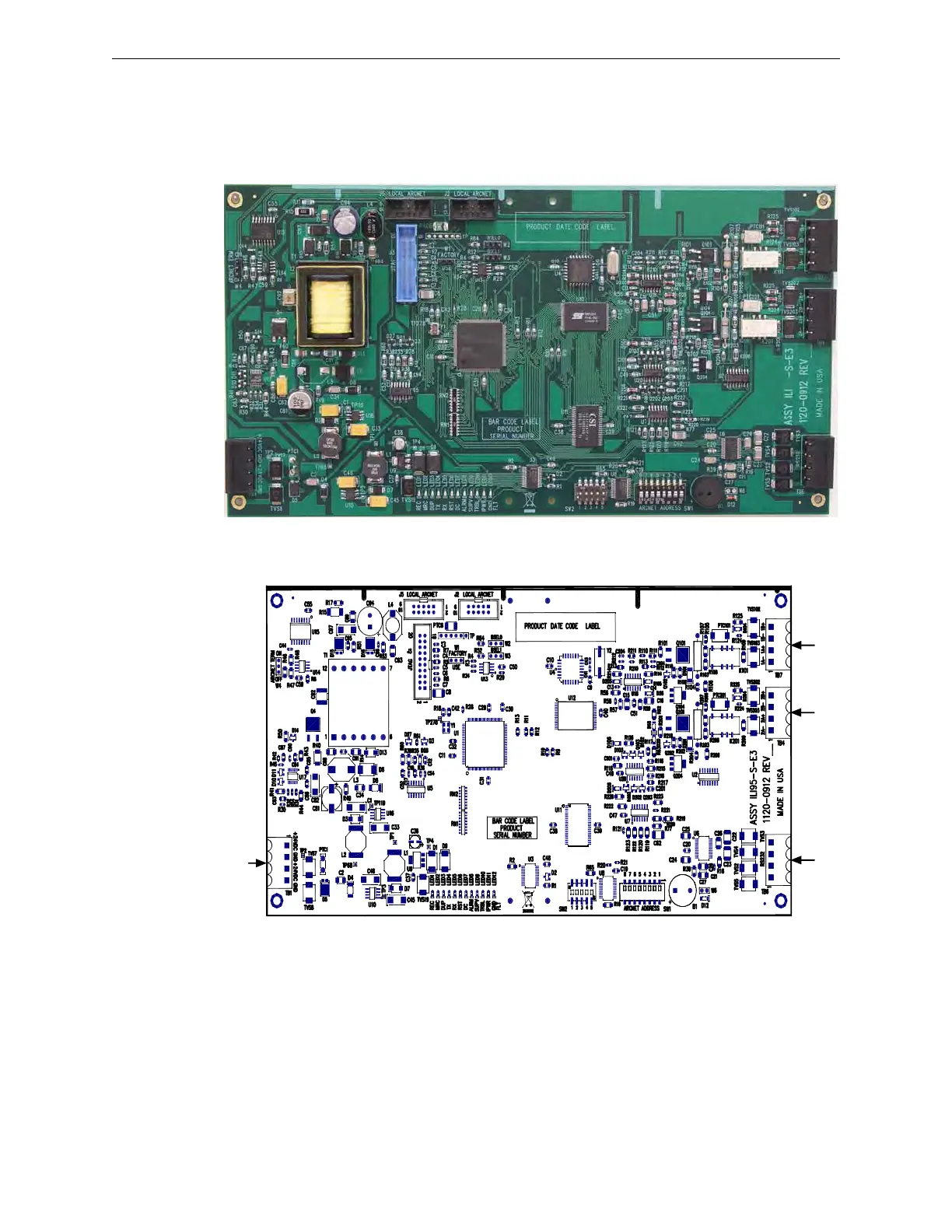

Figure 3.5.2.1 ILI95-S-E3 Signaling Line Circuit Sub-Assembly
Figure 3.5.2.2 ILI95-S-E3 Signaling Line Circuit Sub-Assembly
TB4
TB7
TB6
TB1
