E3 Series Installation/Operation Manual — P/N 9000-0574:I 11/04/10 127
Addressable Node Expander (ANX) Connections E3 Series System Connections

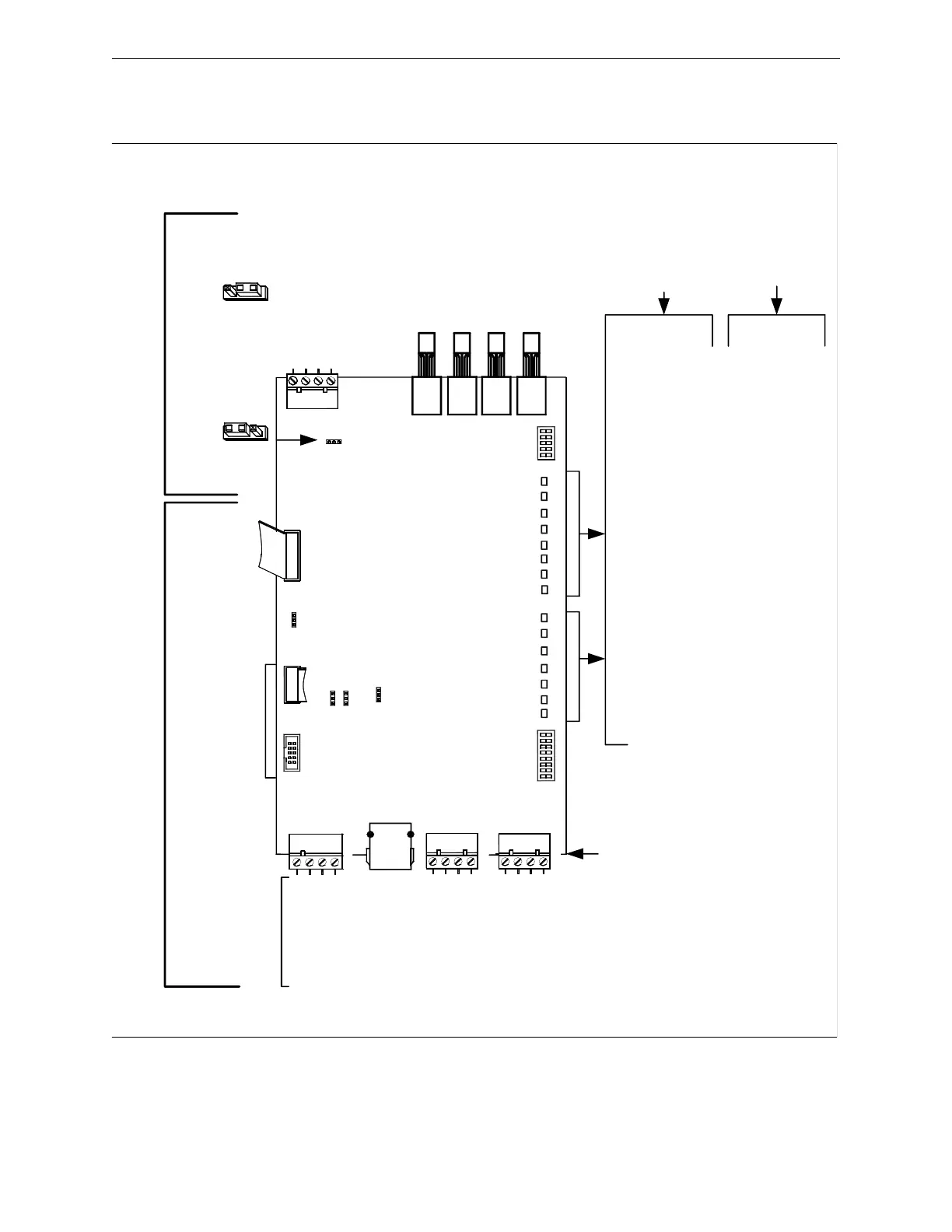

3.7.8.2 ANX-MR-FO Wiring Diagram
Table 3.7.8.2.1 illustrates the ANX-MR-FO wiring diagram.
Figure 3.7.8.2.1 ANX-MR-FO Wiring Diagram
TB2
TB4
COM A IN COM B IN
COM A OUT COM B OUT
LEAVE W1, W2, W3, W4 OPEN OR RIGHT
NOTE: POWER CONNECTION FROM PM-9/PM-9G IS NON POWER-LIMITED
J2
1
2
10
9
J4
2 1
16 15
ARCNET
TERM
OFF
W4
ON
J5
10
9
2
1
4 3 2 1
(TX1) TO NEXT NODE
TX2 CONNECTOR
(RX1) TO NEXT NODE
RX2 CONNECTOR
ARCNET PORT 2B ARCNET PORT 2A ARCNET PORT 1A ARCNET PORT 1B
(TX2) FROM PREVIOUS
NODE TX1 CONNECTOR
(RX2) FROM PREVIOUS
NODE RX1 CONNECTOR
ARCNET ADDRESS
SW1
1235 468 7
43
2
1
A
B A B
1
2
3 4
GND
+24VDC
GND +24VDC
TB1
1
2
3 4
TB3
RS232 RS232
BSEL
W3
BSEL
W2
W1
USE
FACTORY
SW2
ON
1 2 3 4 5
LED KEY LED1 = REC (NETWORK RECONFIGURATION) LED2 = MRC (NETWORK RECONFIGURATION ORIGINATING FROM THIS NODE) LED3 = DUP (NODE’S NETWORK ADDRESS IS DUPLICATED AT ANOTHER NODE) LED4 = TX (NODE IS TRANSMITTING DATA TO THE NETWORK) LED5 = RX (NODE IS RECEIVING DATA FROM THE NETWORK) LED6 = RST (NODE IS RESETTING) LED7 = DG (GENERAL NETWORK FAULT) LED8 = REC (NETWORK RECONFIGURATION) LED9 = MRC (NETWORK RECONFIGURATION ORIGINATING FROM THIS NODE) LED10 = DUP (NODE’S NETWORK ADDRESS IS DUPLICATED AT ANOTHER NODE) LED11 = TX (NODE IS TRANSMITTING DATA TO THE NETWORK) LED12 = RX1 (NODE1 IS RECEIVING DATA FROM THE NETWORK) LED13 = RX2 (NODE2 IS RECEIVING DATA FROM THE NETWORK) LED14 = RST (NODE IS RESETTING) LED15 = DG (GENERAL NETWORK FAULT)
TO FOCALPOINT GATEWAY
TCP/IP NETWORK OR PORT
TB3-1 GND TO PIN 5 OF DB9
TB3-2 TXD TO PIN 2 OF DB9
TB3-3 SUPV TO PIN 9 OF DB9
TB3-4 RXD TO PIN 3 OF DB9
PM-9/PM-9G, +24vdc (+)
PM-9/PM-9G GND (-)
OPT. MOD (+)
OPT MOD (-)
ARCO

ARCNET LOCAL
DIFFERENTIAL
J8 J9 J6 J7
ARCNET
REPEATER
TO RPT-E3
ARCNET
CONNECTOR
J10
TX RX TX RX
FIBER PORT 1 FIBER PORT 2
W5
ENA
GFLT
DIS
GND TXD SUPV RXD

LED 8

LED 10
LED 11
LED 12
LED 13
LED 14
LED 15


 
LED 9


LED 1
LED 2
LED 3
LED 4
LED 5
LED 6
LED 7
 
PRIMARY (LOCAL NETWORK)
SECONDARY NETWORK
LOCAL ARCNET
NETWORK
GROUND FAULT
DETECTION ENABLED
(MIDDLE TO TOP PIN)
NETWORK
GROUND FAULT
DETECTION DISABLED
(MIDDLE TO BOTTOM PIN)
PRIMARY NETWORK
CONNECTIONS
SECONDARY NETWORK
CONNECTIONS
J1
