2.5.9.10 Cabinet C, INCC-E3, 7-Bay Inner Door Installation
1. Mount the first, top row of the ASM-16 and LCD-E3 keypad sub-assemblies to the INCC-E3,
7-bay inner door and secure with six (6), #6-32 nuts as shown in Location 1 of the figure
below.
2. Interlock the first, bottom row of the ASM-16 and LCD-E3 keypad with the second, top row of
the ASM-16 sub-assemblies, and mount the units to the INCC-E3, 7-bay inner door by
securing six (6), #6-32 nuts as shown in Location 2 of the figure below.
3. Interlock the second, bottom row of the ASM-16 sub-assemblies with the third, top row of the
telephone and microphone box, and mount the units to the INCC-E3, 7-bay inner door by
securing six (6), #6-32 nuts as shown in Location 3 of the figure below.
4. Mount the third, bottom row of the telephone and microphone box to the INCC-E3, 7-bay
inner door by securing six (6), #6-32 nuts as shown in Location 4 of the figure below.
5. Secure the opposite end of the bonding wire to the welded #6 stud on the inner side of the inner
door using the #6 nut as shown in Location 5 of the figure below.
6. After the panel is wired, use the thumbscrews to secure the inner door to the backbox as shown
in Location 6 of the figure below.

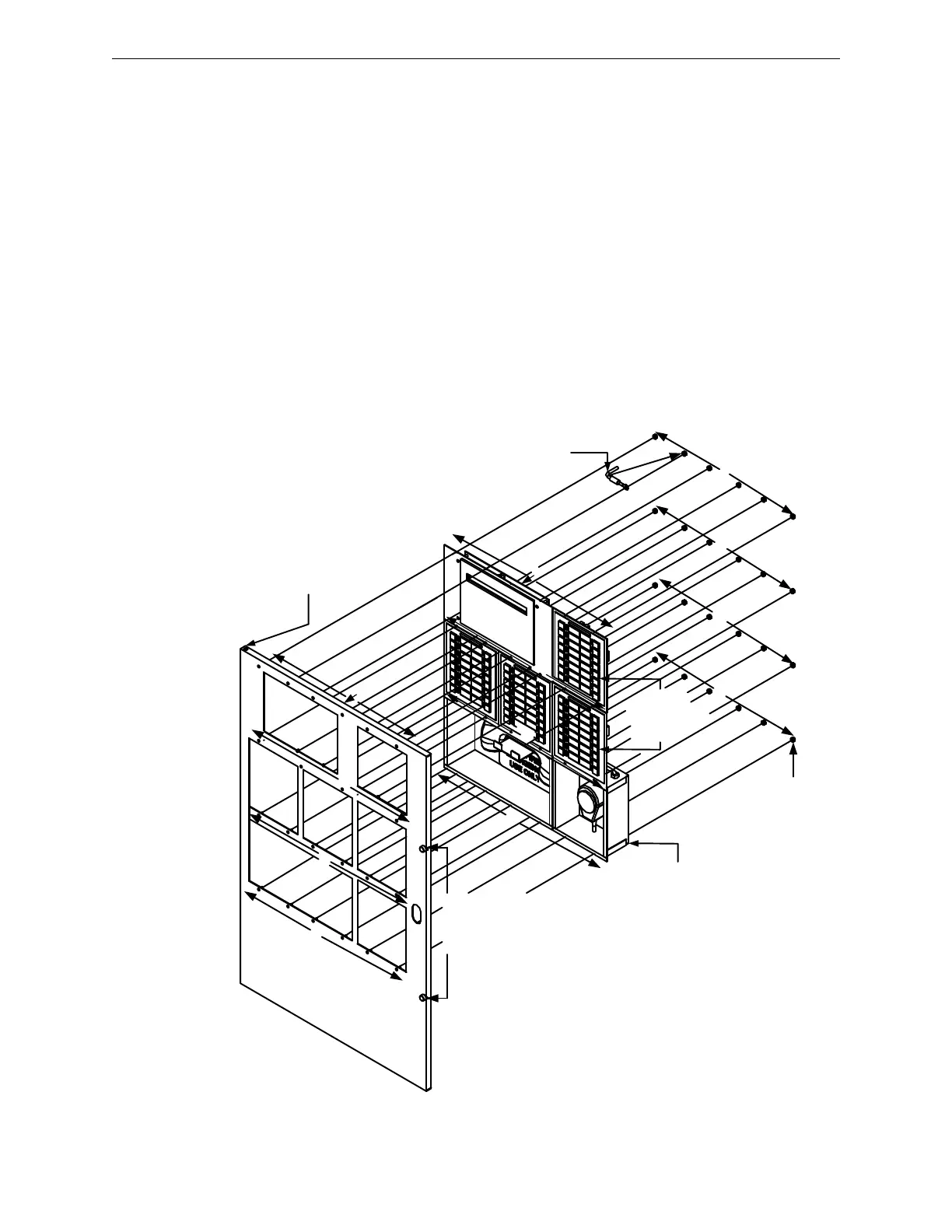

Figure 2.5.9.10.1 Cabinet C, INCC-E3, 7-Bay Inner Door Installation
L
C
D
-
E
3
K
E
Y
P
A
D
ASM-16
4 PLACES
MAX.
T
E
L
E
P
H
O
N
E
B
O
X
MICROPHONE
BOX
CABINET C, INCC-E3,
7-BAY INNER DOOR
1
1
2
2
4
4
3
3
4
1
2
3
NUT, HEX,
(#6-32)
24 PLACES
BONDING
WIRE
THUMBSCREWS
TO SECURE THE
INNER DOOR TO
THE BACKBOX
5
5
6
6
