Installation Cabinets
2.5.4.1 Cabinet A or AA, 2-Bay and 3-Bay Backbox Installation
1. Prepare the mounting site by pre-drilling four (4), #10 screws using the dimensions shown in
the figure below. Use four (4), #10 screws.
NOTE: If the fasteners are anchored to wallboard, use #10 wall anchors. Mountings to concrete
walls should be backed by plywood to insulate the equipment from possible condensation.
2. To mount the backbox, secure with two (2), #10 screws in the two-hole mounting pattern as
shown in Locations 1 and 2 of the figure below.
3. Set the backbox over the top, two-hole mounting pattern, and hang the backbox over the two
screw heads.
4. Insert and secure two (2), #10 screws in the two-hole mounting pattern as shown in Locations
3 and 4 of the figure below.
NOTE: Add knockouts to the left and right side of the rear panel of the backbox. Do not add
knockouts in the center or top of the backbox. To add larger knockouts, increase the size of the
existing knockouts.

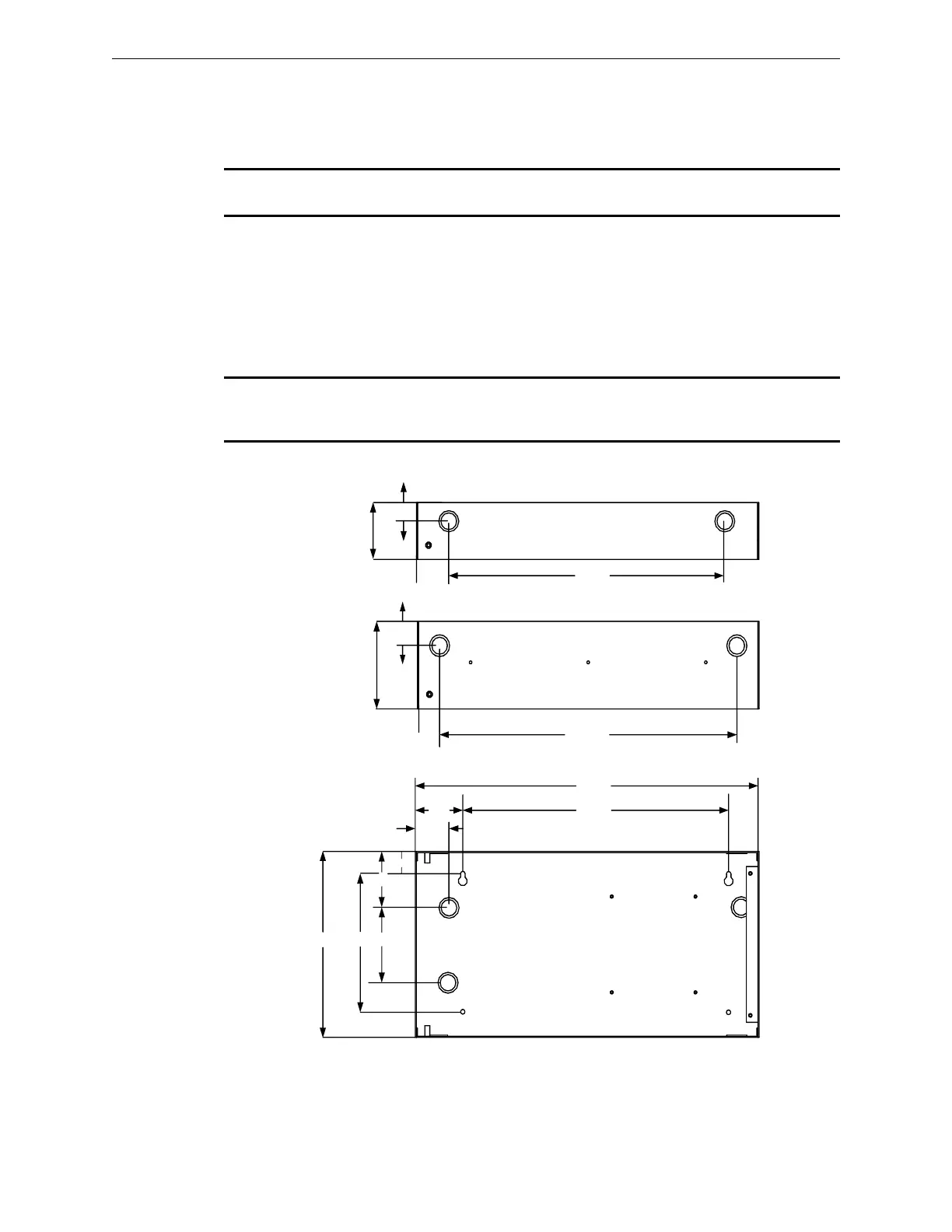

Figure 2.5.4.1.1 Cabinet A or AA, 2-Bay and 3-Bay Backbox Installation
CABINET A BACKBOX TOP
16.75"
.875"
3.00"
1.25"
3.00"
4.00"7.46"10.00"
1.00"
15.85"
19.25"
BACKBOX
1 2
3 4
1.70"
1.20"
16.75"
4.50"
1.25"
CABINET AA BACKBOX TOP

