E3 Series Installation/Operation Manual — P/N 9000-0574:I 11/04/10 85
Cabinets Installation
2.5.10.4 Cabinet D, E3-INX-D Plate Installation
1. Mount the ILI-MB-E3/ILI95-MB-E3/ANX over the standoffs on the E3-INX-D plate and
secure the eight (8), standoffs, (3/16” hex, #4-40 x 1”) in the eight-hole mounting pattern as
shown in Location 1 of Figure 2.5.10.4.2.
2. Mount the DACT-E3 and the RPT-E3 on top of the ILI-MB-E3/ILI95-MB-E3/ANX and secure
the eight (8), screws (#4-40 x 1/4”) into the eight (8), standoffs as shown in Location 2 of
Figure 2.5.10.4.2.
3. Mount the INI-VG on the E3-INX-D plate and secure the six (6), screws (#4-40 x 1/4”) into
the six-hole mounting pattern as shown in Location 3 of Figure 2.5.10.4.2.
4. Mount the PM-9/PM-9G on the E3-INX-D plate and secure the six (6), screws (#4-40 x 1/4”)
into the six-hole mounting pattern as shown in Location 4 of Figure 2.5.10.4.2.
5. Mount the AM-50 Series amplifiers on the E3-INX-D plate and secure the (8). screws (#4-40 x
1/4”) into the eight-hole mounting pattern as shown in Location 5 of Figure 2.5.10.4.2.
6. Mount the AM-50 Series amplifiers on the E3-INX-D plate and secure the eight (8), screws
(#4-40 x 1/4”) into the eight-hole mounting pattern as shown in Location 6 of
Figure 2.5.10.4.2.

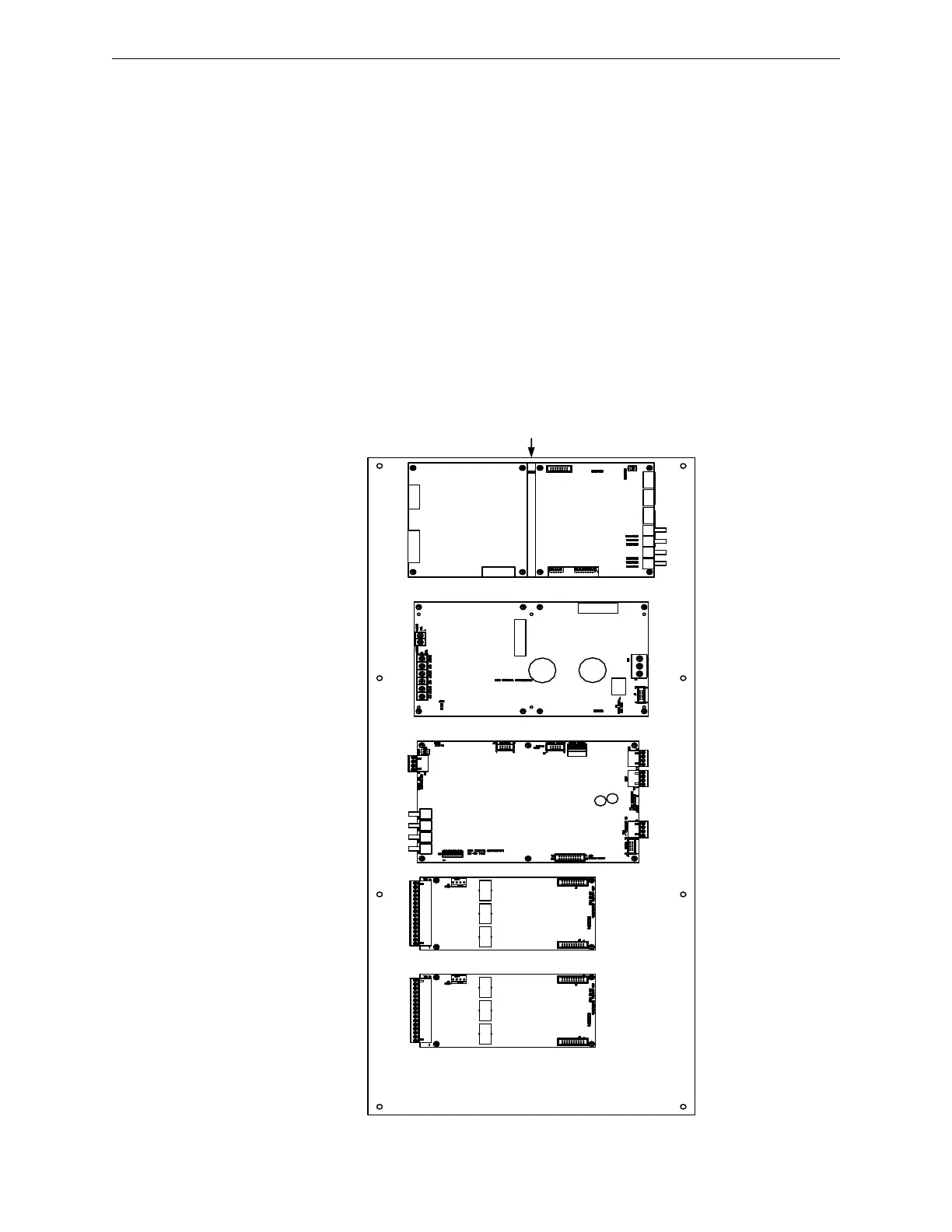

Figure 2.5.10.4.1 Cabinet D, E3-INX-D Plate (Standard View)
ILI-MB-E3/ILI95-MB-E3/ANX
AM-50 SERIES
DACT-E3 RPT-E3
INI-VG
SERIES
PM-9/PM-9G
AM-50 SERIES
PM-9/PM-9G PCB
To Next Page
