Honeywell Gamewell-FCI E3 Series - 2: LCD-E3 Sub-Assembly

164 E3 Series Installation/Operation Manual — P/N 9000-0574:I 11/04/10
E3 Series System Connections LCD-E3 Panel Display Connections
3.13.2 LCD-E3 Sub-Assembly

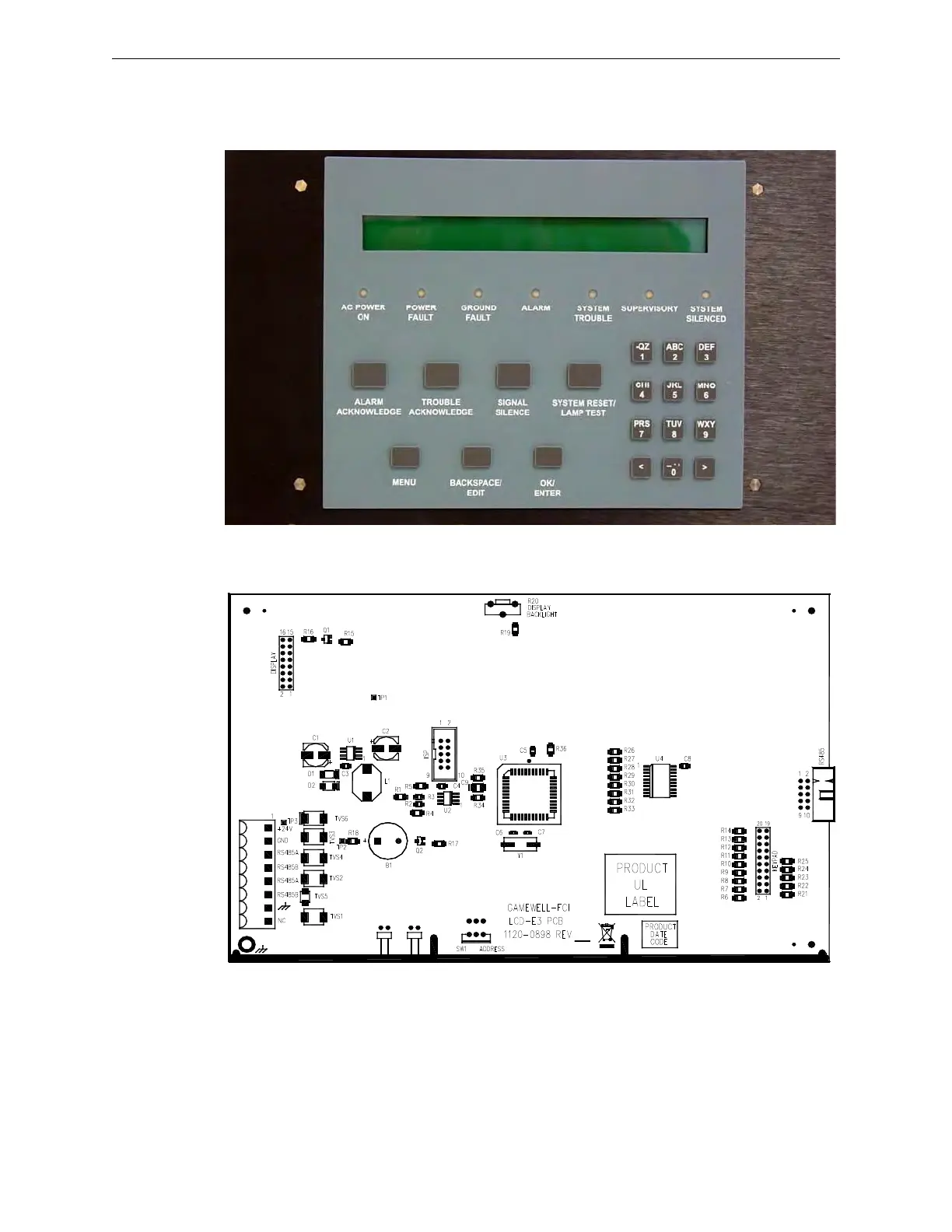

Figure 3.13.2.1 and Figure 3.13.2.2 illustrate the LCD-E3 sub-assembly.
.
Figure 3.13.2.1 LCD-E3 Sub-Assembly
Figure 3.13.2.2 LCD-E3 Sub-Assembly
W1 W2
TB1
J3
J4
J2
J1
