2.5.9.4 Cabinet C, E3-ILI-C Plate Installation
1. Mount the first, ILI-MB-E3/ILI95-MB-E3/ANX over the standoffs on the E3-ILI-C plate and
secure the eight (8), standoffs, (3/16” hex, #4-40 x 1”) in the eight-hole mounting pattern as
shown in Location 1 of Figure 2.5.9.4.2.
2. Mount the DACT-E3 and the RPT-E3 on top of the ILI-MB-E3/ILI95-MB-E3/ANX and secure
the eight (8), screws (#4-40 x 1/4”) into the eight (8), standoffs as shown in Location 2 of
Figure 2.5.9.4.2.
3. Mount the PM-9/PM-9G on the E3-ILI-C plate and secure the eight (8), screws (3/16” hex, #4-
40 x 1/4”) in the eight-hole mounting pattern as shown in Location 3 of Figure 2.5.9.4.2.
4. Mount the second, ILI-E3 or ILI95-E3 Series sub-assembly on the E3-ILI-C plate and secure
the eight (8), standoffs (3/16” hex, #4-40 x 1/4”) into the eight (8), standoffs as shown in
Location 4 of Figure 2.5.9.4.2.
5. Mount the third, ILI-E3 or ILI95-E3 Series sub-assembly on top of the second ILI-E3 or
ILI95-E3 Series sub-assembly and secure the eight (8), screws (#4-40 x 1/4”) into the eight (8),
standoffs as shown in Location 5 of Figure 2.5.9.4.2.

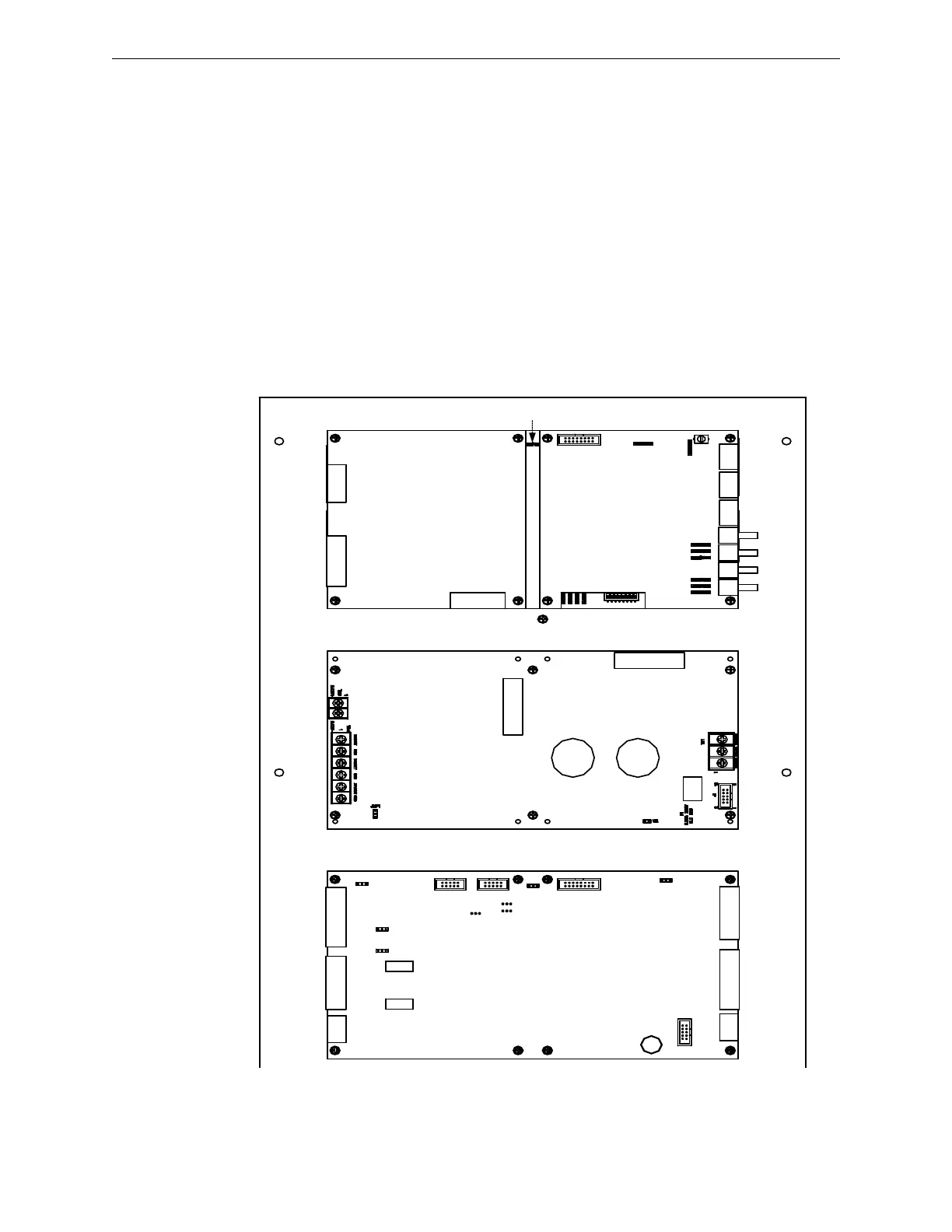

Figure 2.5.9.4.1 Cabinet C, E3-ILI-C Plate (Standard View)
ILI-E3, ILI95-E3
SERIES OR ANX
PM-9/PM-9G
DACT-E3 RPT-E3
ILI-MB-E3/ILI95-MB-E3/ANX
PM-9G PCB
