Honeywell Gamewell-FCI E3 Series - Cabinet C, E3-INCC-C PLATE, Sub-Assembly Plate to the Backbox Installation

70 E3 Series Installation/Operation Manual — P/N 9000-0574:I 11/04/10
Installation Cabinets
2.5.9.3 Cabinet C, E3-INCC-C PLATE, Sub-Assembly Plate to the
Backbox Installation
Mount the Cabinet C, E3-INCC-C sub-assembly plate on the studs in the backbox and secure with
six (6), #10-32 nuts as shown in Locations 1 thru 6 of the figure below.
.

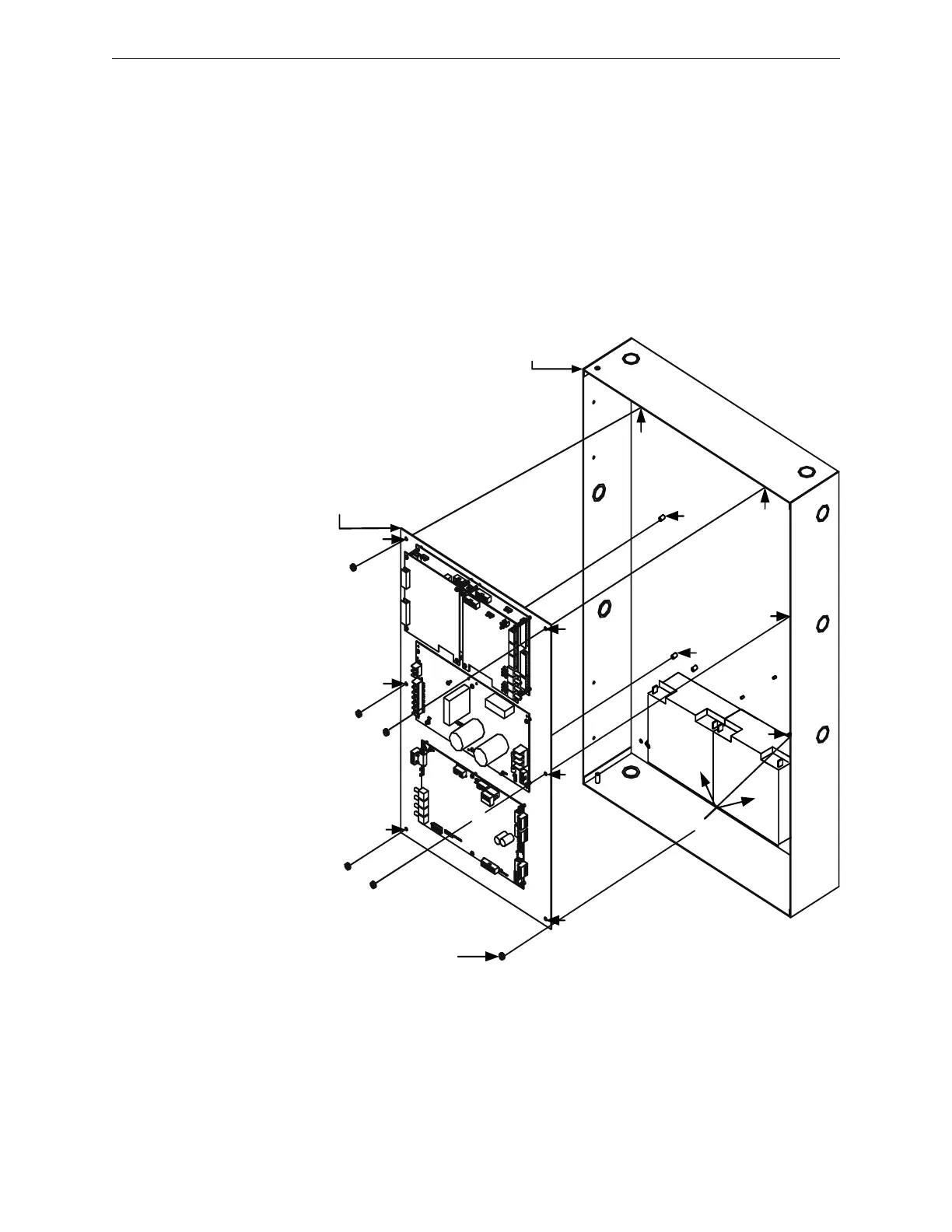

Figure 2.5.9.3.1 Cabinet C, E3-INCC-C Sub-Assembly Plate to the Backbox
Installation
6
1
2
3
4
5
CABINET C, E3-INCC-C,
SUB-ASSEMBLIES PLATE
CABINET C,
BACKBOX
B
A
T
T
E
R
I
E
S
NUT, HEX
#10-32
6 PLACES
1
3
4
5
6
2























I
N
I
-
V
G
S
E
R
I
E
S
