46 E3 Series Installation/Operation Manual — P/N 9000-0574:I 11/04/10
Installation Cabinets
2.5.6.2 Cabinet B Trim Rings Installation (Optional Accessory)
1. Insert the Cabinet B, trim top ring over the top three-hole mounting pattern.
2. Secure with three (3), #6 Hex Kep nuts in the three-hole mounting pattern on the top of the
backbox as shown in Locations 1, 2 and 3 of the figure below.
3. Insert the Cabinet B, trim bottom ring on the bottom three-hole mounting pattern.
4. Secure with three (3), #6 Hex Kep nuts in the three-hole mounting pattern on the bottom of the
backbox as shown in Locations 4, 5 and 6 of the figure below.
5. Insert the Cabinet B, trim left ring on the left side of the three-hole mounting pattern.
6. Secure with three (3), #6 Hex Kep nuts in the three-hole mounting pattern on the left side of
the backbox as shown in Locations 7, 8 and 9 of the figure below.
7. Insert the Cabinet B, trim right ring on the right side of the three-hole mounting pattern.
8. Secure with three (3), #6 Hex Kep nuts in the three-hole mounting pattern on the right side of
the backbox as shown in Locations 10, 11 and 12 of the figure below.
For information on flush-mounting, refer to the E3 Series Cabinet Trim Rings Installation
Instructions, P/N 9001-0058.

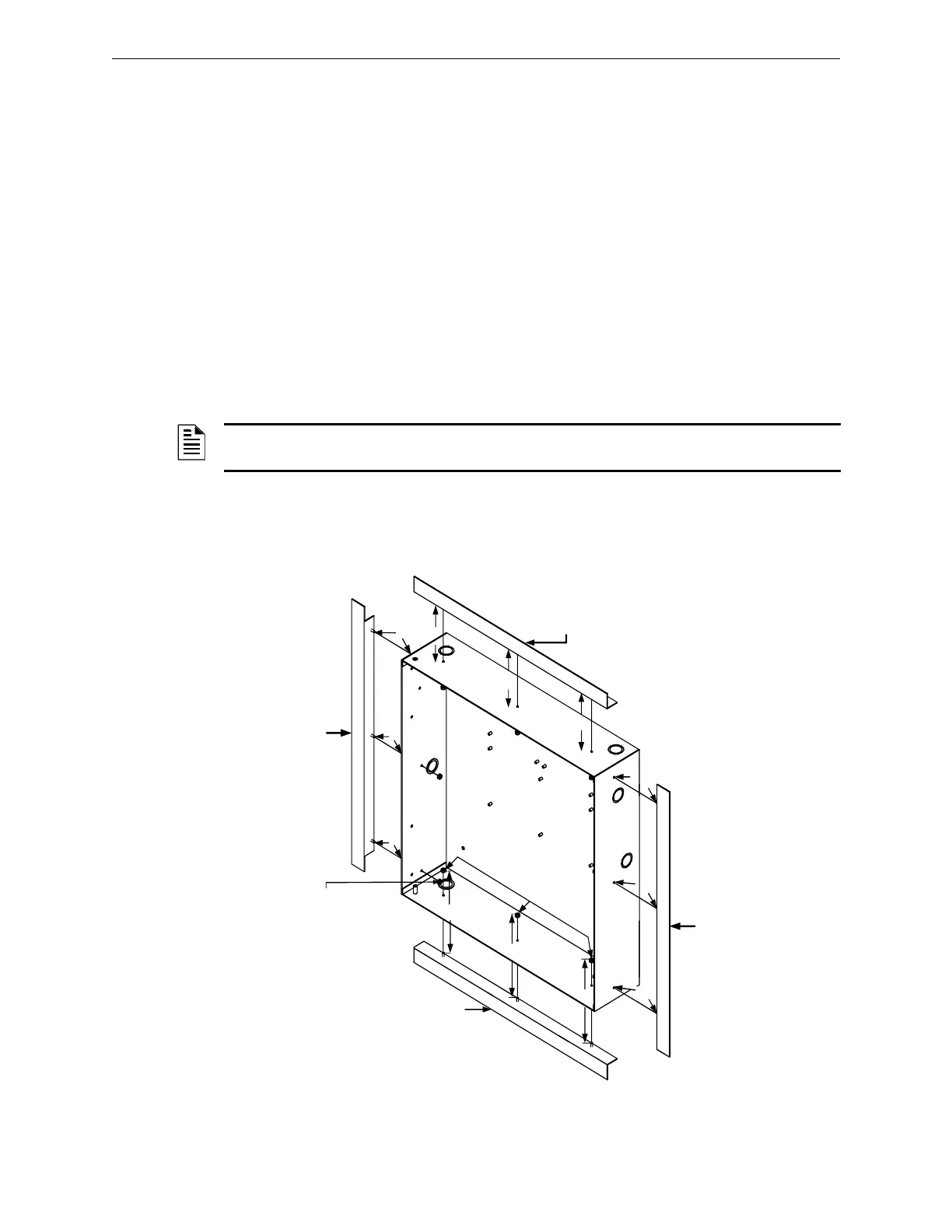

Figure 2.5.6.2.1 Cabinet B, Trim Rings Installation
NOTE: Use the Trim Ring Hardware Kit provided. The trim top/bottom and trim left/right rings are
interchangeable.
E3 Cabinet B,
Left Trim Ring
E3 Cabinet B,
Bottom Trim Ring
NOTES:
#6 HEX,
KEPS NUTS
(12 PLACES)
E3 Cabinet B,
Right Trim Ring
8
9
E3 Cabinet B,
Top Trim Ring
10

1
3
6
5
4
7
11
2
