E3 Series System Connections Addressable Node Expander (ANX) Connections
3.7.8 Addressable Node Expander Multi-Ring Fiber-Optic Pair
(ANX-MR-FO)
The Addressable Node Expander Multi-Ring, Fiber-Optic panel provides the same features as the
ANX-MR-UTP with the following additional feature.
• The ANX-MR-FO network component includes fiber-optic (FO) connectivity on the
secondary network connection.

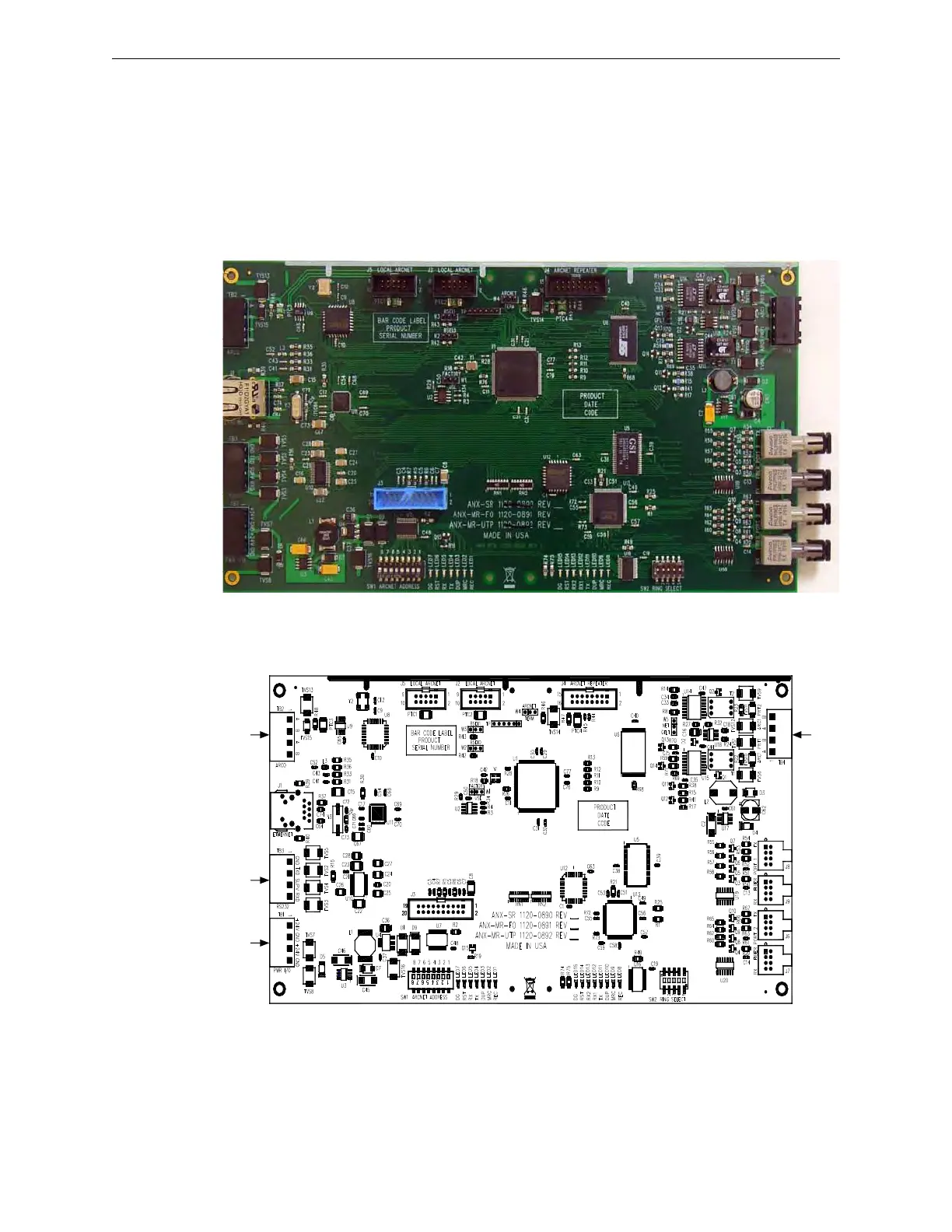

Figure 3.7.8.1 ANX-MR-FO Sub-Assembly
Figure 3.7.8.2 ANX-MR-FO Sub-Assembly PCB
TB4
TB2
TB3
TB1
