Honeywell Gamewell-FCI E3 Series - Cabinet A1, Outer Door Installation

E3 Series Installation/Operation Manual — P/N 9000-0574:I 11/04/10 23
Cabinets Installation
2.5.1.3 Cabinet A1, Outer Door Installation
1. Mount the outer door on the backbox.
2. Secure with three (3), #6-32 nuts in the three-hole mounting pattern on the left side of the
backbox as shown in Locations 1, 2, and 3 of the figure below.

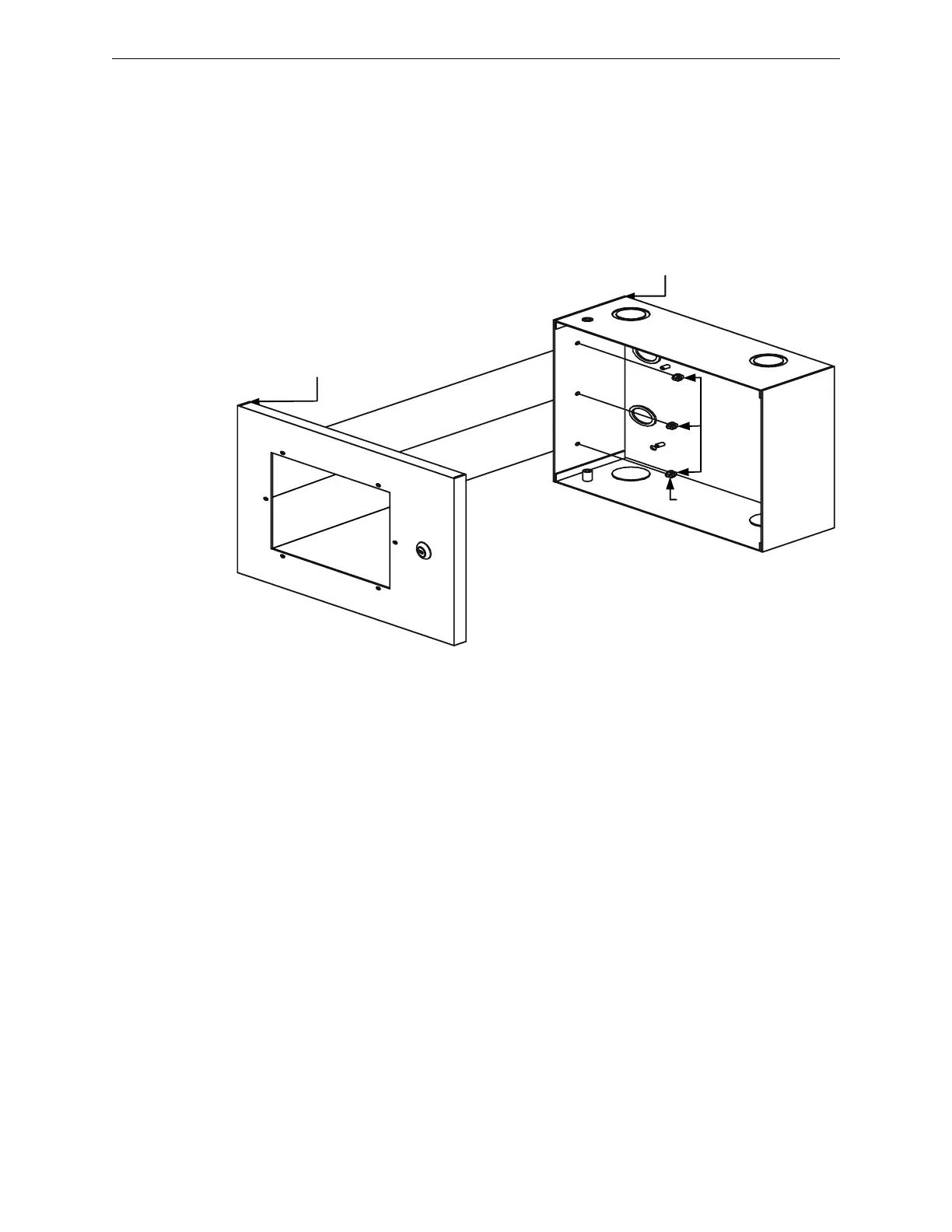

Figure 2.5.1.3.1 Cabinet A1, Outer Door Installation
CABINET A1,
BACKBOX
CABINET A1,
OUTER DOOR
