Honeywell Gamewell-FCI E3 Series - 5: ANU-48 Programming Address Switch Settings

162 E3 Series Installation/Operation Manual — P/N 9000-0574:I 11/04/10
E3 Series System Connections ANU-48 Remote LED Driver Connections
3.12.5 ANU-48 Programming Address Switch Settings
The address of the ANU-48 in the system is set via the DIP Switch. Figure 3.12.5.1 illustrates the
ANU-48 address DIP switches and the ANU-48 programming address switch settings. For
addressing instructions, see the ANU-48 Installation Instructions, P/N 9000-0564.
NOTE: Set the first address in the program to switch 32.

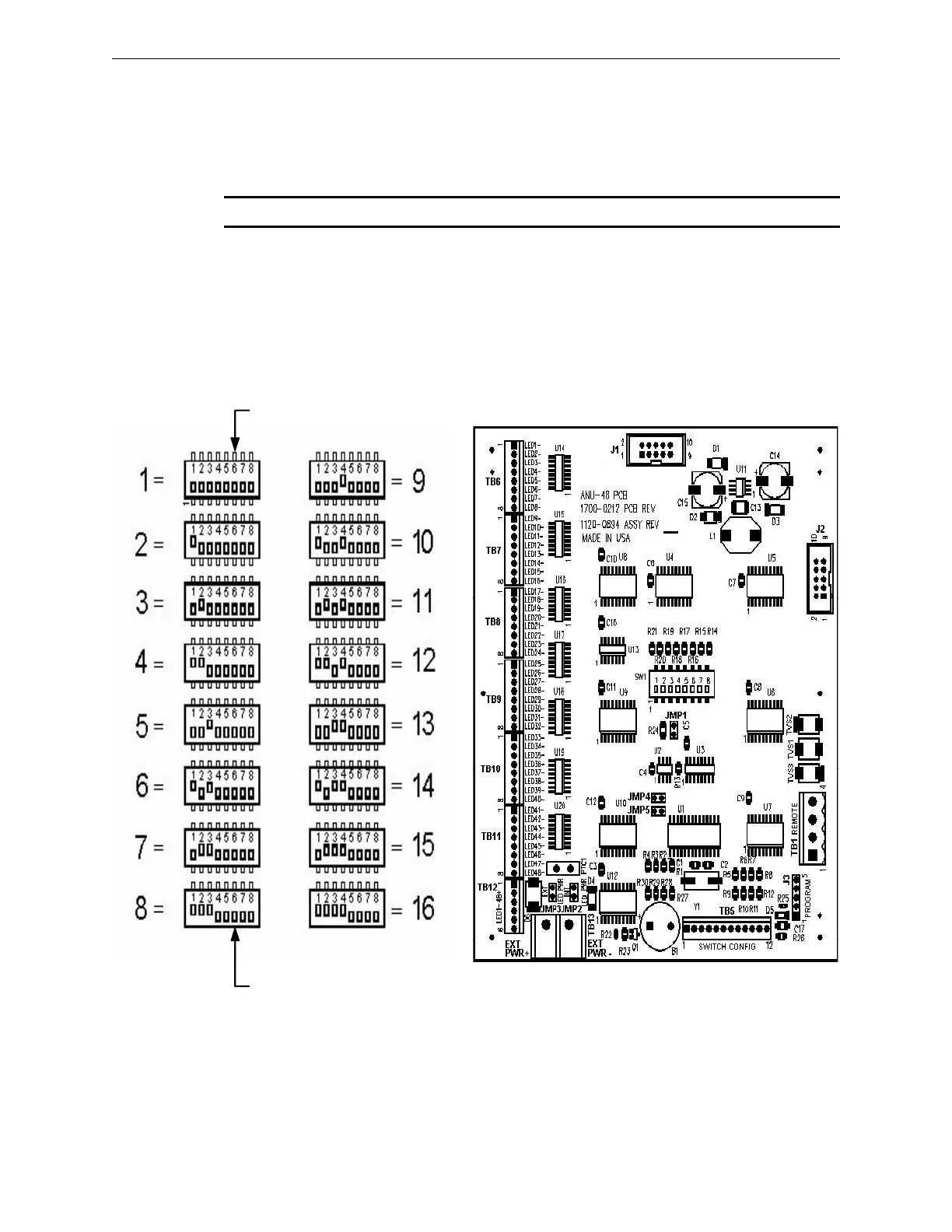

Figure 3.12.5.1 ANU-48 DIP Switches
Set this switch 6 UP when connected
to the ILI-MB-E3 or ILI95-MB-E3.
Set this switch 6 DOWN when
connected to the INI-VGC.
