Honeywell Gamewell-FCI E3 Series User Manual

E3 Series Installation/Operation Manual — P/N 9000-0574:I 11/04/10 151
Digital Alarm Communicator Transmitter (DACT-E3) Connections E3 Series System Connections
3.10.6 DACT-E3 Wiring Connections (Continued)
Figure 3.10.6.1 illustrates the field wiring connections for the DACT-E3.

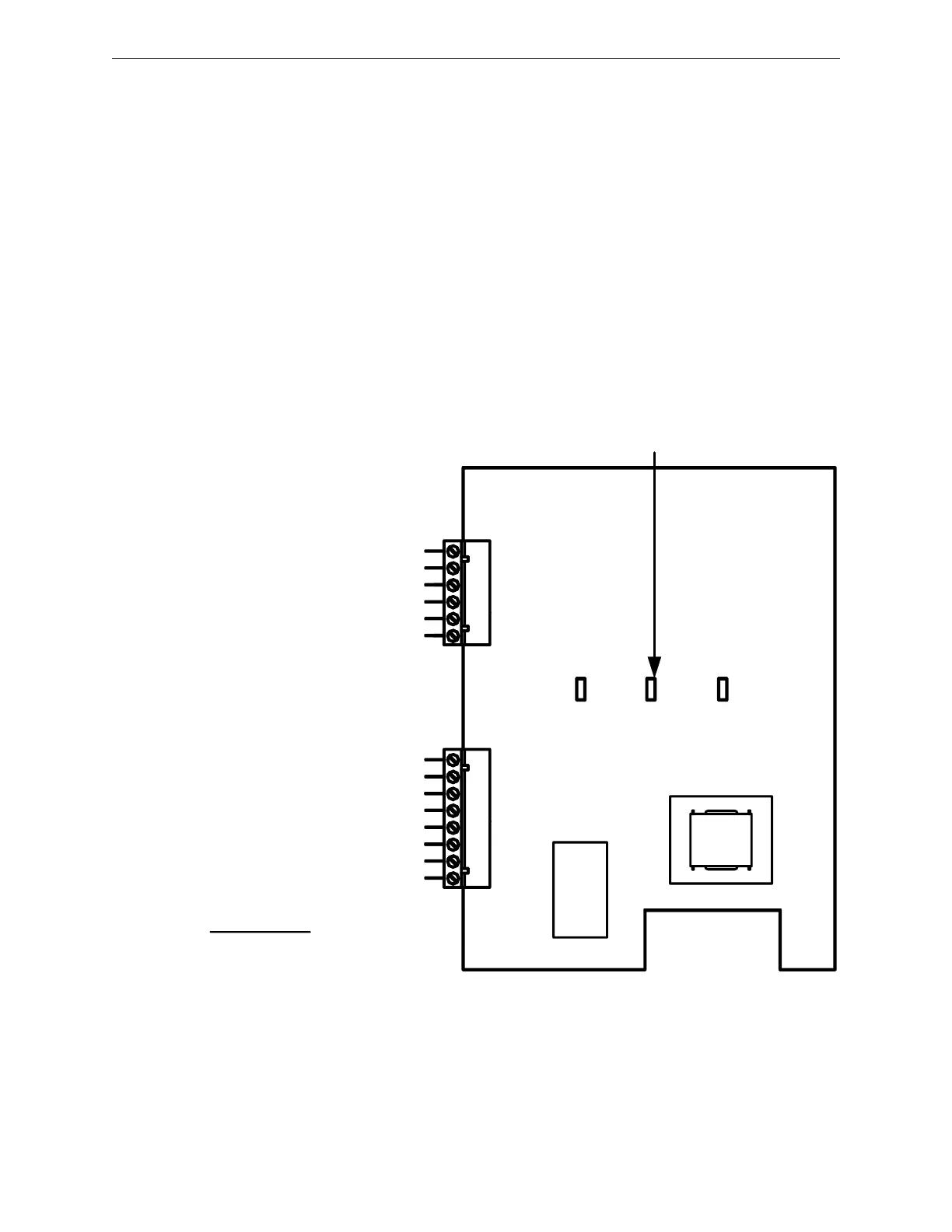

Figure 3.10.6.1 DACT-E3 Wiring Diagram
1
TB2
8
87651 2 3 4
TB1
6
4 65321
K1
1
T1
1
LED1 LINE 1 STATUS:
OFF = LINE 1 INACTIVE
ON = LINE 1 TRANSMITTING DATA
FLASHING = LINE 1 FAULT
LED2 LINE 2 STATUS:
OFF = LINE 2 INACTIVE
ON = LINE 2 TRANSMITTING DATA
FLASHING = LINE 2 FAULT
LED3 STANDBY:
OFF = NORMAL STANDBY MODE
ON = TRANSMITTING OR IN TROUBLE
LED1LED2LED3
STANDBY LINE2
STATUS
LINE1
STATUS
DACT-E3 MUST BE THE FIRST
DEVICE TO THE TELCO LINES
IMPORTANT
FROM ILI-MB-E3 OR ILI95-MB-E3 TB3 PIN1
FROM ILI-MB-E3 OR ILI95-MB-E3 TB3 PIN2
RS485 COM A OUT TO NEXT DEVICE
RS485 COM B OUT TO NEXT DEVICE
FROM ILI-MB-E3 OR ILI95-MB-E3 TB3 PIN6
FROM ILI-MB-E3 OR ILI95-MB-E3 TB3 PIN7
TELCO LINE 1 TIP IN FROM STREET
TELCO LINE 1 RING IN FROM STREET
LINE 1 TIP OUT TO PREMISES PHONE(S)
LINE 1 RING OUT TO PREMISES PHONE(S)
TELCO LINE 2 TIP IN FROM STREET
TELCO LINE 2 RING IN FROM STREET
LINE 2 TIP OUT TO PREMISES PHONE(S)
LINE 2 RING OUT TO PREMISES PHONE(S)
RS485 COM A IN
RS485 COM B IN
RS485 COM A OUT
RS485 COM B OUT
24 VDC (+)
SYS NET (-)
