Honeywell HC900 Reference Guide

Function Blocks
CARB Carbon Potential Function Block
104 HC900 Hybrid Control Designer Function Block Reference Guide Revision 11
2/07
RSP tab

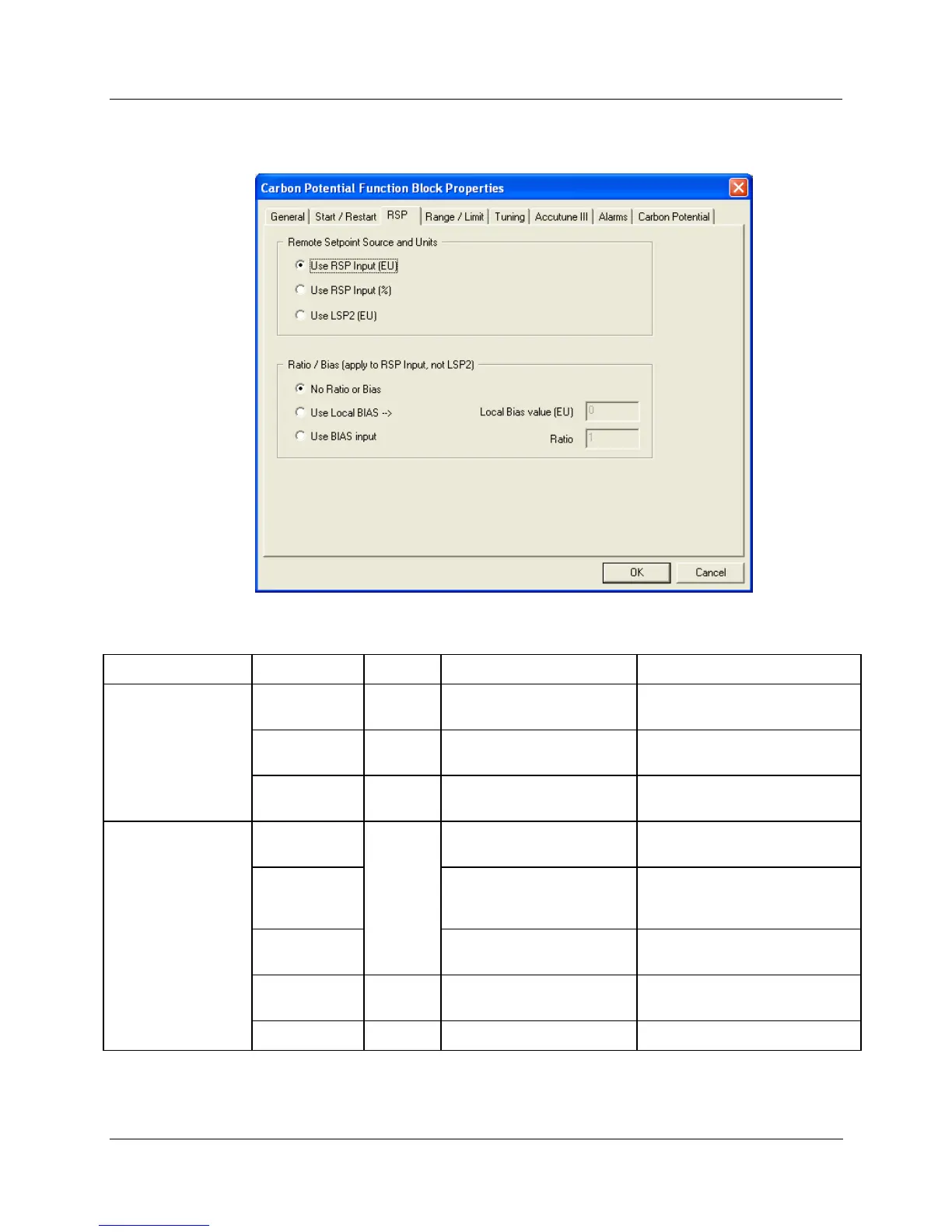

Table 31 CARB RSP tab configuration parameters
Properties Group Parameter Index # Parameter Description Value or Selection
Use RSP
Input (EU)
N/A
Use Remote Setpoint in
Engineering Units
Click on radio button to select.
Use RSP
Input (%)
N/A
Use Remote Setpoint in
Percent
Click on radio button to select.
Remote Setpoint
Source and Units
Use LSP2
(EU)
N/A
Use Local Setpoint #2 in
Engineering Units
Click on radio button to select.
No Ratio or
Bias
N/A
No ratio and bias applied to
the function block
Click on radio button to select.
Use Local
Bias
Use Bias value selected on
Tab
Click on radio button to select
Enter value at “Local Bias
Value” on tab.
Use Bias
Input
Use Bias value attached to
an input to the block
Click on radio button to select.
Local Bias
Value (EU)
46
Local bias value in
engineering units
Enter local bias value.
Ratio/Bias
(RSP Input Only)
Ratio
45 Gain value for Ratio PID –20 to +20
