Honeywell HC900 Reference Guide

Function Blocks
4OR Function Block
246 HC900 Hybrid Control Designer Function Block Reference Guide Revision 11
2/07
Input state
You can invert Input 1, 2, 3, 4, or all. If the input is inverted, an input line that is ON is seen as OFF. (“N”
appears on the Icon next to the inverted input.)
ATTENTION
Unused Inputs default to 0.
Example

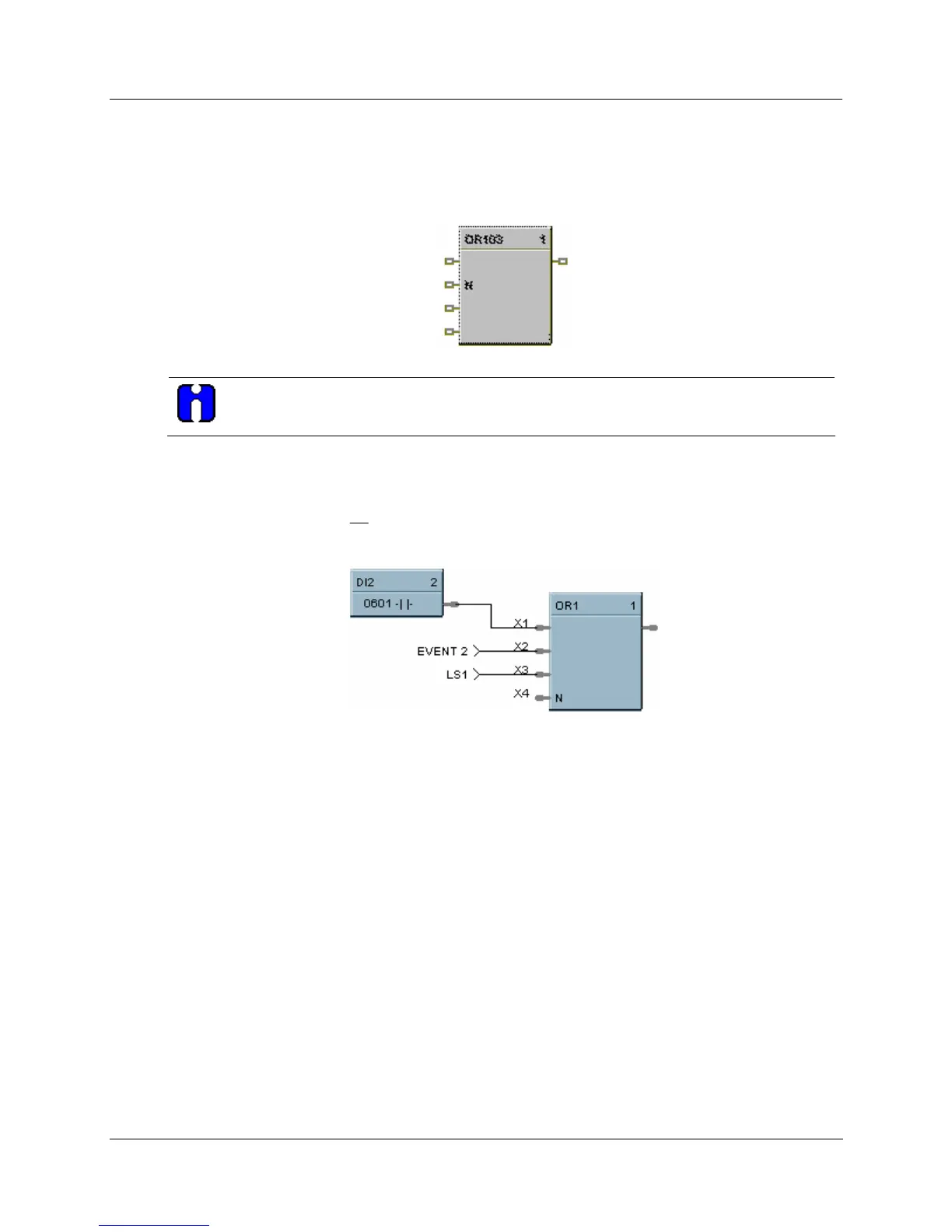

HFigure 65 shows a Function Block Diagram using a 4OR function block.
Output = X1 or X2 or X3 or
X4
Figure 65 4OR function block example
