Function Blocks
SPEV Setpoint Programming Event Decoder Function Block
340 HC900 Hybrid Control Designer Function Block Reference Guide Revision 11
2/07

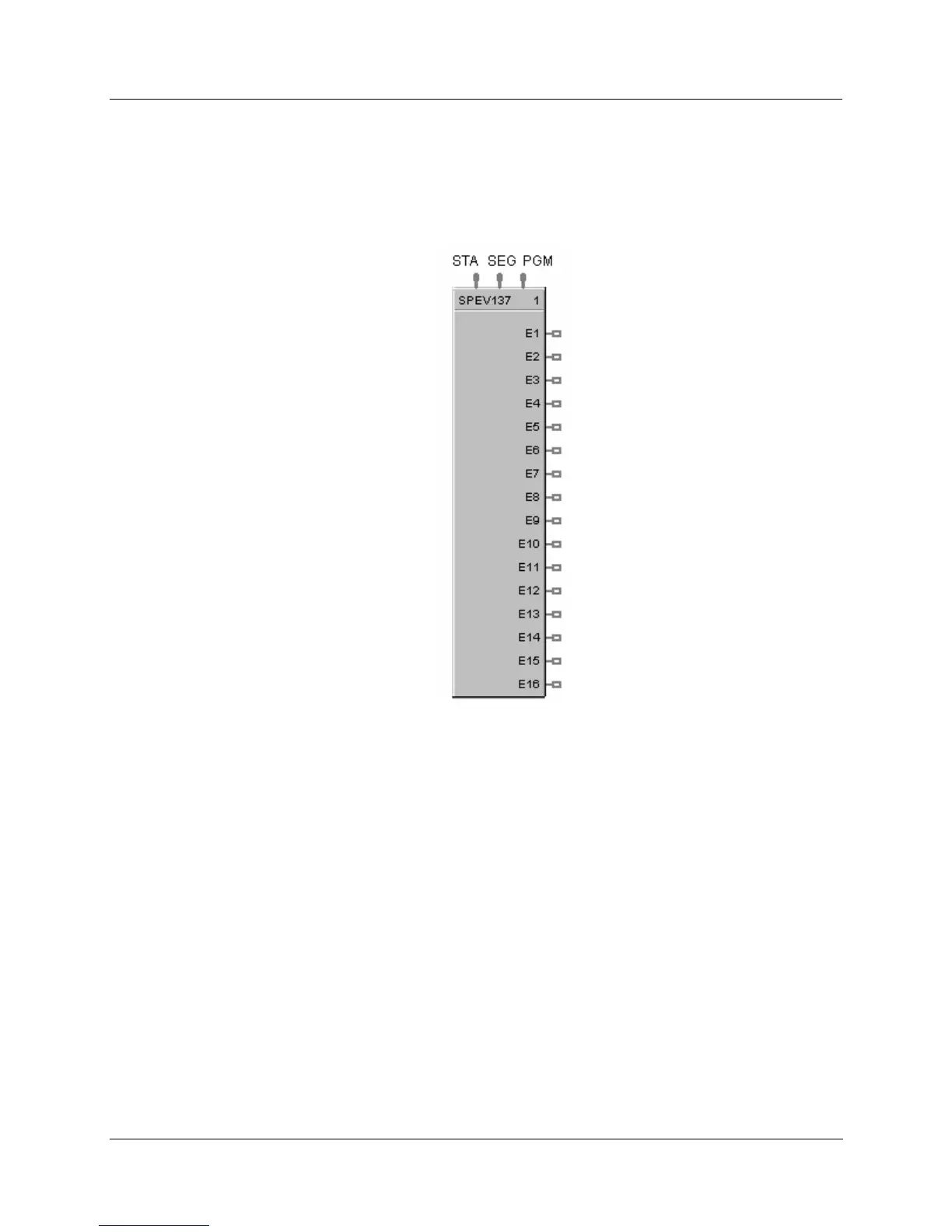

SPEV Setpoint Programming Event Decoder Function Block
Description
The SPEV label stands for Setpoint Programming Events.
This block is part of the
Setpoint Program and Setpoint Scheduler categories.
Function
Sets up to sixteen digital event outputs that may be ON or OFF on a per segment basis. Inputs include
program number, segment number, and program state (READY, RUN, HOLD, GHOLD, STOP) from
setpoint program block or setpoint scheduler block.
• If Program Number (PGM) = 0, Segment Number (SEG) = 0, or Program State (STA) is RESET; then:
E1 to E16 = OFF.
• Otherwise, E1 to E16 = as specified in program (PGM), segment (SEG).
Inputs
PGM
= Profile number
For SP Programmer - 99
For SP Scheduler - 20
SEG = Segment number (1 to 50).
STA = Program/schedule State (Ready, Run, Hold, Ghold, Stop).
