Honeywell HC900 - Table 45 Digital Output Configuration Parameters

Function Blocks
DO Function Block
Revision 11 HC900 Hybrid Control Designer Function Block Reference Guide 147
2/07
Configuration parameters

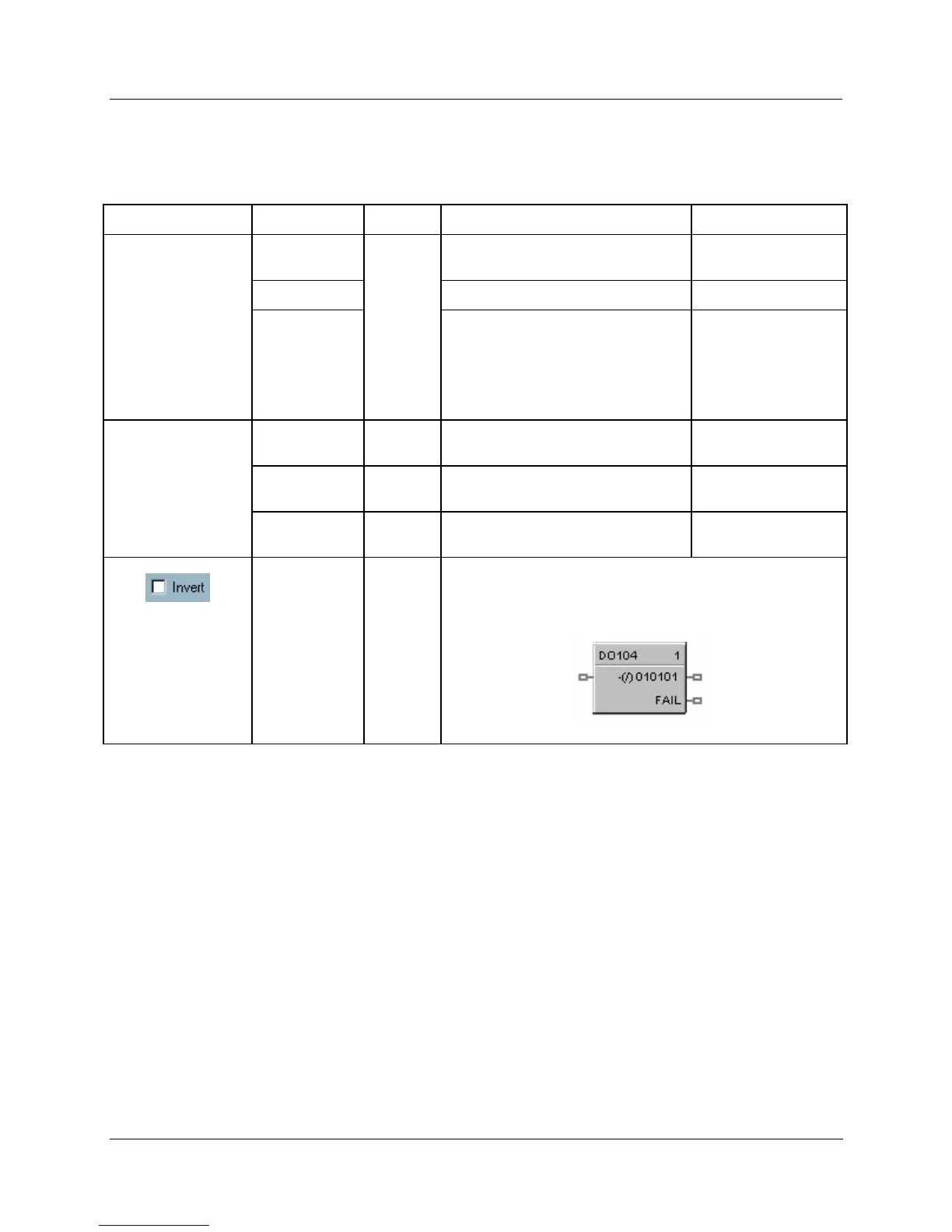

Table 45 Digital output configuration parameters
Properties Group Parameter Index # Parameter Description Value or Selection
Rack
Rack Address of selected I/O
Module
From 1 to 5
Address
I/O Module
N/A
Address of select I/O Module From 1 to 12
Channel
Channel on selected I/O Module
From 1 to 32
depending on the
physical module type
DC = 16 or 32
AC = 8
Relay = 4
Failsafe Failsafe ON
N/A
set the output of the block to OFF
when failure is detected.
Click on radio button
to select.
Failsafe OFF
N/A
set the output of the block to ON
when failure is detected.
Click on radio button
to select.
Failsafe
HOLD
N/A
hold the output at the last value just
prior to the failure being detected.
Click on radio button
to select.
1
If INVERT is selected, Invert IN before writing to output
The slash will be present in the COIL symbol only when the
invert box is selected on the dialog box. (See below.)
