Function Blocks
VLIM Velocity Limiter Function Block
Revision 11 HC900 Hybrid Control Designer Function Block Reference Guide 429
2/07
Block properties

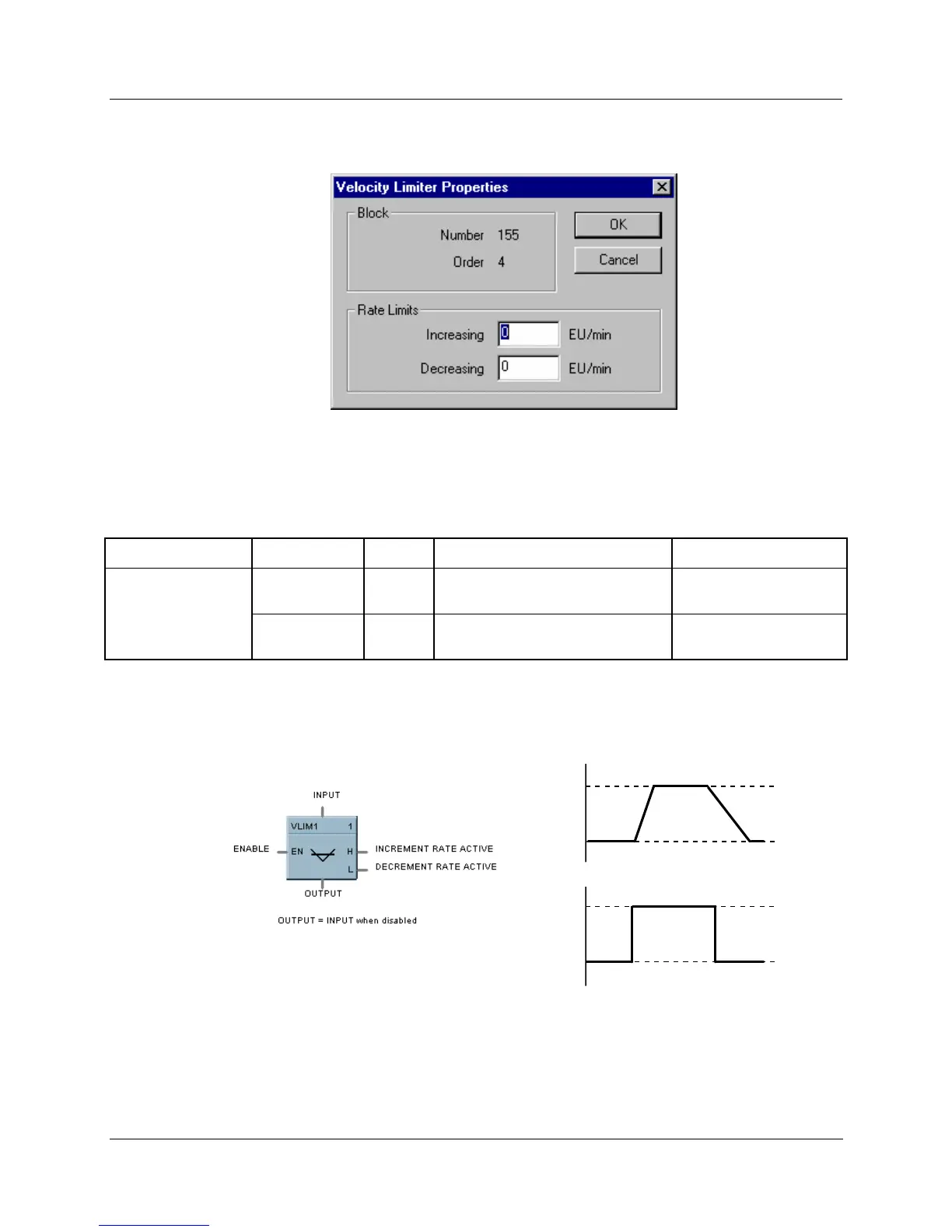

Double click on the function block to access the function block properties dialog box.
Configuration parameters
Table 127 VLIM Configuration Parameters
Properties Group Parameter Index # Parameter Description Value or Selection
Set Limits
Increase
Rate Limit
0
Limits the
increasing rate at which
the analog input value can change
0 to 99999 (eu/min)
Decrease
Rate Limit
1
Limits the
decreasing rate at which
the analog input value can change
0 to 99999 (eu/min)
Example
HFigure 119 shows a VLIM function block that limits the increasing or decreasing rate at which the output
can change based on user specified limits when the Enable input is ON (1).
Output
Input
Figure 119 VLIM function block example
