8OR Function Block
Revision 11 HC900 Hybrid Control Designer Function Block Reference Guide 249
2/07
Example

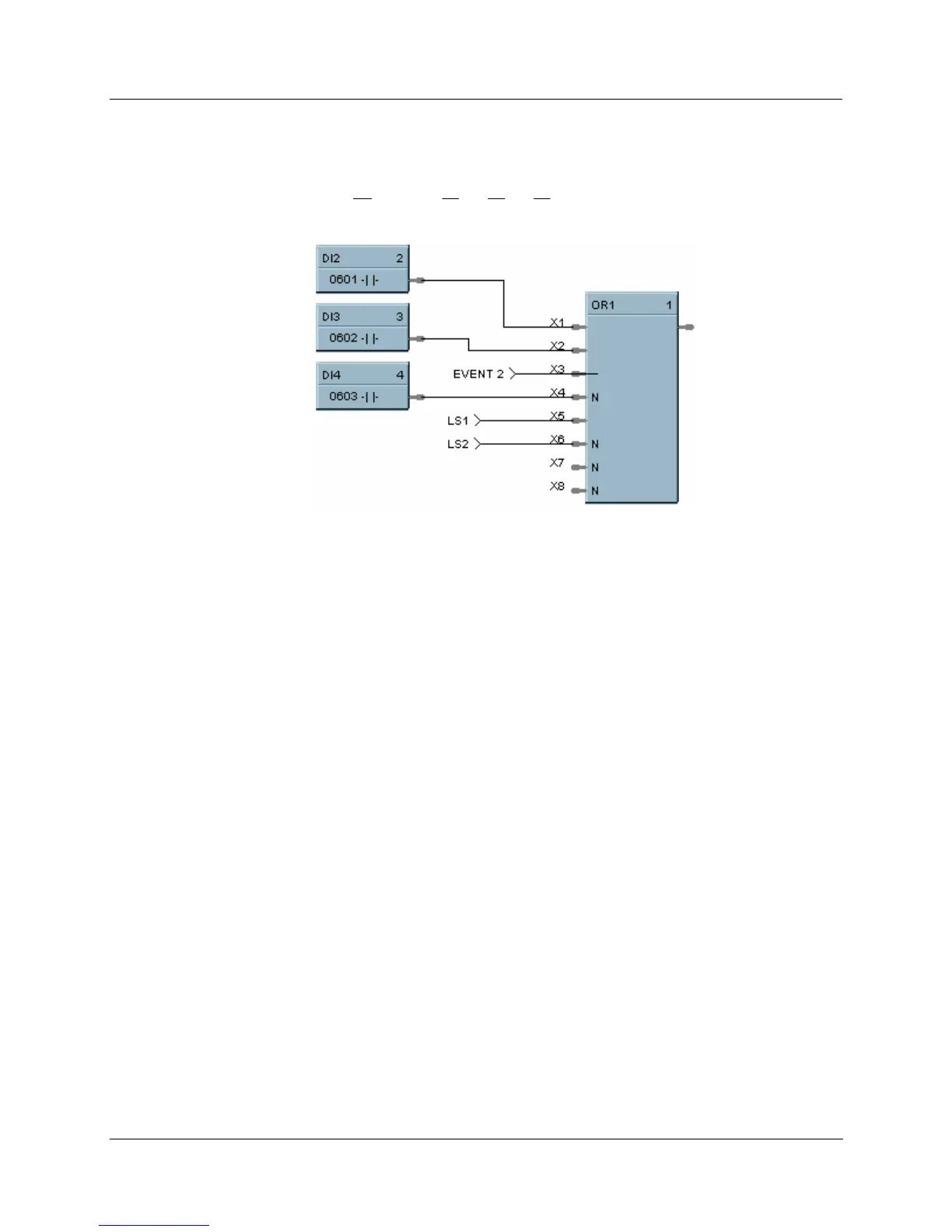

HFigure 66 shows a Function Block Diagram using an 8OR function block.
Output = X1
or X2 or X3 or X4 or X5 or X6 or X7 or X8
Figure 66 8OR function block example
