Honeywell HC900 - Figure 53 MDSW Function Block Example

Function Blocks
MDSW Mode Switch Function Block
Revision 11 HC900 Hybrid Control Designer Function Block Reference Guide 209
2/07
All inputs are OFF to ON edge-triggered, requiring a separate input for each action. The example shows
digital inputs as the transfer inputs but any digital status could be used.

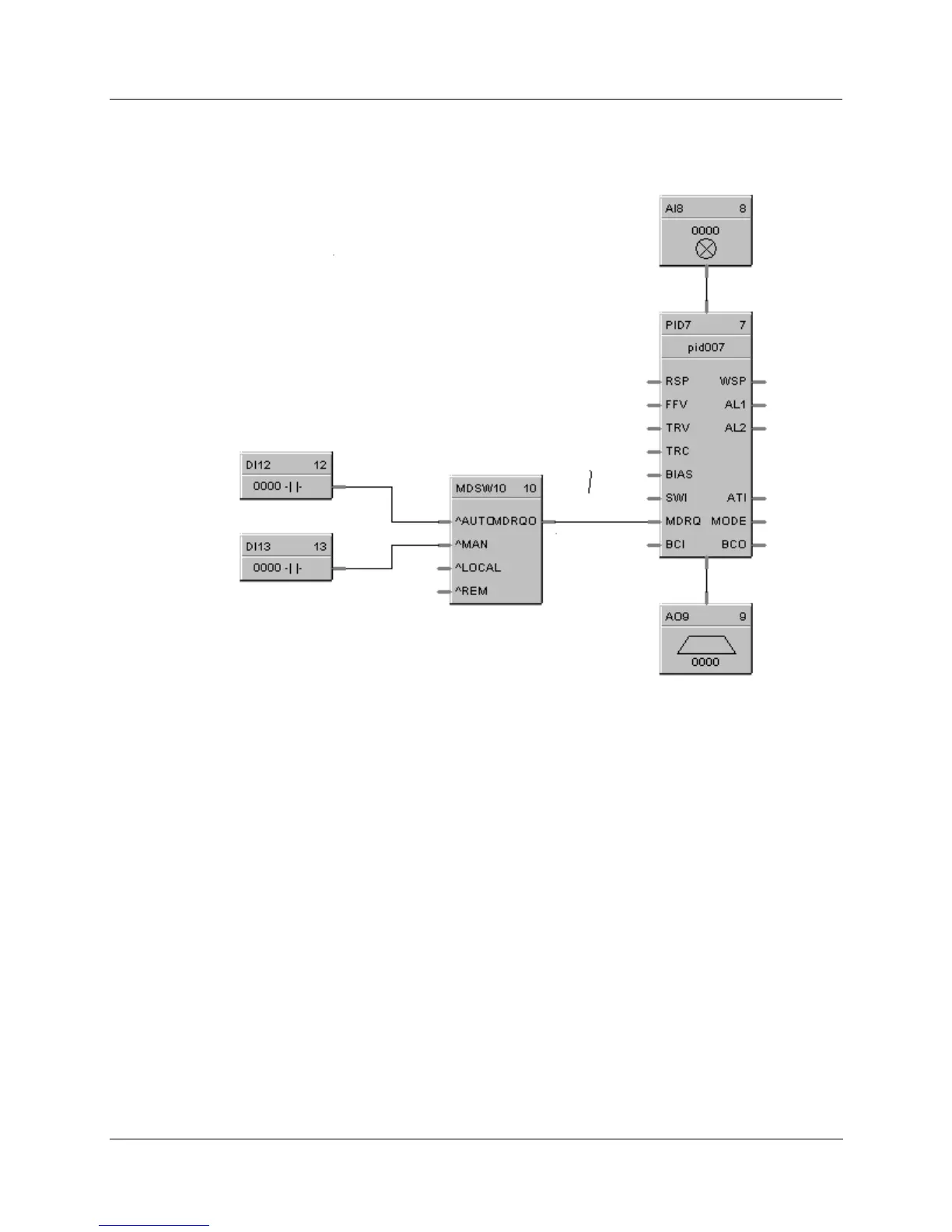

Figure 53 MDSW function block example
