Honeywell HC900 Reference Guide

Function Blocks
DO Function Block
146 HC900 Hybrid Control Designer Function Block Reference Guide Revision 11
2/07

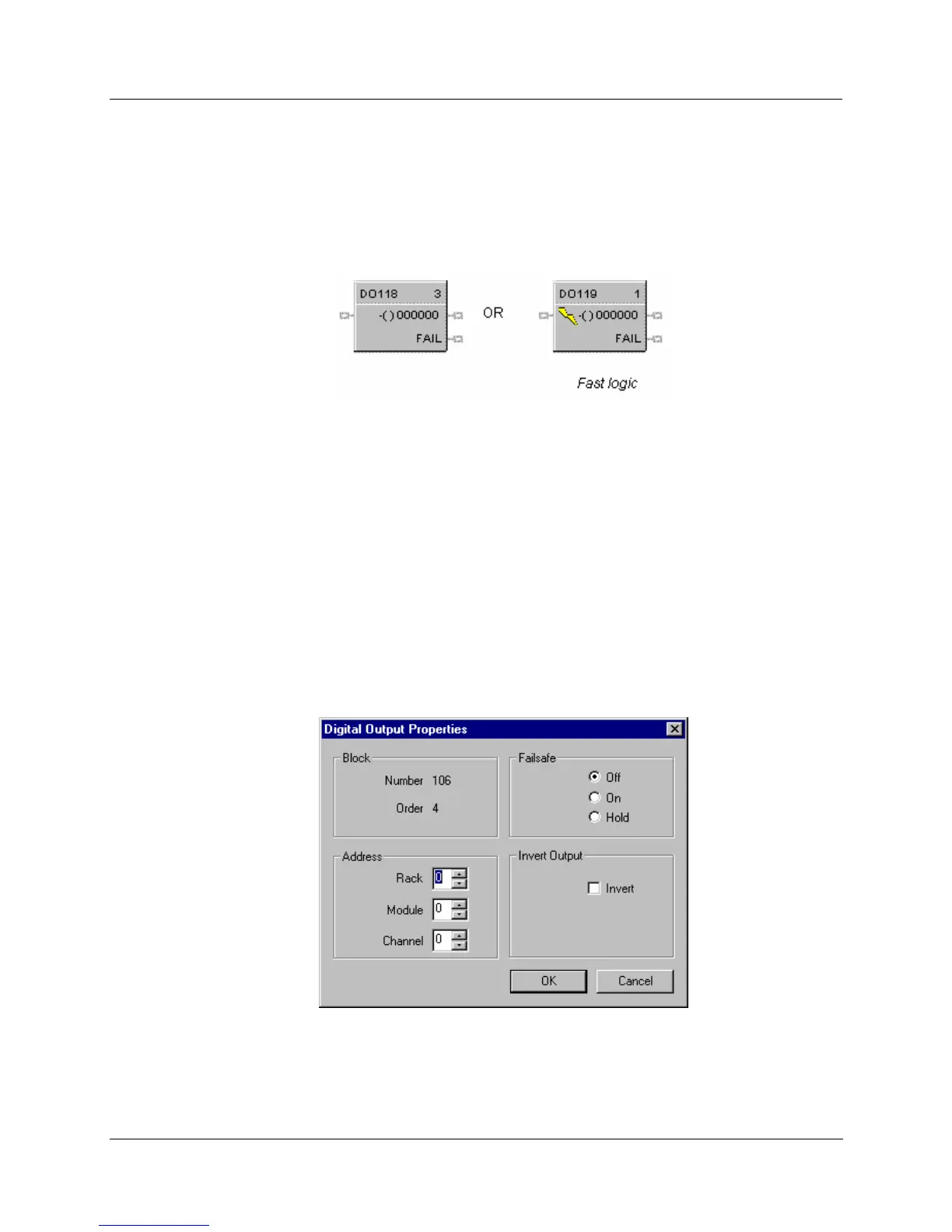

DO Function Block
Description
The DO label stands for Digital Output.
This block is part of the
I/O Blocks categories.
Function
Provides a digital status from the algorithms and functions to physical logic output hardware. Each block
requires a module and channel number during configuration. The output status may be inverted.
Input
X
= Input Status Signal
Output
FAIL
= Failed Output Indication - Module Error
Block properties
Double click on the function block to access the function block properties dialog box.
