Function Blocks
AGA8GS Function Block
Revision 11 HC900 Hybrid Control Designer Function Block Reference Guide 25
2/07

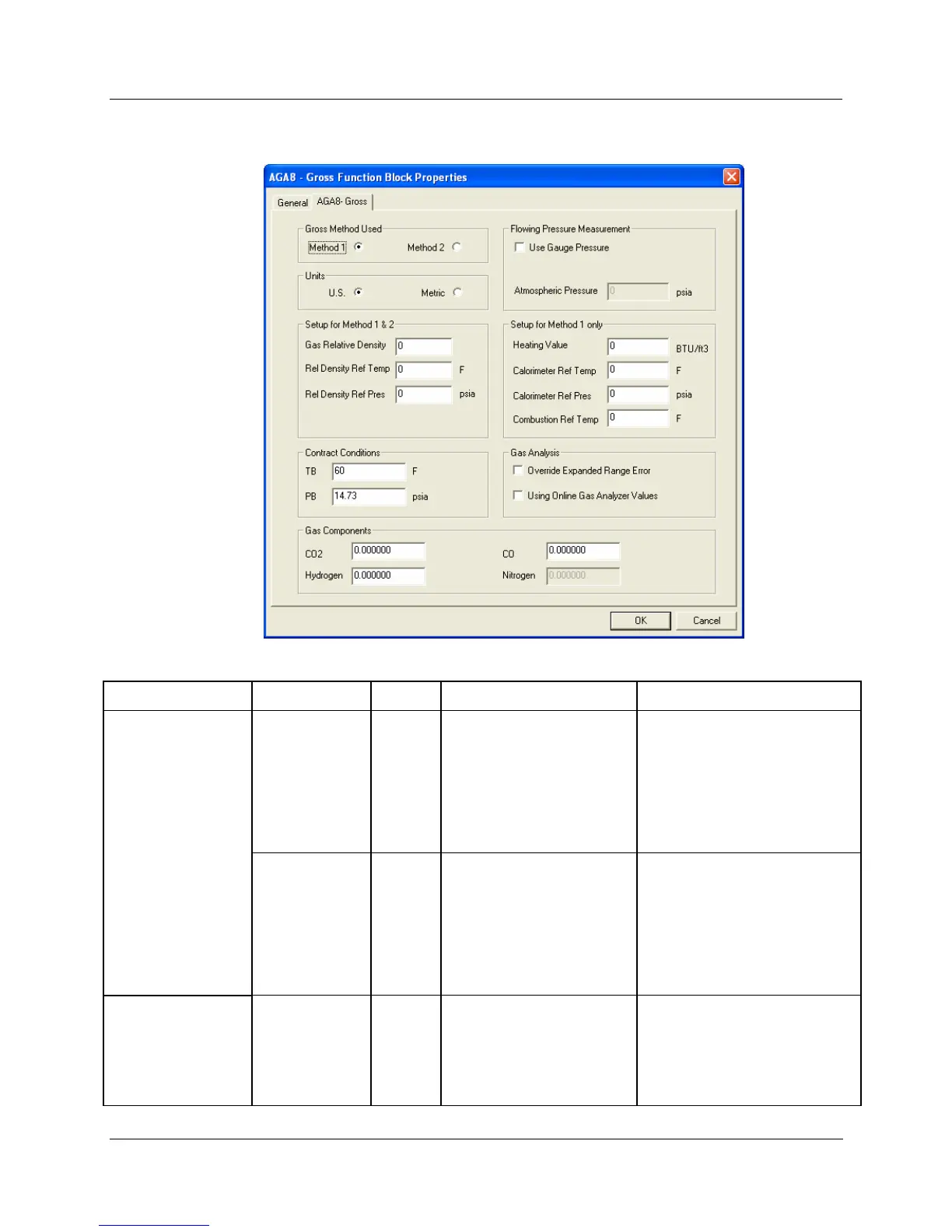

AGA8 – Gross tab
Table 7 AGA8GS Detail tab configuration parameters
Properties Group Parameter Index # Parameter Description Value or Selection
Method 1
Gross Method 1 calculates
the super-compressibility
and gas density from
knowledge of the relative
density, heating value and
carbon dioxide, hydrogen
and carbon monoxide
components.
Click on Radio Button to select
Gross Method
Used
Method 2
Gross Method 2 calculates
the super-compressibility
and gas density from
knowledge of the relative
density, Nitrogen, carbon
dioxide, hydrogen and
carbon monoxide
components.
Click on Radio Button to select
Contract
Conditions
TB
Defines the Base or
Contract Temperature to
calculate volume flow rate
at contract conditions in the
units selected by the UNITS
configuration parameter.
ºF for U.S Units
ºC for Metric Units
