Function Blocks
DLAY Function Block
Revision 11 HC900 Hybrid Control Designer Function Block Reference Guide 145
2/07
OUT - For On Delay, output turns ON when timer expires. For Off Delay, output turns OFF when timer
expires.
Block properties

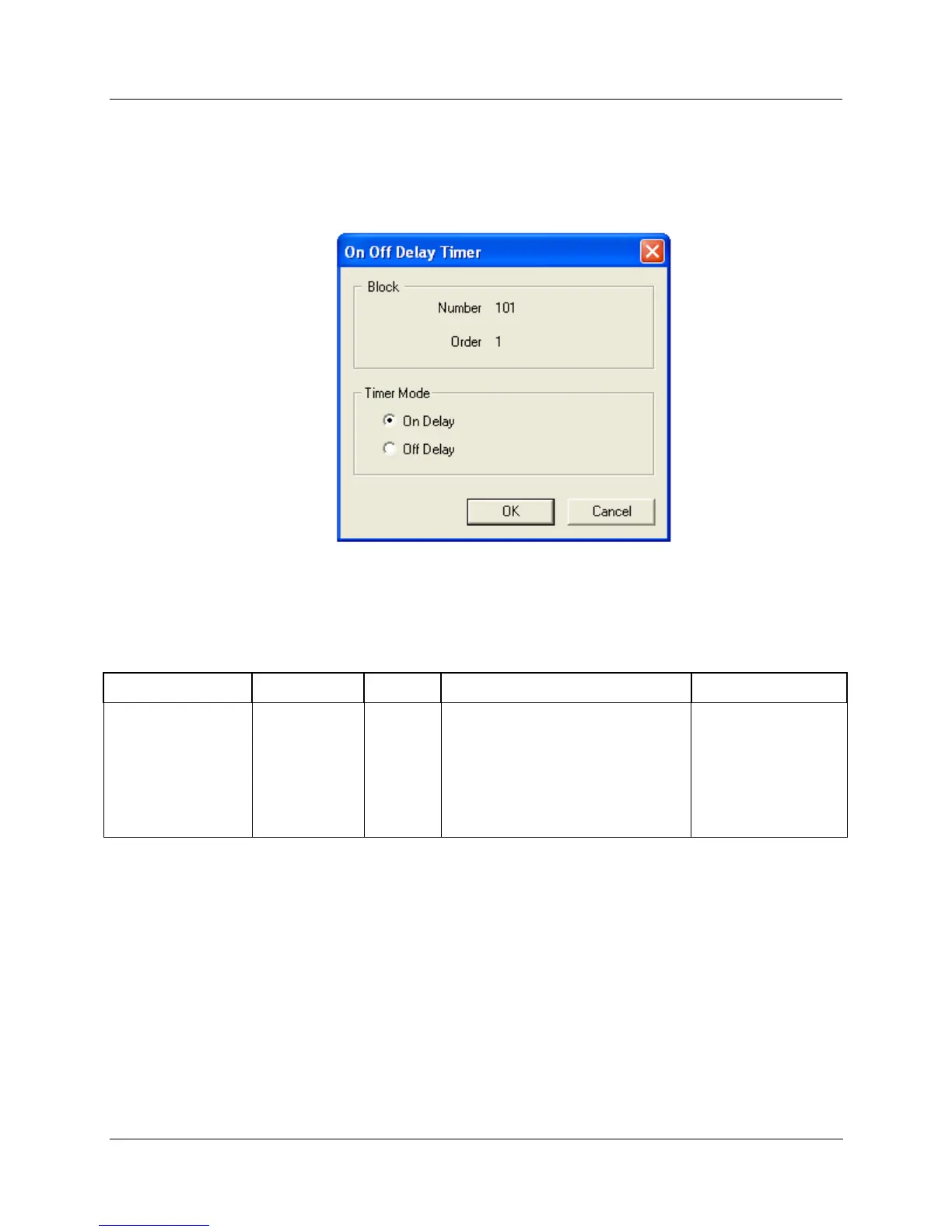

Double click on the function block to access the function block properties dialog box.
Configuration parameters
Table 44 On Delay/Off Delay configuration parameters
Properties Group Parameter Index # Parameter Description Value or Selection
Timer Mode On Delay
Off Delay
0
On Delay: output turns ON after
countdown from TSPI value.
Off Delay: output turns OFF after
countdown from TSPI value.
The block’s graphic indicates the
type of delay. See figures above.
Click Radio Button to
select.
