Honeywell HC900 Reference Guide

Function Blocks
FGEN Function Generator Function Block
156 HC900 Hybrid Control Designer Function Block Reference Guide Revision 11
2/07
Block properties

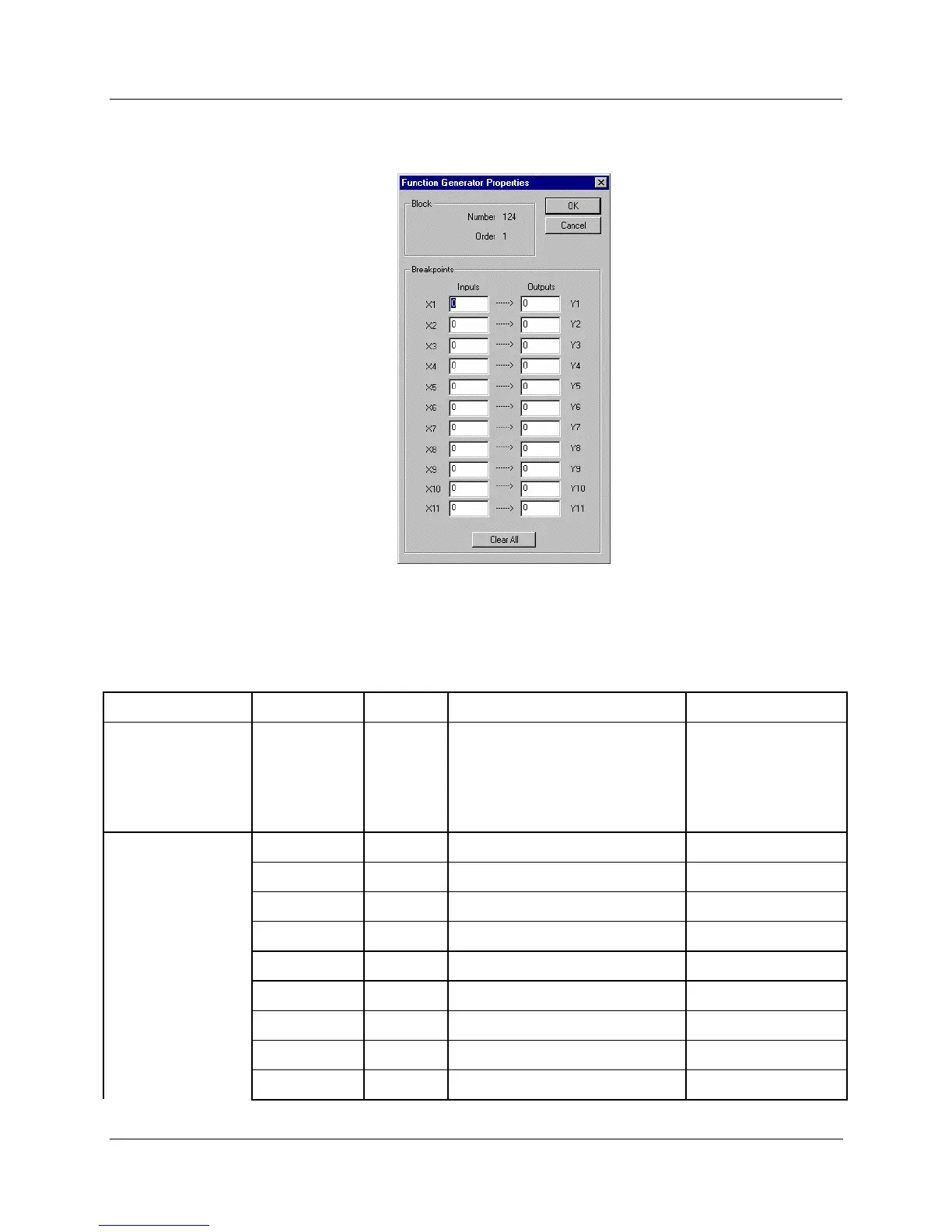

Double click on the function block to access the function block properties dialog box.
Configuration parameters
Table 47 Function generator configuration parameters
Properties Group Parameter Index # Parameter Description Value or Selection
Block Block Order
Execution order of the block.
Read Only. To
change block order,
right-click on a
Function Block and
select Execution
Order.
Breakpoints X1
0 X-value at Input Breakpoint 1 –99999 to 999999
X2
1 X-value at Input Breakpoint 2 –99999 to 999999
X3
2 X-value at Input Breakpoint 3 –99999 to 999999
X4
3 X-value at Input Breakpoint 4 –99999 to 999999
X5
4 X-value at Input Breakpoint 5 –99999 to 999999
X6
5 X-value at Input Breakpoint 6 –99999 to 999999
X7
6 X-value at Input Breakpoint 7 –99999 to 999999
X8
7 X-value at Input Breakpoint 8 –99999 to 999999
X9
8 X-value at Input Breakpoint 9 –99999 to 999999
