Honeywell HC900 - Figure 71 PID Function Block Example

Function Blocks
PID Function Block
Revision 11 HC900 Hybrid Control Designer Function Block Reference Guide 287
2/07
Example 1 - Basic PID configuration example

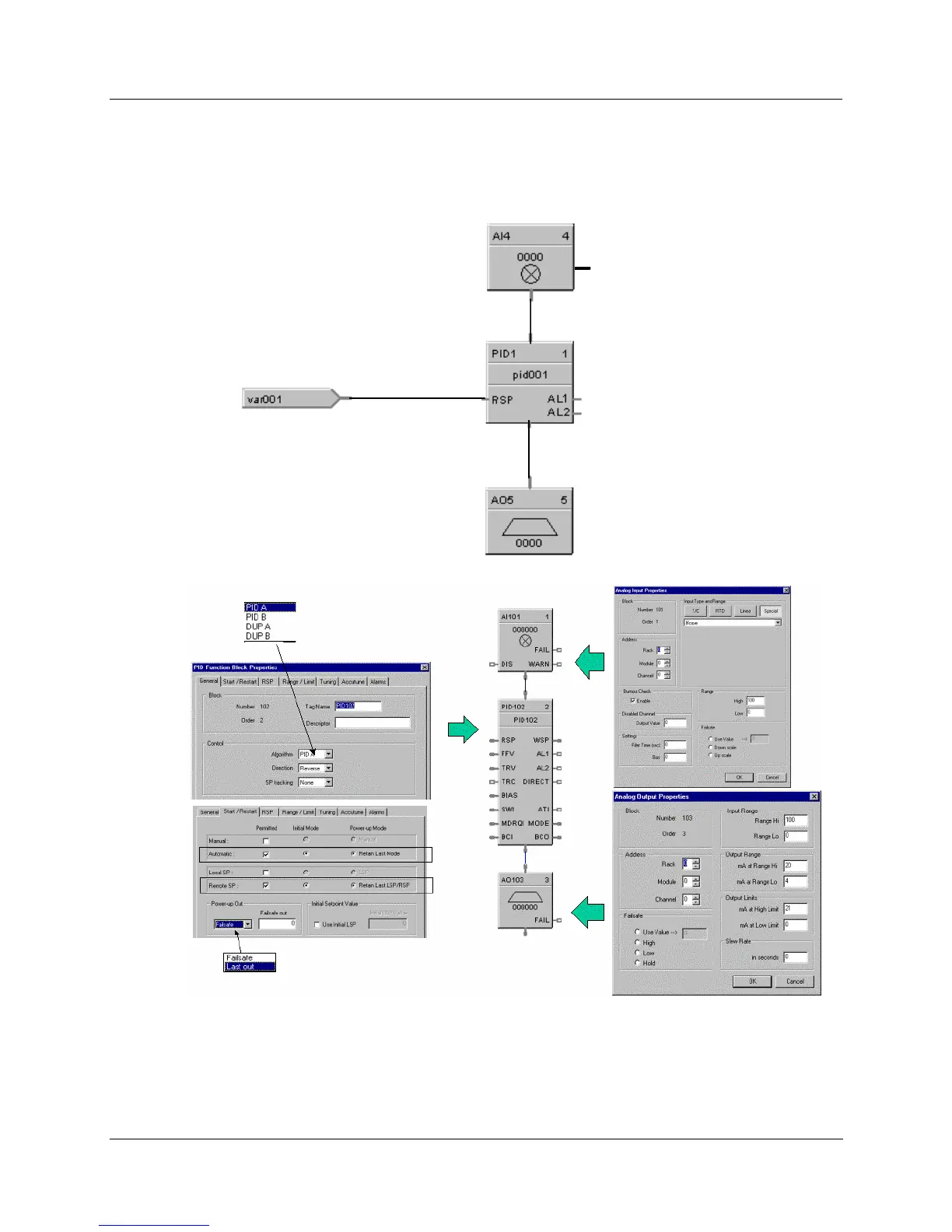

HFigure 71 shows a Function Block Diagram using a simplified PID Configuration (reference only) and its
basic Configuration.
Analog Input block
PID Block (Simplified)
Analog Output Block
Analog Variable- used to provide
a remote setpoint value.
Remote Setpoint Input
Alarm Outputs (Digital Signal)
FAIL
Figure 71 PID function block example
