Example 2 - PID with setpoint programmer and event outputs
The SP programmer event output status may be directed to
digital outputs, part of control logic, or be directed to signal
tags for use anywhere within the control configuration.

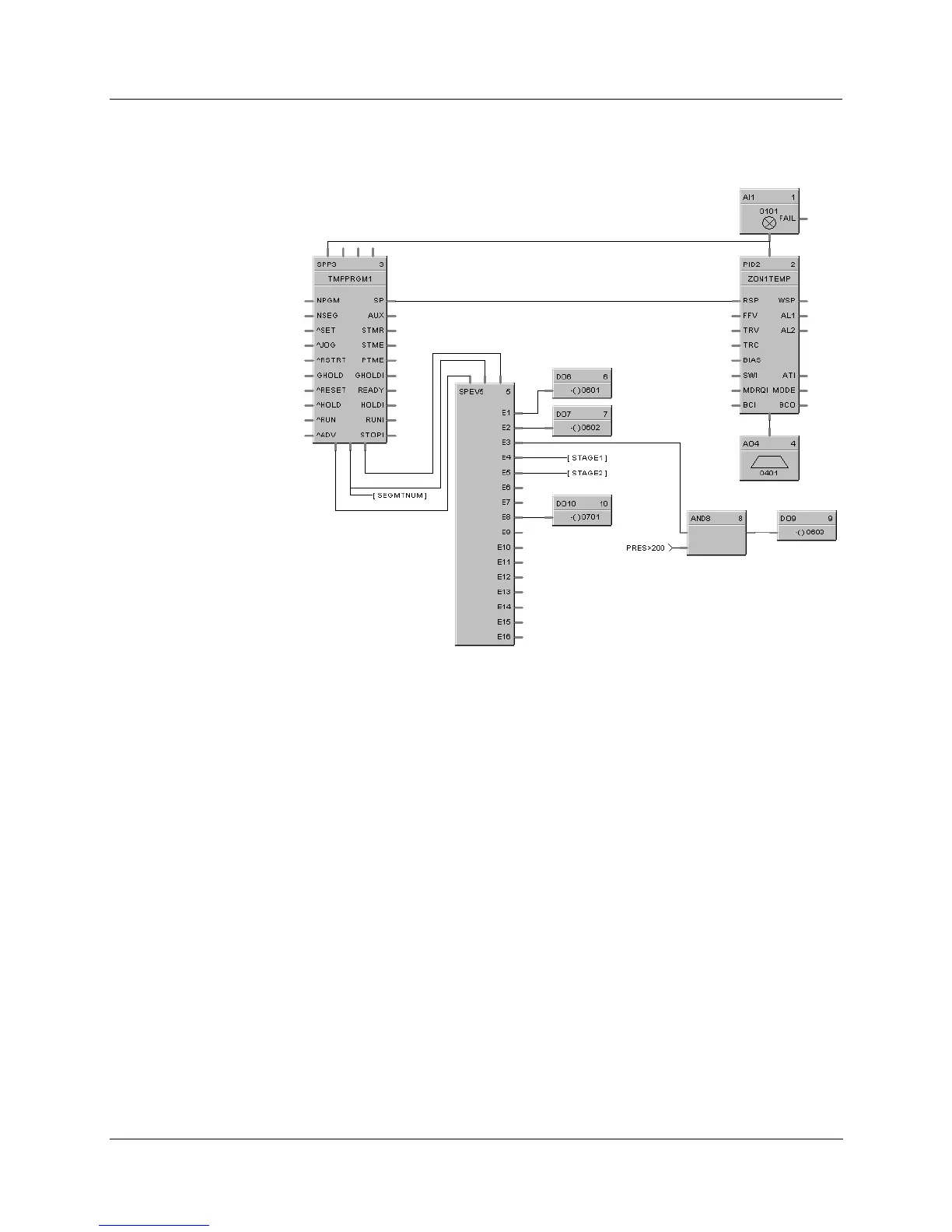

Figure 97 PID with setpoint programmer and event outputs
