Honeywell HC900 - Figure 113 TGFF Function Block Example

Function Blocks
TGFF Toggle Flip Flop Function Block
Revision 11 HC900 Hybrid Control Designer Function Block Reference Guide 401
2/07
Example

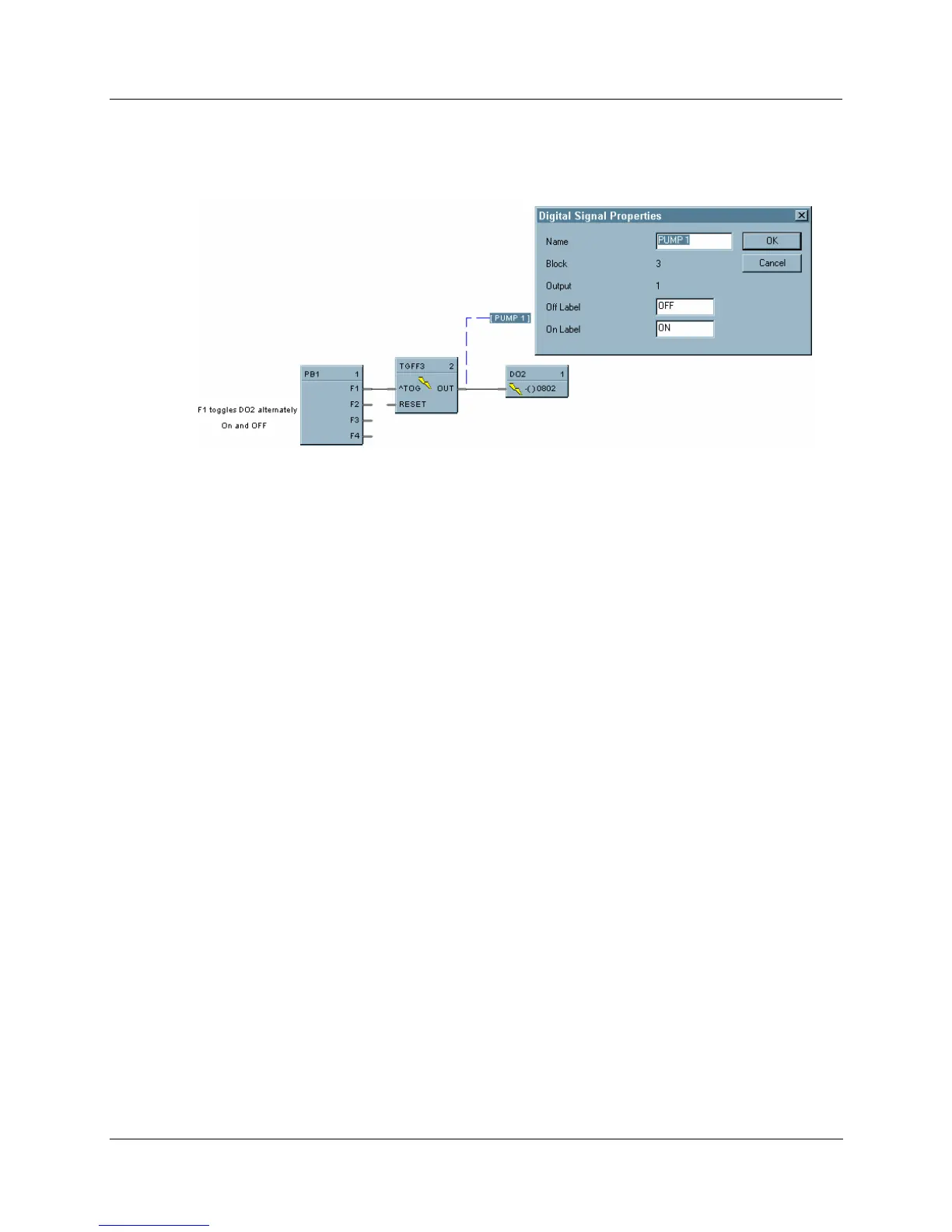

HFigure 113 shows a Function Block Diagram using a TGFF function block and how to tag the output.
Figure 113 TGFF function block example
