Honeywell HC900 - Figure 84 RCP Function Block Example

Function Blocks
RCP Recipe Selector Function Block
Revision 11 HC900 Hybrid Control Designer Function Block Reference Guide 319
2/07
Example

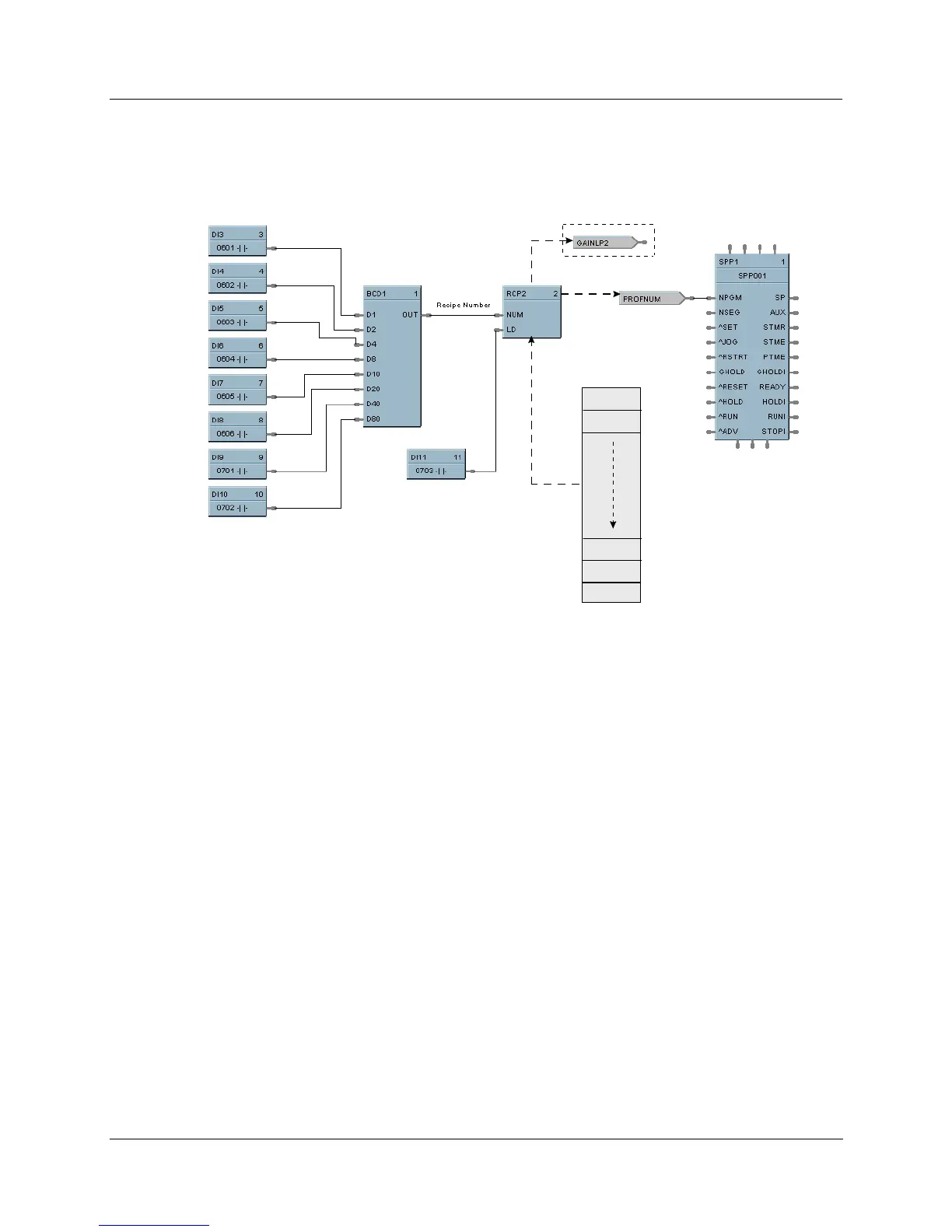

HFigure 84 shows a Function Block Diagram using an RCP function block. The BCD block selects a recipe
number and the RCP block loads the recipe in place of the current set of recipe variables.
PROFNUM
Up to 50 Analog/Digital
Variables
GAIN-LP2
SP-OUT2
SP-OUT3
SP-OUT4
Recipe Table
Recipe
Number
Figure 84 RCP function block example
