Function Blocks
WTUN Write Tuning Constants Function Block
Revision 11 HC900 Hybrid Control Designer Function Block Reference Guide 433
2/07
Target block number
Double click on the function block to access the “Target Block Number” dialog box.
Enter the Target Block number in the appropriate field.
Selections are from 101 to 500(Model C30), 101
to 2100 (Model C50), 101 to 5100 (Model C70/C70R).
Example

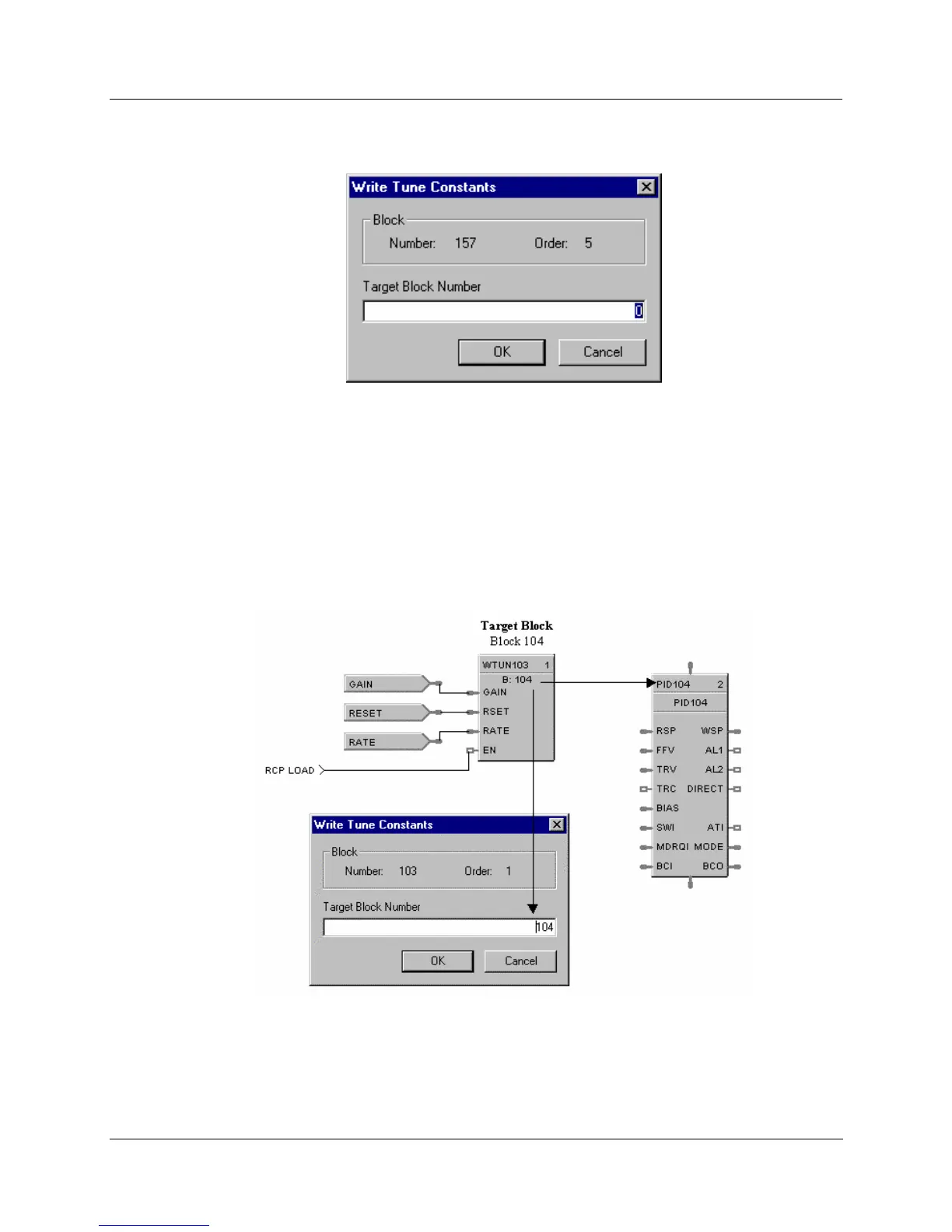

HFigure 121 shows a Function Block Diagram using a WTUN function block to write Tuning Parameters to
a PID function block.
Figure 121 WTUN function block example
