Function Blocks
MBS Modbus Slave Function Block
Revision 11 HC900 Hybrid Control Designer Function Block Reference Guide 203
2/07
Example

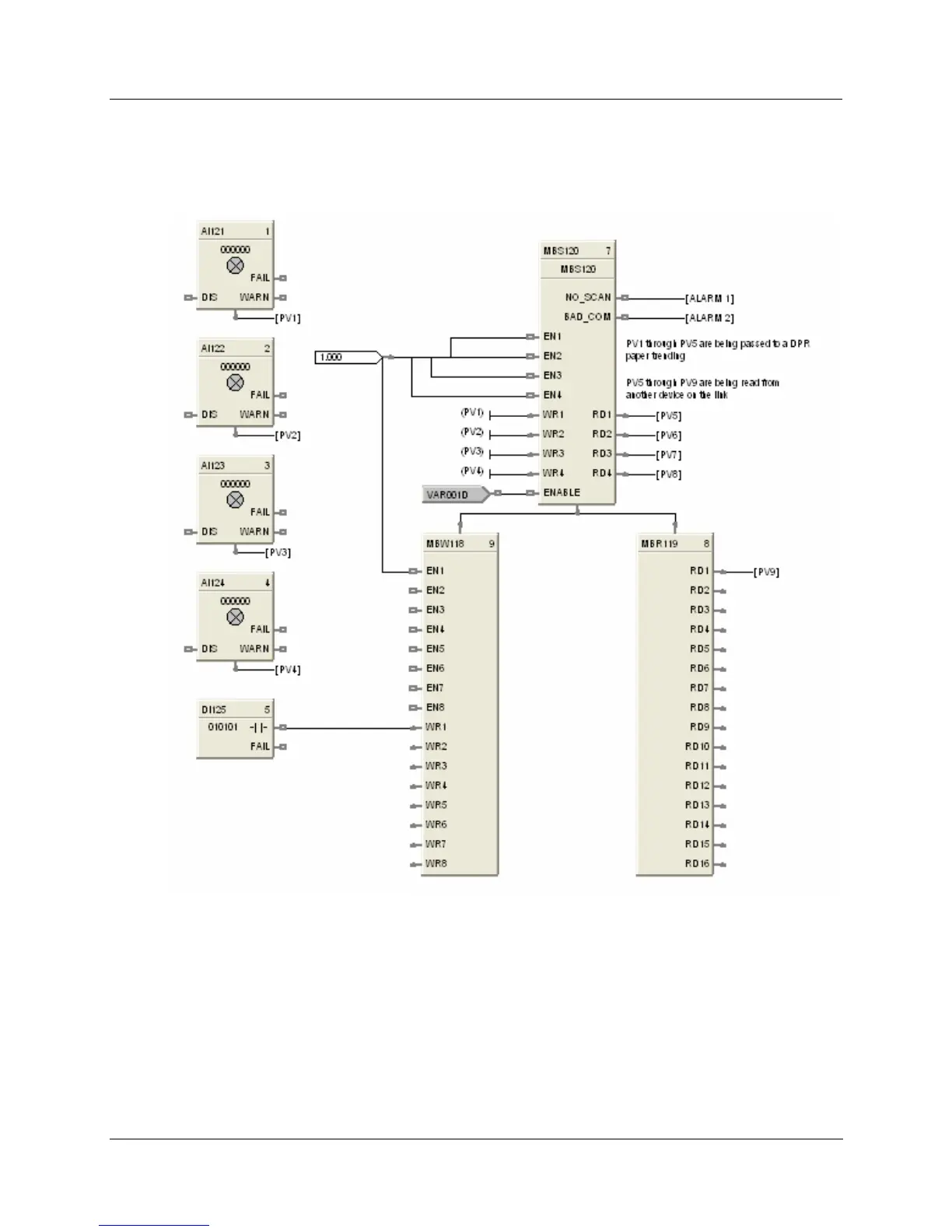

HFigure 51 shows a Function Block Diagram using Modbus function blocks.
Figure 51 MBS function block example
