Function Blocks
SCB Scale and Bias Function Block
334 HC900 Hybrid Control Designer Function Block Reference Guide Revision 11
2/07
Configuration parameters
Table 98 SCB configuration parameters
Properties Group Parameter Index # Parameter Description Value or Selection
Scale Factor
0 K - Multiplier (scaling) constant –99999 to 99999
Bias
1
Bias Constant - is used to
compensate the input for drift of
an input value due to
deterioration of a sensor, or
constant offset to an input.
–99999 to 99999
Example

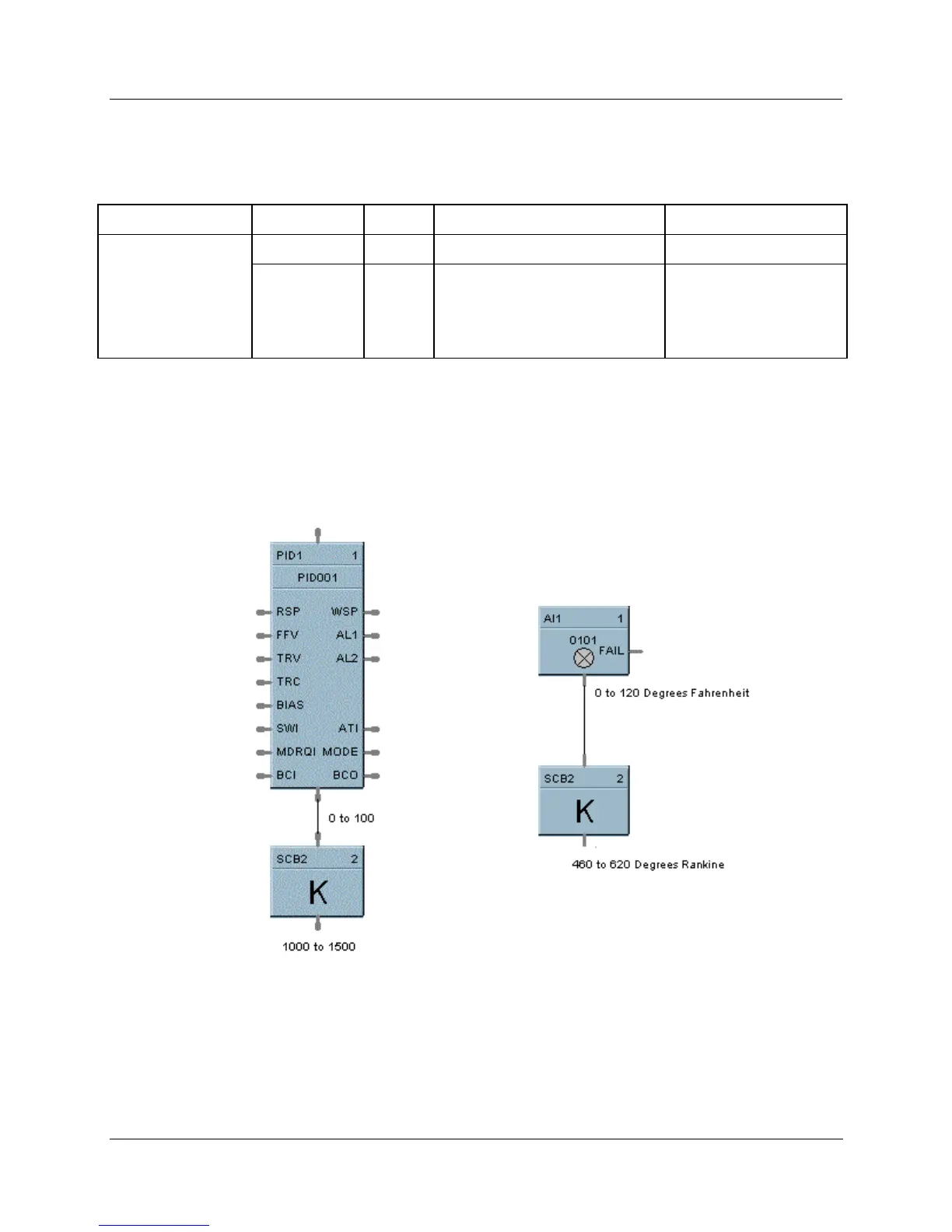

HFigure 91 shows function block diagrams using a SCB function block.
Example 1
Scale Factor = 5
Bias = 1000
Example 2
Scale Factor = 1
Bias = 460
Figure 91 SCB function block examples
