Function Blocks
FSS Four Selector Switch Function Block
Revision 11 HC900 Hybrid Control Designer Function Block Reference Guide 165
2/07
Block properties

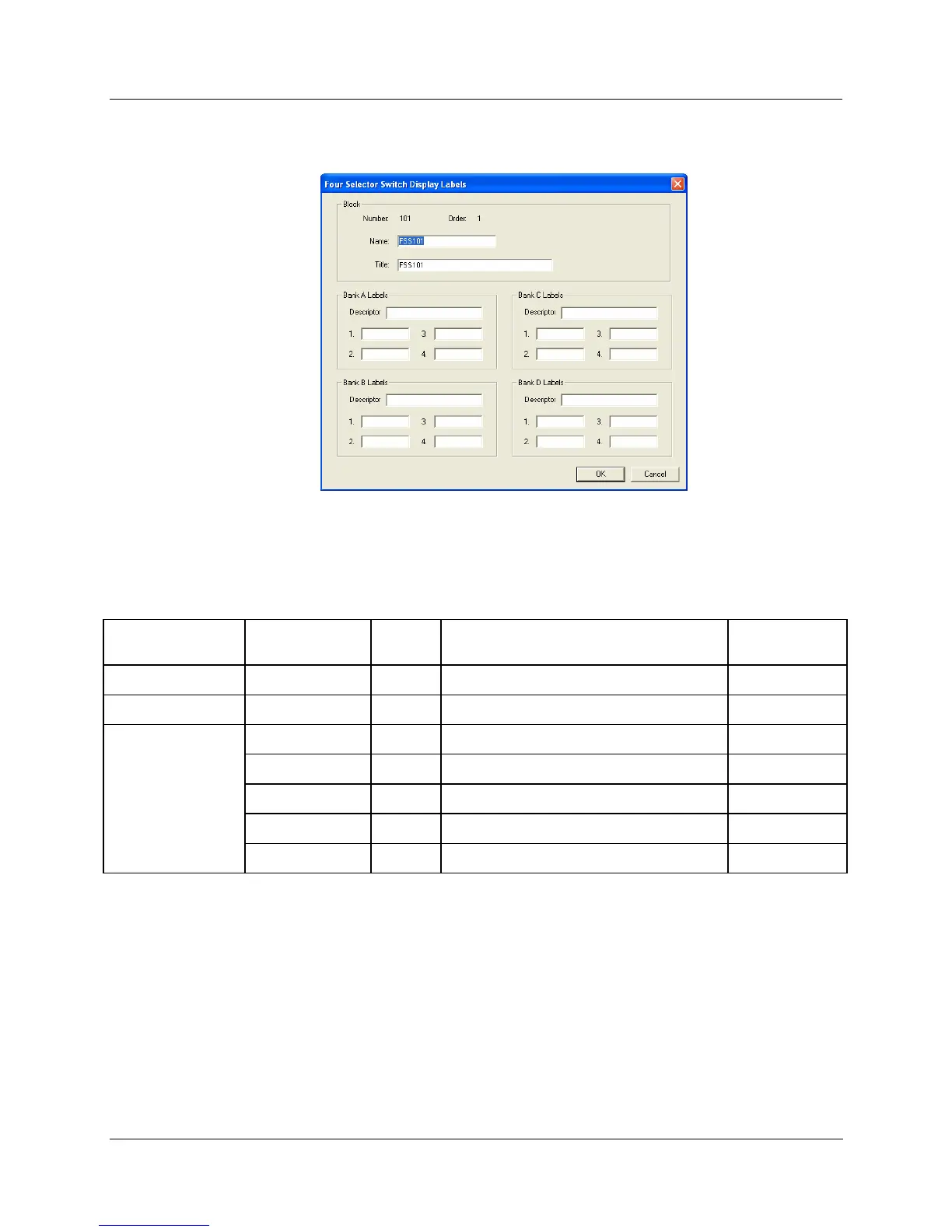

Double click on the function block to access the function block properties dialog box.
Configuration parameters
Table 50 Four selector switch configuration parameters for operator interface display
Properties Group Parameter Index # Parameter Description
Value or
Selection
Name
Enter a Tag Name for the block 16 Characters
Title
Enter a Title for the block 24 characters
Descriptor
Enter a Descriptor for Bank x Labels 16 characters
Bank x Label 1
Enter a label name for display 6 characters
Bank x Label 2
Enter a label name for display 6 characters
Bank x Label 3
Enter a label name for display 6 characters
Bank x Labels
X = A, B, C, or D
Bank x Label 4
Enter a label name for display 6 characters
