Function Blocks
2AND Function Block
Revision 11 HC900 Hybrid Control Designer Function Block Reference Guide 71
2/07

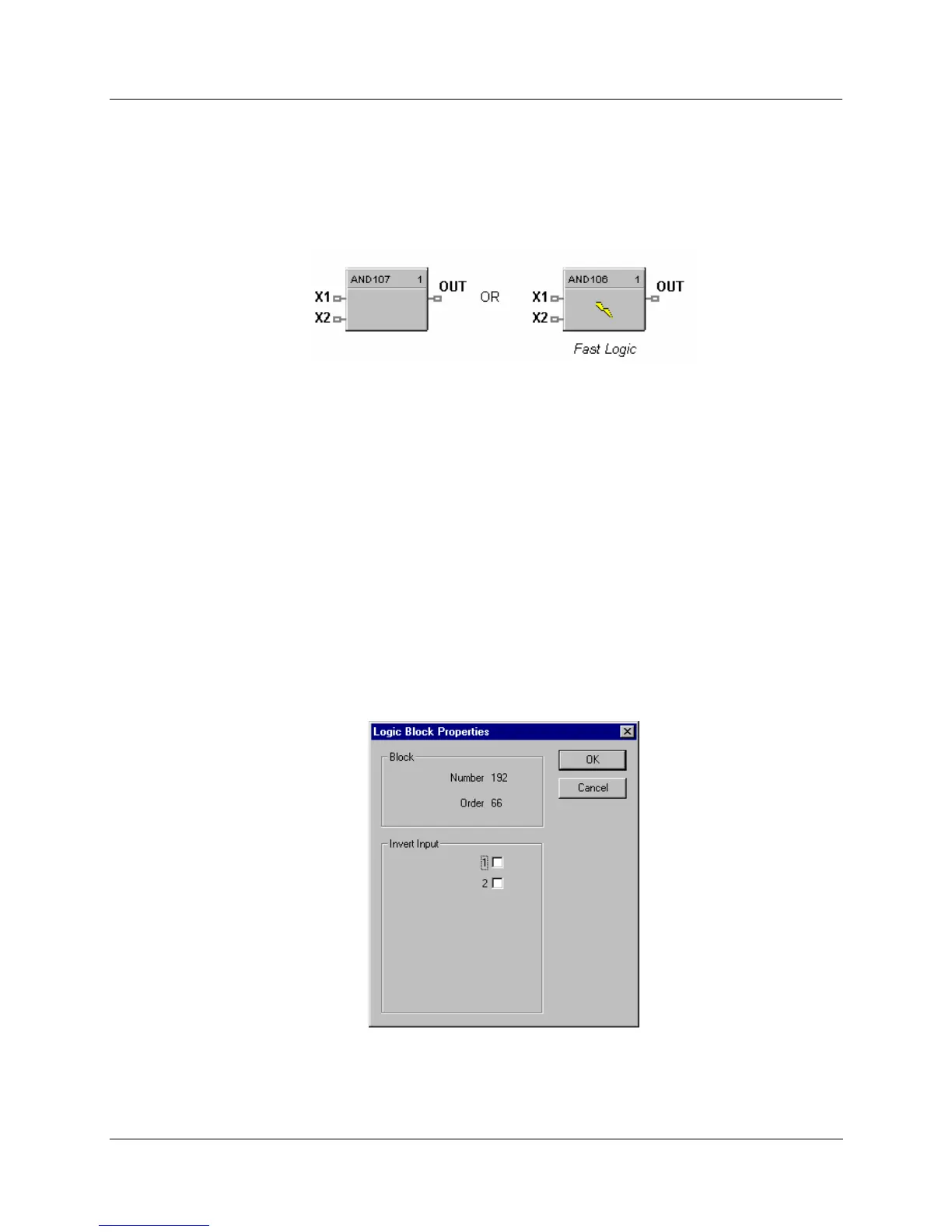

2AND Function Block
Description
The 2AND label stands for the AND Boolean function (2 Inputs).
This block is part of the
Logic and Fast Logic categories.
Function
Turns digital output (OUT) ON when inputs X1 and X2 are ON. Thus,
• If all inputs are ON, then: OUT = ON.
• If any input is OFF, then: OUT = OFF.
Input
X1
= First digital signal.
X2 = Second digital signal.
Output
OUT
= Digital signal controlled by status of input signals.
Block properties
