Honeywell HC900 - Figure 12 ALT Function Block Example

Function Blocks
ALT Alternator Function Block
Revision 11 HC900 Hybrid Control Designer Function Block Reference Guide 63
2/07
Example

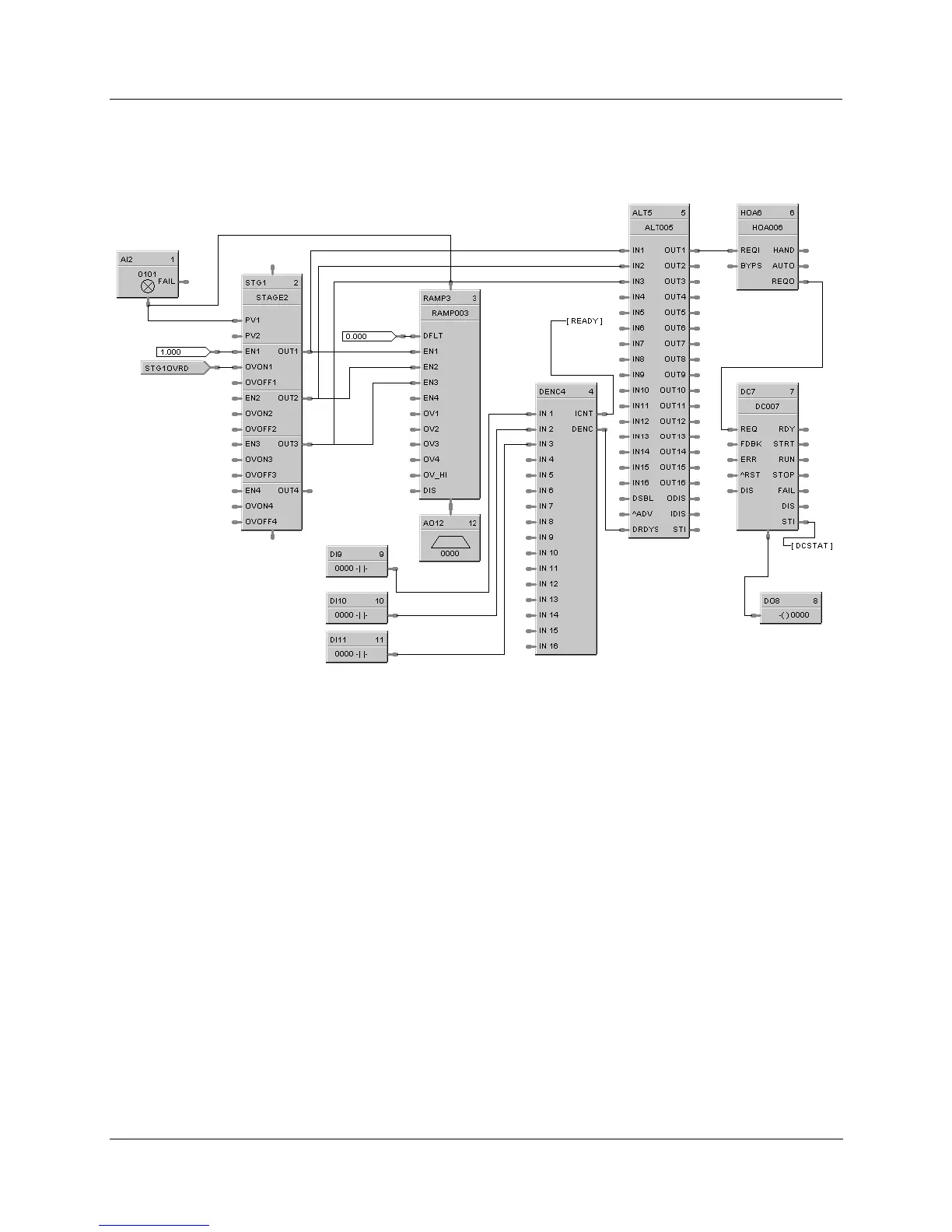

HFigure 12 shows a function block diagram using an ALT function block.
Pump
Available
Inputs
To HOA and
DC blocks for
Outputs 2 & 3
Output #1
Figure 12 ALT function block example
