Function Blocks
HSEL High Selector Function Block
Revision 11 HC900 Hybrid Control Designer Function Block Reference Guide 177
2/07
HSEL High Selector Function Block
Description
The HSEL label stands for High Selector.
This block is part of the
Signal Selectors category.
Function

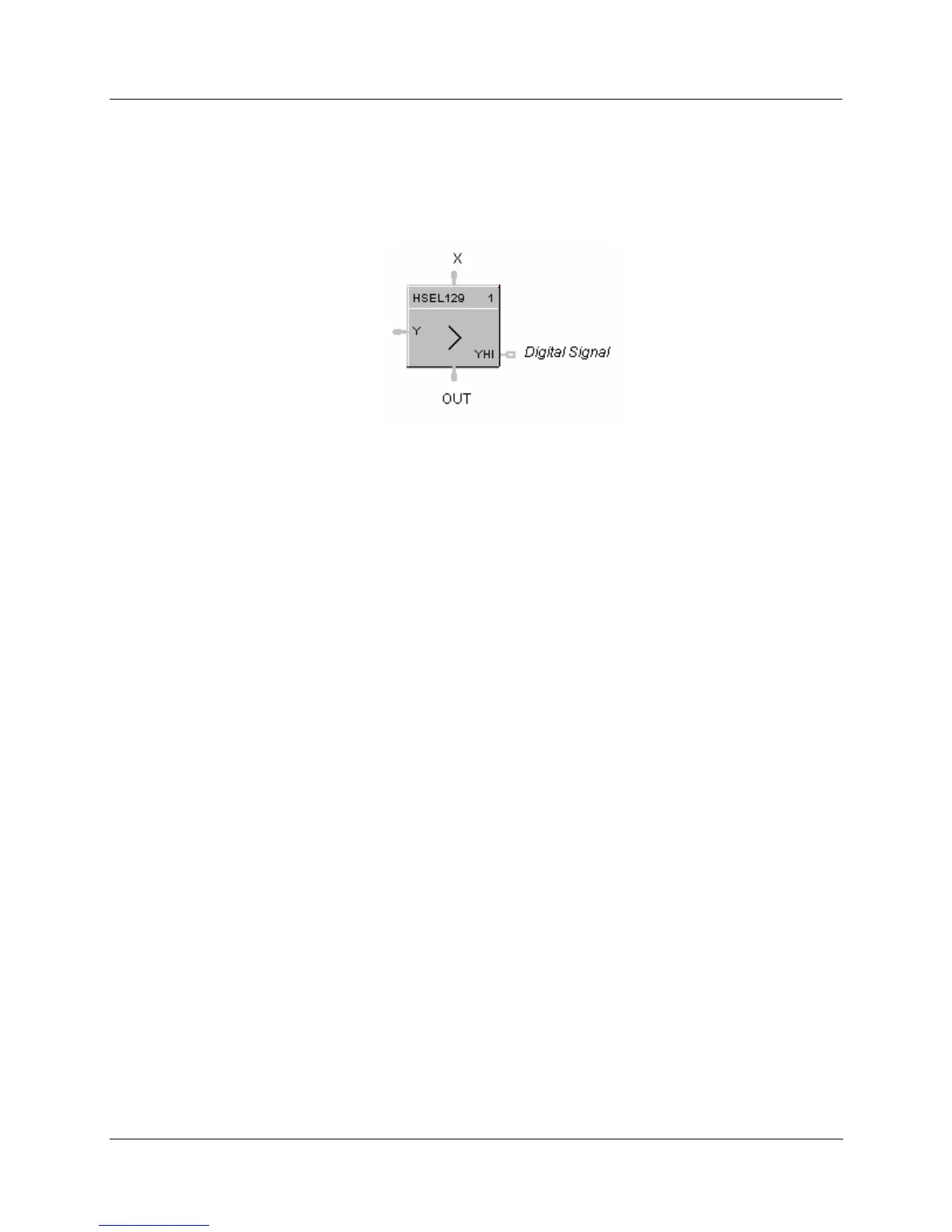

Selects higher of two analog input values (X and Y) for output.
Indicates when Y is higher than X.
• If X > or = Y, then: OUT = X; YHI = OFF.
• If X < Y, then: OUT = Y; YHI = ON.
Input
X
= Analog value
Y = Analog value
Output
OUT
= Higher analog value
YHI = Digital signal. (ON when Y>X.)
Block properties
Double click on the function block to access the function block properties dialog box.
