Function Blocks
TCPS Function Block
Revision 11 HC900 Hybrid Control Designer Function Block Reference Guide 391
2/07
READ tab

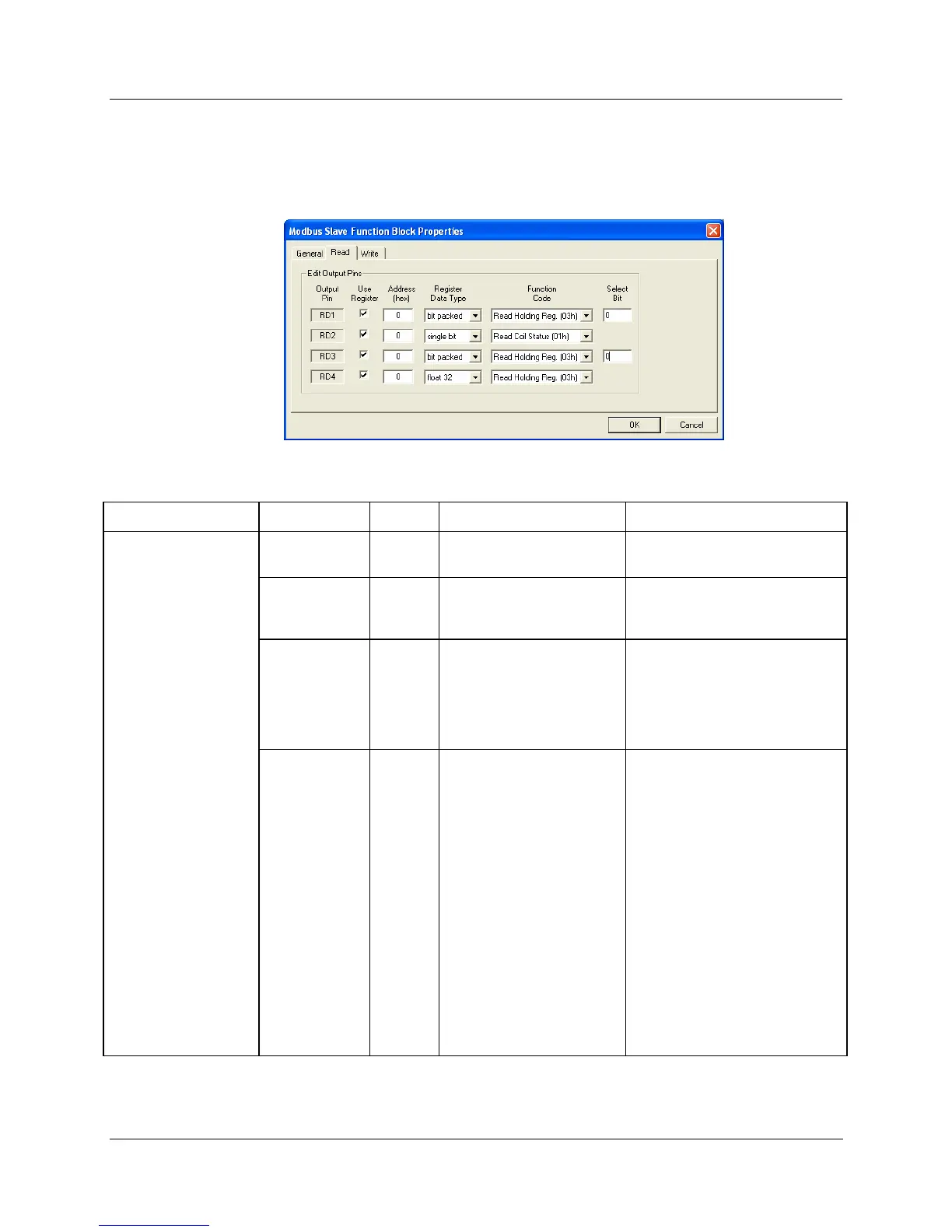

It looks like this graphically. HTable 112 describes the parameters and the value or selection.
Table 112 TCPS Block Read tab configuration parameters
Properties Function Parameter Index # Parameter Description Value or Selection
Edit Output Pins Output Pin
1 Output pin designation
Register request assigned to
RD1, RD2, RD3, or RD4 pin
Use Register
2 Register Request
Click on the “Use Register” field
to assign a register to the
Output pin.
Address
(hex)
N/A Register Address
Type in the address of the
Read register (in Hex) on the
slave device
NOTE: A single configuration
may contain up to 256
enabled registers.
Register
Data Type
N/A Register data type
From the drop down menu,
select the Register Data Type
• Float
• Unsigned 32
• Signed 32
• Unsigned 16
• Signed 16
• Bit Packed
• Single Bit
If read as an integer, output is
converted to floating point
equivalent.
