Honeywell HC900 - Figure 19 BCD Function Block Example

Function Blocks
BCD Function Block
Revision 11 HC900 Hybrid Control Designer Function Block Reference Guide 85
2/07
Example

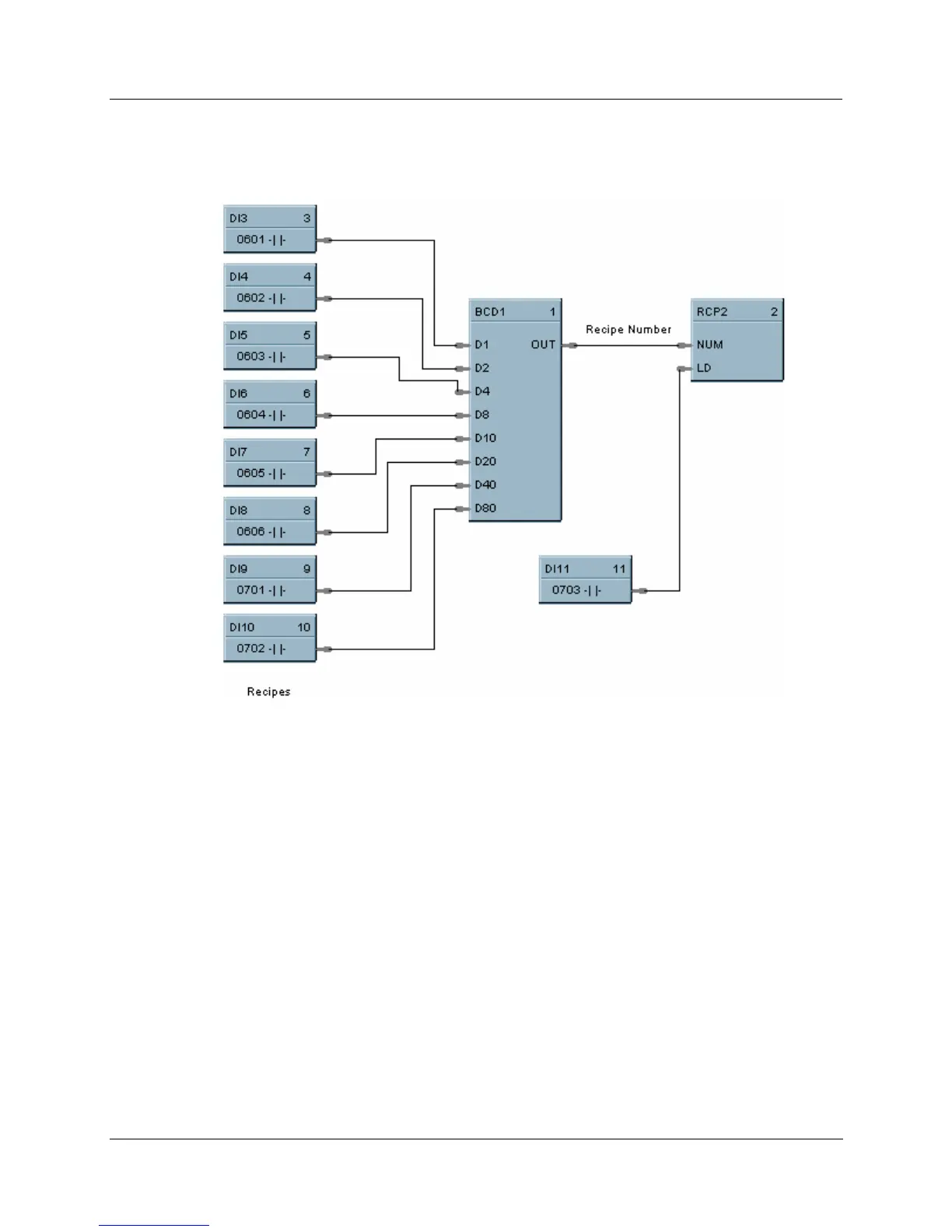

HFigure 19 shows a Function Block Diagram configuration using a BCD function block to select a Recipe.
Figure 19 BCD function block example
