Function Blocks
SW Analog Switch Function Block
Revision 11 HC900 Hybrid Control Designer Function Block Reference Guide 379
2/07
Example

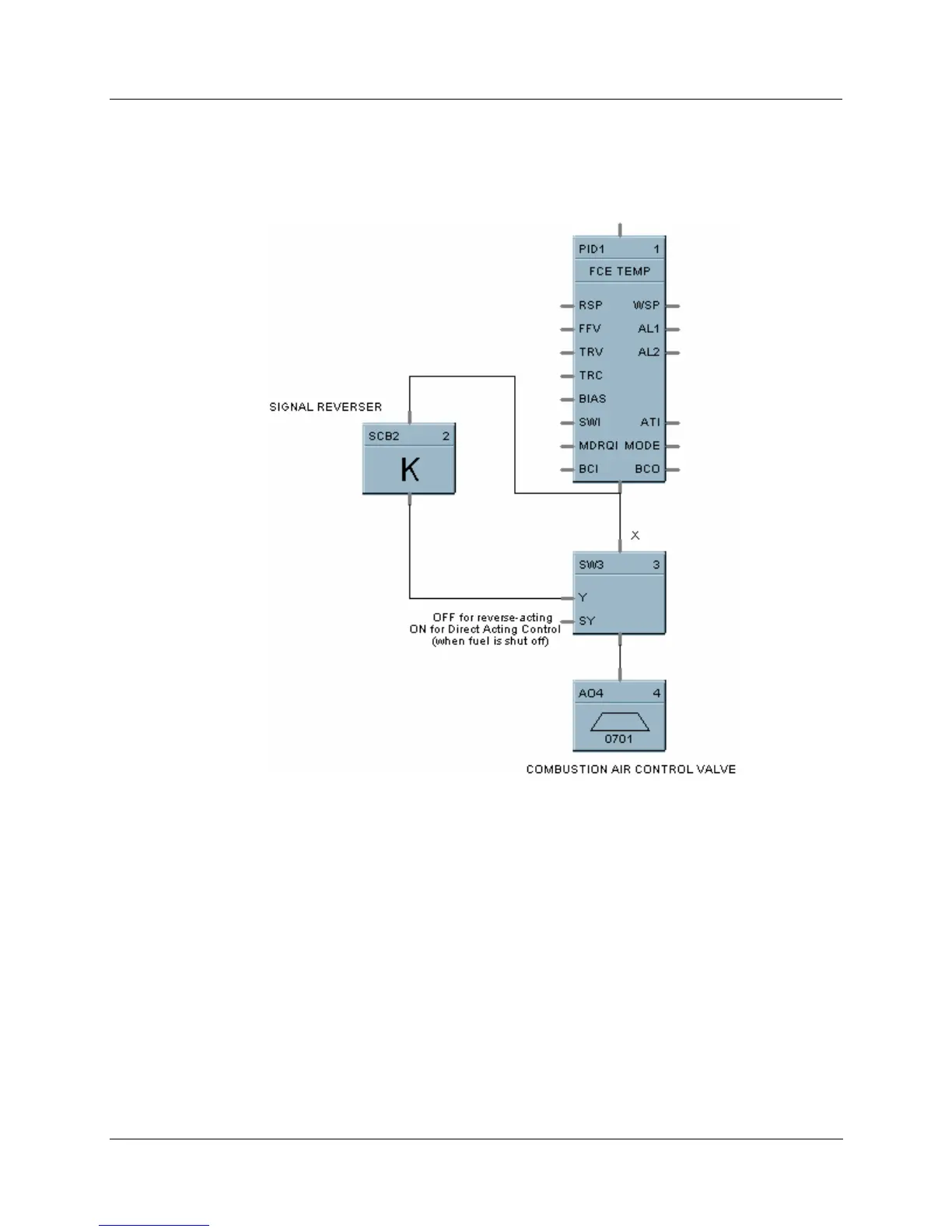

HFigure 107 shows a Function Block Diagram using an SW function block to select control signal for
output.
Figure 107 SW function block example
