AGA8DL Function Block
16 HC900 Hybrid Control Designer Function Block Reference Guide Revision 11
2/07
AGA8 - Detail tab

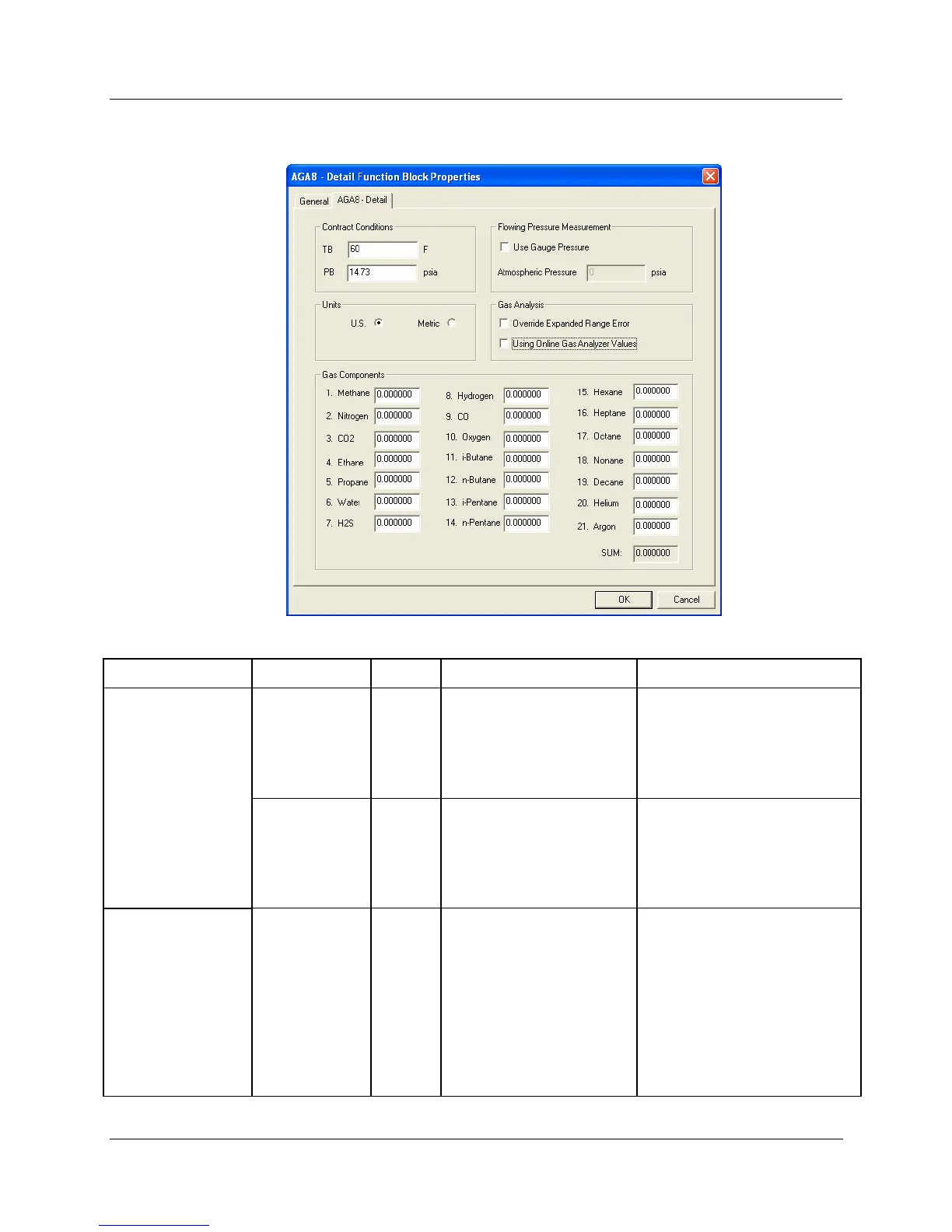

Table 4 AGA8DL Detail tab configuration parameters
Properties Group Parameter Index # Parameter Description Value or Selection
TB
Defines the Base or
Contract Temperature to
calculate volume flow rate
at contract conditions in the
units selected by the UNITS
configuration parameter.
ºF for U.S Units
ºC for Metric Units
Contract
Conditions
PB
Defines the Base or
Contract Pressure to
calculate volume flow rate
at contract conditions in the
units selected by the UNITS
configuration parameter.
psia for U.S Units
bar for Metric Units
Units U.S
Metric
Type of units for all block
inputs, outputs, and
configuration parameters:
This selection must agree
with the UNITS selection in
the meter block. If they
don’t agree, no error will be
indicated on the error/calc
status pins. The Meter
block will detect the error,
and will alert the user.
Click Radio Button to select.
Ensure that units and gauge
pressure settings are
consistent with the meter
block.
