Honeywell HC900 - Figure 68 PDE Function Block Example

Function Blocks
PDE Peer Data Exchange Function Block
258 HC900 Hybrid Control Designer Function Block Reference Guide Revision 11
2/07
Example
The problem that is being addressed is to control a PID in Unit 2 from a recipe and OI located on unit 1.

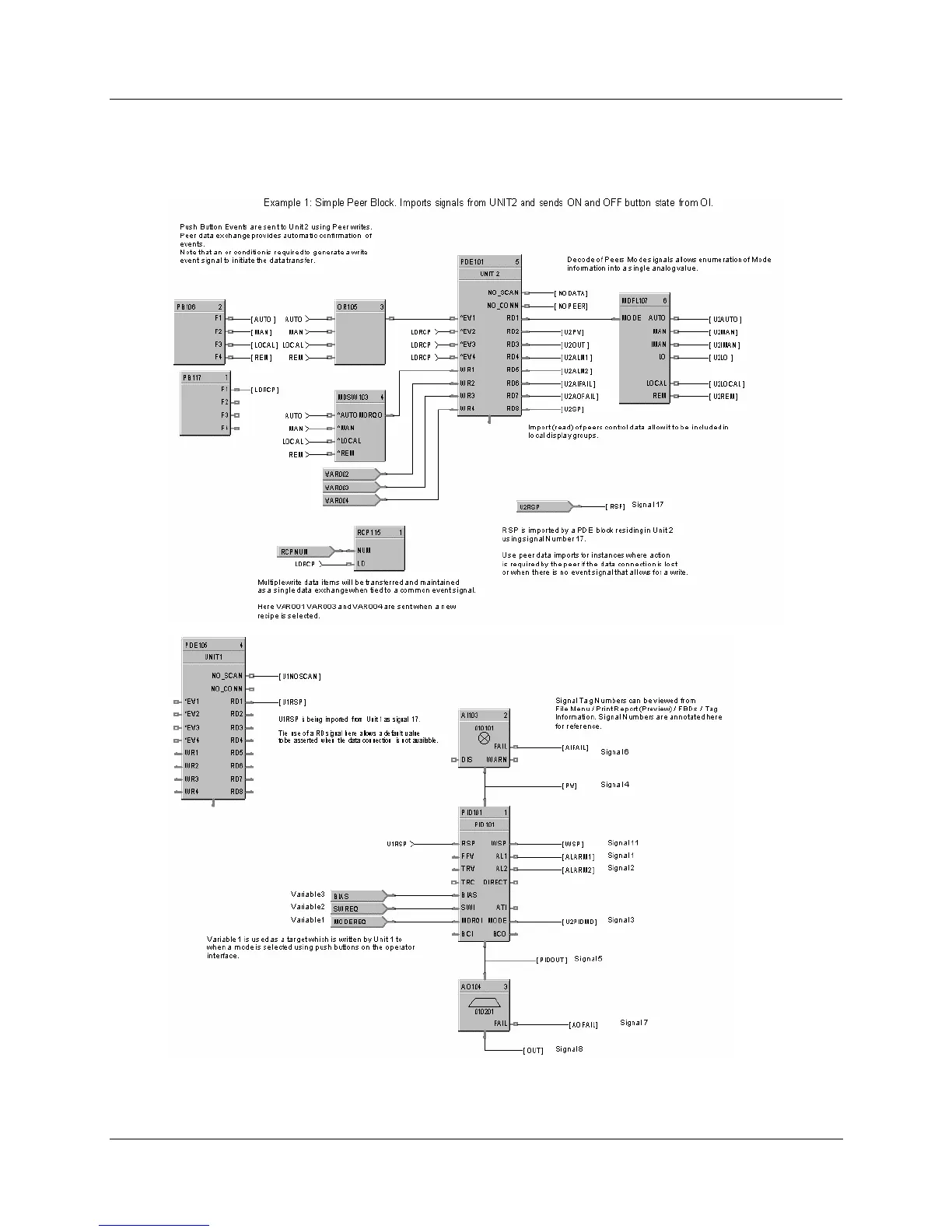

Figure 68 PDE Function Block Example
