HOA Hand/Off/Auto Switch Function Block
174 HC900 Hybrid Control Designer Function Block Reference Guide Revision 11
2/07
FEEDBACK SIGNAL tab
The feedback signal is used for display purposes.
When the HOA block is used in conjunction with a Device Control (DC) block, the feedback is typically
referenced to the (STI) status output pin of the DC block. The sample text shown in
HTable 55 would
correspond to the states of the DC block.

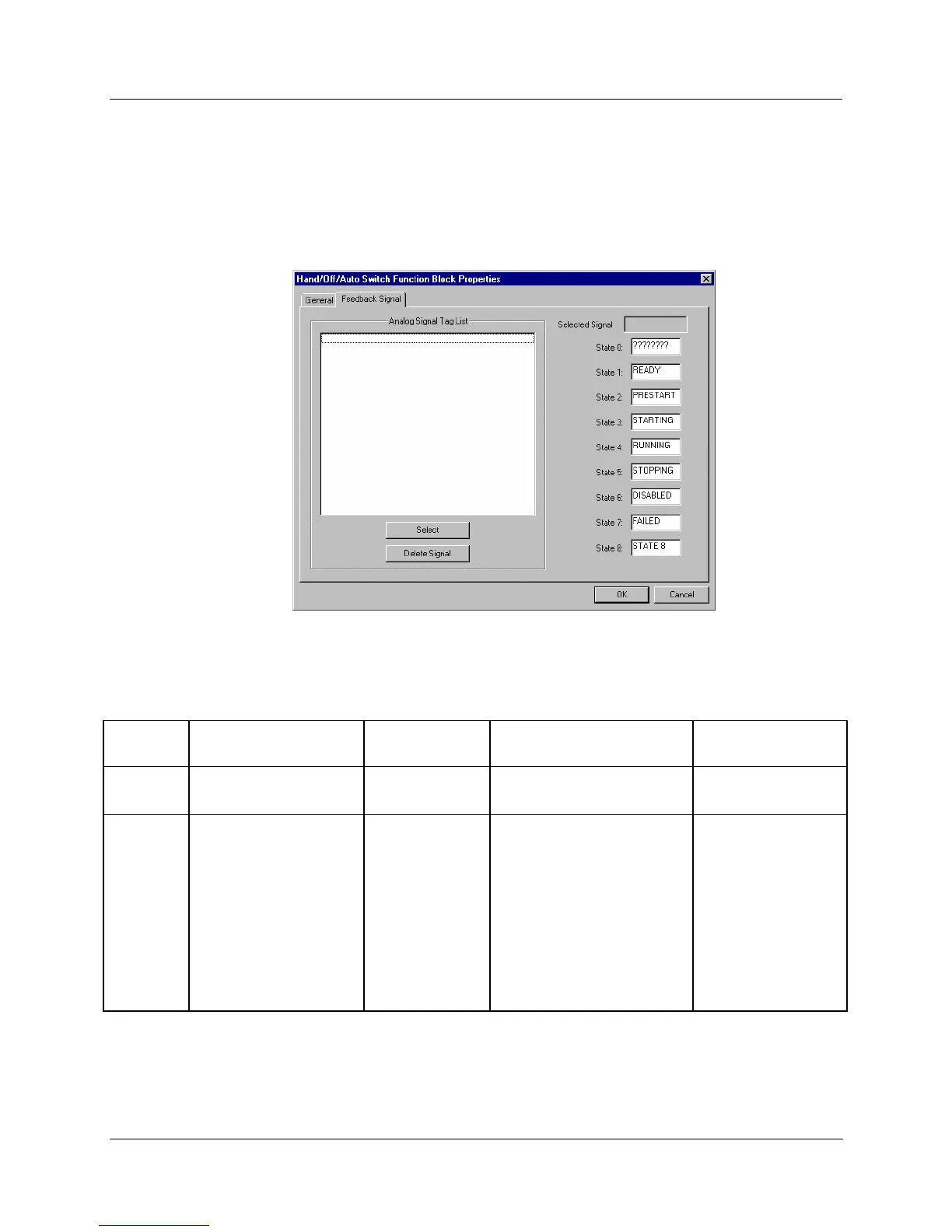

To select a Feedback signal and to define state text for the enumerated value of the feedback signal,
proceed with the sequence 1 through 3 below.
Table 55 HOA feedback signal tab parameters
Sequence
Number
Parameter
Field
Action Selections Comments
1
Analog Signal Tag List
Click on a signal
tag in the list
Select from all configured
Analog Signal tags listed
2
Select/Delete Signal
Click “Select” at
the bottom of
the “Analog
Signal Tag List”
to place
highlighted
signal tag into
the “Selected
Signal” field
The selection is
placed in the
Selected Signal field
on the dialog box.
Click on “Delete
Signal” at the bottom
of the “Analog Signal
Tag List” to remove
a signal tag from
field.
